LG LAEC015-GN2 Drag to turn · 6 views
LGSignage Displays

136 inch All in One LED, 1.56 Pixel Pitchmm, 6,500 Colour Temperature, 160 x 160 Viewing Angle, 98

Part # LAEC015-GN2UPC 195174047361292 lb

  • Pixel Pitch: 1.56 mm
  • Screen Size: 136" (Full HD)
  • Brightness: 500 nit
  • Embedded System Controller
  • Built-in Speaker
  • Dedicated Accessories : Wall Mount, Motorized Stand (Optional)
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

All-in-One LED Screen with Built-in Speaker

The LAEC series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

01

High Performance with webOS

Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.

02

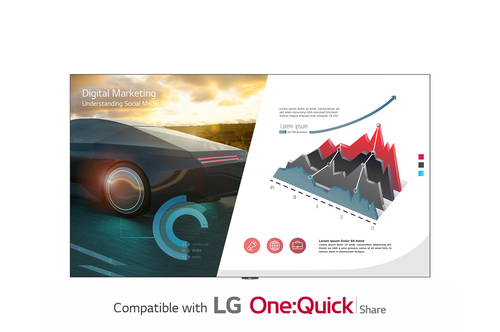

LG’s Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode helps you to display the agenda, note before the meeting starts.

03

Easy Installation

The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

04

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

05

Dedicated Installation Accessories

The product is offered with the flight case which includes every necessary component including the landscape wall mount and tools for installation. The motorized stand is provided as an option, so that you can easily place it depending on your installation sites. With this stand, you can adjust a height of the screen including stand from 2.0 m to 2.5 m.

06

Compatible with AV Control Systems

The LAEC series supports Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

07

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

08

Magic Remote for Easy of Use

With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.

Specifications

Display

Display diagonal
3.45 m (136")
Display technology
LED
Display resolution
1920 x 1080 pixels
Display brightness
500 cd/m²
HD type
Full HD
Contrast ratio (typical)
3000:1
Viewing angle, horizontal
160°
Viewing angle, vertical
160°
Pixel pitch
1.56 x 1.56 mm
Rated lifetime
100000 h
Native refresh rate
2880 Hz

Ports & interfaces

HDMI ports quantity
3
DisplayPorts quantity
1
DisplayPorts in
1
USB port
Yes
USB ports quantity
1
USB version
2.0
USB connector type
USB Type-A
Ethernet LAN (RJ-45) ports
1
RS-232C
Yes
Remote (IR) input
1

Audio

Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
18 W

Design

Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal
Product colour
Black
Mounting type
Wall

Performance

Purpose
Commercial
International Protection (IP) code
IP20

Power

Power consumption (typical)
680 W
AC input voltage
100 - 240 V
AC input frequency
50 / 60 Hz
Heat dissipation
5800 BTU/h

Computer system

Computer system
Yes
Computer system type
System on Chip (SoC)
Built-in processor
Yes
Processor cores
4
Operating system installed
WebOS

Weight & dimensions

Display width
3004 mm
Display depth
36.5 mm
Display height
1692 mm
Display weight
132 kg

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 80%

Certificates

Certification
FCC, ETL, CB

Sensors

Ambient light sensor
Yes

Network

Ethernet LAN
Yes
Wi-Fi
Yes

Features

Video wall controller included
Yes

Technical details

Sustainability compliance
Yes
Compliance certificates
CE, REACH, RoHS
