IPS, M+, 1,200:1 Contrast Ratio, 178 x 178 Viewing Angle, 8ms G to G, 3 Haze, 24/7 Operation Hours

Part # 75XS4P-BUPC 19517409217085 lb

UL Verified Display Anti-discoloration Characteristics
'Resolution : 3,840 x 2,160 (UHD)
'Brightness : 4,000 nit (Typ.), 3,200 nit (Min.)
Portrait / Landscape
Space Efficiency

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Attract Passing Customers with a Bright Display Presented Through a Window

World’s First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world’s first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent ‘screen-yellowing’, while safeguarding display quality and performance stability.

Window-facing Display

LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Brightness Beyond the Window

A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

High-performance with webOS 6.0

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

Remotely Managed, Real-time Mastery (Content Manager)

A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG’s web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Wide Range of Operating Temperature

The XS4P can be used under a wide range of operating temperature from 0℃ to 40℃.

Conformal Coating

The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.

Upgraded Quite Mode

The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.

Professional Content Partners

Pairing the XS4P Series with LG SW solutions would enhance its utilization.

Convenient Installation with Calculated Precision

The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.

Specifications

Display

Panel type: IPS
LED backlight: Yes
LED backlighting type: Direct-LED
Display diagonal: 190.5 cm (75")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 4000 cd/m²
HD type: UHD+
Touchscreen: No
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Panel life: 50000 h
Native refresh rate: 60 Hz
Haze rate: 3%

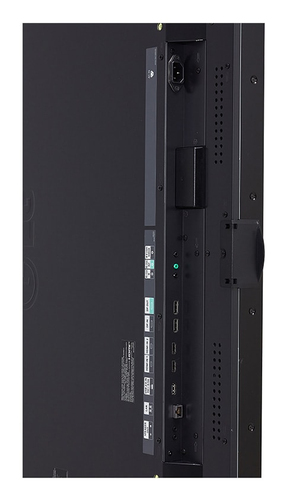

Ports & interfaces

HDMI ports quantity: 2
HDMI input ports quantity: 2
DVI-D ports quantity: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
USB port: Yes
USB ports quantity: 1
USB version: 2.0
USB connector type: USB Type-A
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) out: 1
Number of speaker outputs: 1
RS-232C: Yes
Infrared data port: Yes
Remote (IR) input: 1
Remote (IR) output: 1

Audio

Built-in speaker(s): Yes
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Outdoor
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 600 x 400 mm
Bezel width (side): 1.38 cm
Bezel colour: Black

Performance

Purpose: Retail
On Screen Display (OSD): Yes
Number of OSD languages: 22
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Operating hours (hours/days): 24/7
HDCP: Yes
HDCP version: 1.4/2.2
