LenovoPCs/Workstations
Legion T7 Intel® Core™ i7 i7-13700KF 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4080 Windows 11
- Windows 11 Pro 64-bit
- Intel Core i7-13700KF (30MB Cache)
- NVIDIA GeForce RTX 4080 (16GB GDDR6X)
- 32GB (5600MHz) DDR5-SDRAM (2 x 16) & 1000GB SSD
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Unleash the beast of Legion.

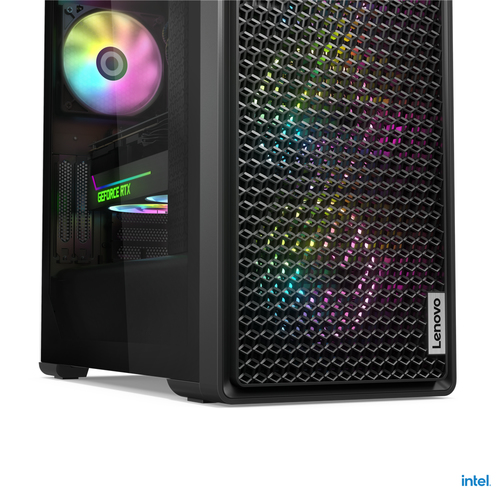

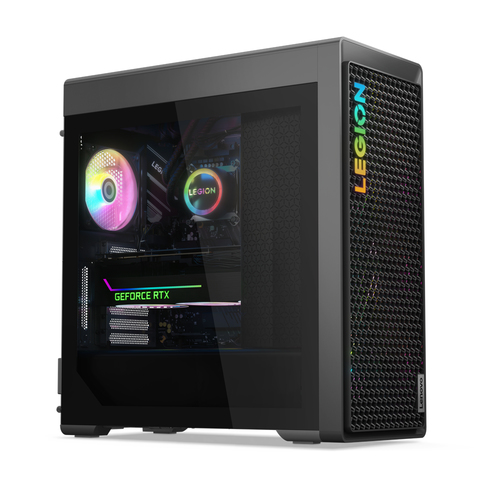

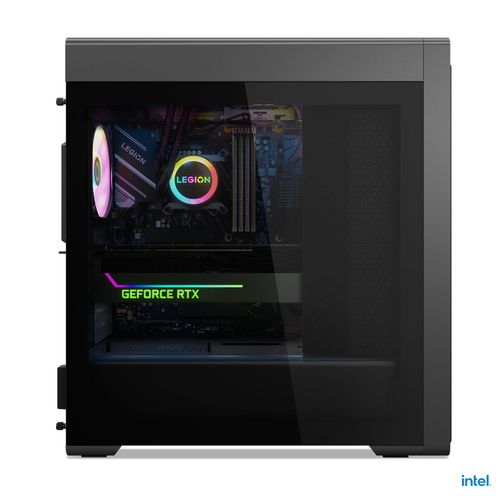

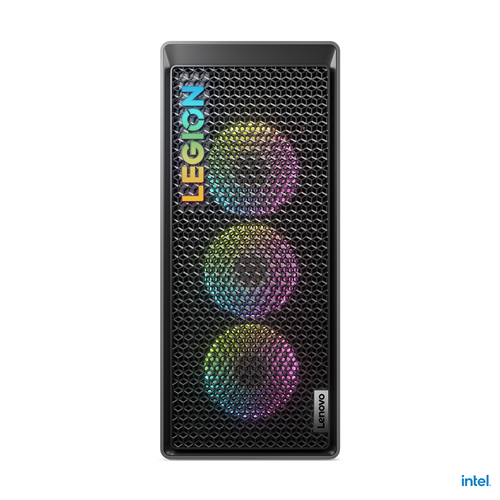

Unleash the beast at the head of the Legion: The Legion Tower 7i, built for extreme power and performance with 13th Gen Intel® Core™ desktop processors and NVIDIA® GeForce RTX™ 40 Series graphics. A larger VRM heatsink, higher Vcore and an enmeshed front bezel enhance airflow and cooling in an all-new chassis design with a toolless glass side panel to show off your shiny internals.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i7
- Processor generation
- 13th gen Intel® Core™ i7
- Processor model
- i7-13700KF
- Processor cores
- 16
- Processor threads
- 24
- Performance cores
- 8
- Efficient cores
- 8
- Performance-core Max Turbo Frequency
- 5.3 GHz
- Efficient-core Max Turbo Frequency
- 4.2 GHz
- Performance-core base frequency
- 3.4 GHz
- Efficient-core base frequency
- 2.5 GHz
- Processor cache
- 30 MB
- Processor cache type
- Smart Cache
- Bus type
- DMI4
Memory
- Internal memory
- 32 GB
- Maximum internal memory
- 128 GB
- Internal memory type
- DDR5-SDRAM
- Memory layout (slots x size)
- 2 x 16 GB
- Memory clock speed
- 5600 MHz
- Memory channels
- Dual-channel
Storage
- Total storage capacity
- 1 TB
- Storage media
- SSD
- Optical drive type
- No
- Number of storage drives installed
- 1
- Total SSDs capacity
- 1 TB
- Number of SSDs installed
- 1
- SSD capacity
- 1 TB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- Card reader integrated
- No
Graphics
- Discrete graphics card
- Yes
- Discrete GPU manufacturer
- NVIDIA
- Discrete graphics card model
- NVIDIA GeForce RTX 4080
- Discrete graphics card memory
- 16 GB
- Discrete graphics memory type
- GDDR6X
- Number of discrete graphics cards
- 1
- Graphics card HDMI ports quantity
- 1
- Graphics card DisplayPorts quantity
- 3
Performance
- Motherboard chipset
- Intel Z790
- Trusted Platform Module (TPM)
- Yes
- Product type
- PC
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 2500 Mbit/s
- LAN controller
- Dragon RTL8125BG
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Antenna type
- 2x2
- Bluetooth
- Yes
- Bluetooth version
- 5.1
Ports & interfaces
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 5.x) slots
- 1
Power
- Power supply
- 850 W
- Power supply input voltage
- 100 - 240 V
Design
- Chassis type
- Tower
- Volume
- 34 L
- Product colour
- Grey
- Viewing window
- Yes
Software
- Operating system architecture
- 64-bit
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
Processor special features
- Intel 64
- Yes
- Enhanced Intel SpeedStep Technology
- Yes
- Embedded options available
- No
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Idle States
- Yes
- Execute Disable Bit
- Yes
- CPU configuration (max)
- 1
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
Display
- Display included
- No
Audio
- Audio chip
- Realtek ALC897
- Audio system
- High Definition Audio
Weight & dimensions
- Width
- 211 mm
- Depth
- 464 mm
- Height
- 494 mm
- Weight
- 17 kg
Packaging data
- Package width
- 318 mm
- Package depth
- 580 mm
- Package height
- 625 mm
- Package weight
- 19 kg
Packaging content
- Mouse included
- Yes
- Keyboard included
- Yes
Certificates
- Compliance certificates
- RoHS
- Certification
- ENERGY STAR 8.0 ErP Lot 3 RoHS compliant
Sustainability
- Sustainability certificates
- ErP
