LenovoPCs/Workstations

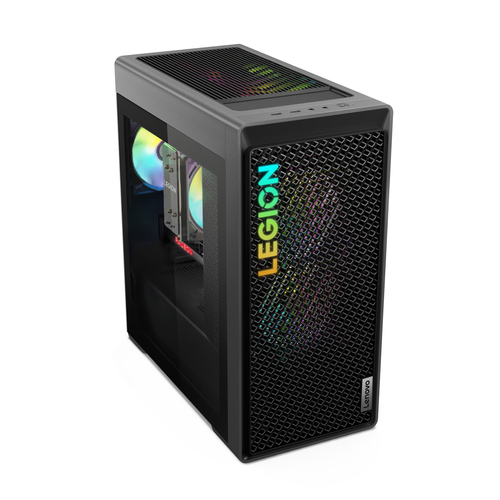

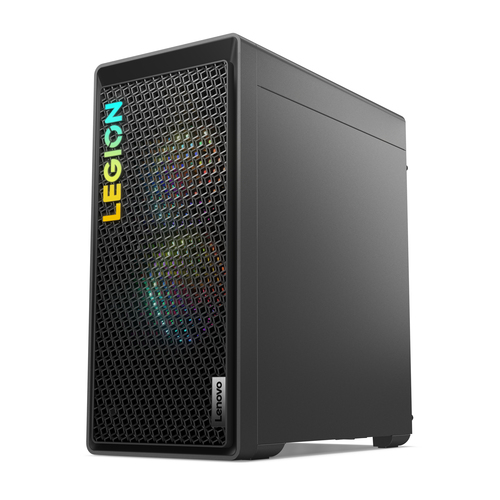

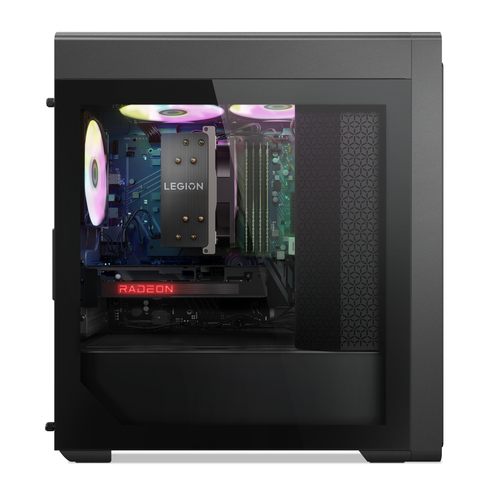

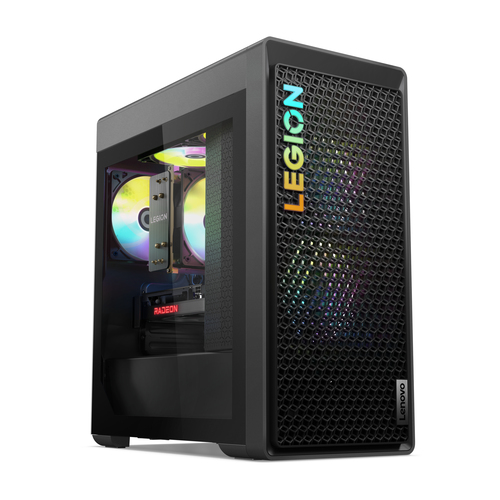

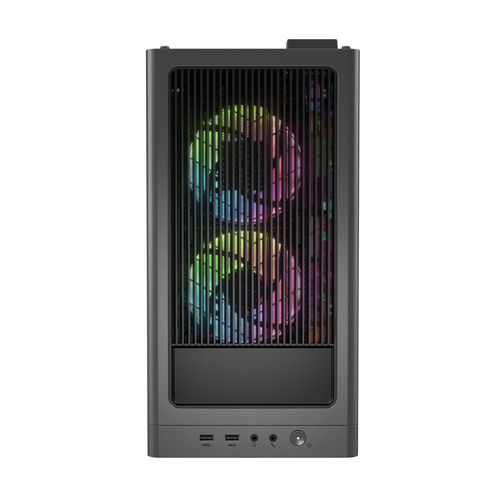

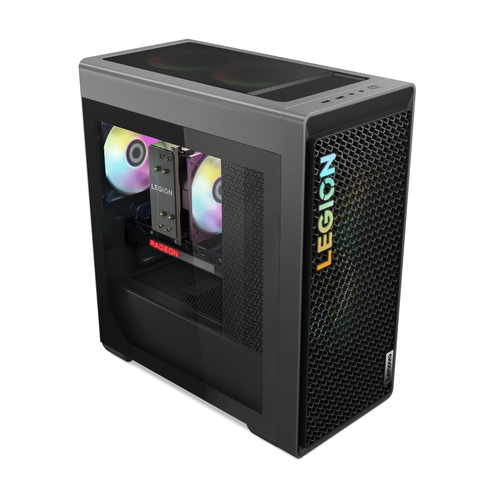

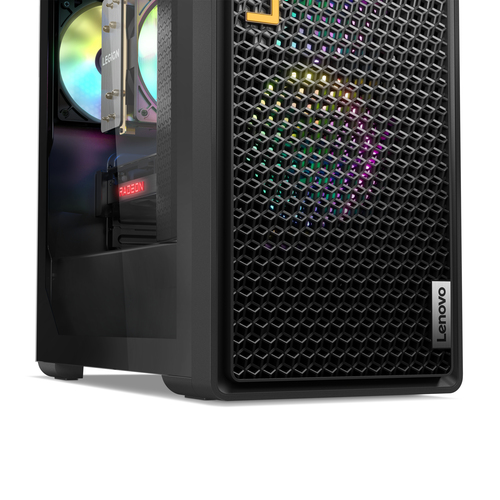

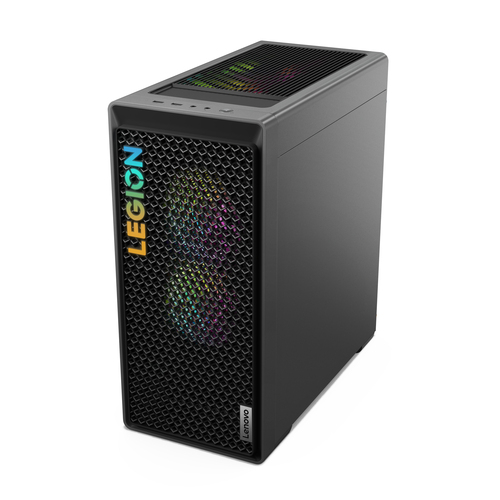

Legion T5 26ARA8 AMD Ryzen™ 7 7700 16 GB DDR5-SDRAM 512 GB SSD AMD Radeon RX 7600 Windows 11 Pro Tower PC Grey
- AMD Ryzen 7 7700 (8C/16T, 3.8/5.3GHz, 8MB L2/32MB L3)
- 2x 8GB UDIMM DDR5-5600
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe
- AMD Radeon RX 7600 8GB
- Windows 11 Pro
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Legion T5 26ARA8 AMD Ryzen 7 7700 8C / 16T, 3.8 / 5.3GHz, 8MB L2 / 32MB L3, 2x 8GB UDIMM DDR55600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe, AMD Radeon RX 7600 8GB GDDR6, Storm Grey, 3Y Legion Ultimate Support with Onsite, Windows 11 Pro, English
Specifications
Processor
- Processor manufacturer
- AMD
- Processor family
- AMD Ryzen™ 7
- Processor model
- 7700
- Processor cores
- 8
- Processor threads
- 16
- Processor boost frequency
- 5.3 GHz
- Processor frequency
- 3.8 GHz
Memory
- Internal memory
- 16 GB
- Maximum internal memory
- 32 GB
- Internal memory type
- DDR5-SDRAM
- Memory layout (slots x size)
- 2 x 8 GB
- Memory slots
- 4x DIMM
- Memory clock speed
- 5600 MHz
Storage
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Optical drive type
- No
- Total SSDs capacity
- 512 GB
- Number of SSDs installed
- 1
- SSD capacity
- 512 GB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
Graphics
- Discrete graphics card
- Yes
- Discrete graphics card model
- AMD Radeon RX 7600
- Discrete graphics card memory
- 8 GB
- Discrete graphics memory type
- GDDR6
- On-board GPU manufacturer
- AMD
Performance
- Motherboard chipset
- AMD B650
- Trusted Platform Module (TPM)
- Yes
- Product type
- PC
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 100,1000 Mbit/s
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Antenna type
- 2x2
- Bluetooth
- Yes
- Bluetooth version
- 5.3
Ports & interfaces
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
Power
- Power supply
- 500 W
Design
- Chassis type
- Tower
- Colour name
- Storm Grey
- Volume
- 26 L
- Product colour
- Grey
Software
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
Audio
- Audio chip
- Realtek ALC897-Q
- Audio system
- High Definition Audio
Weight & dimensions
- Width
- 205 mm
- Depth
- 396.9 mm
- Height
- 425.9 mm
- Weight
- 14 kg
Packaging content
- Mouse included
- Yes
- Mouse connectivity
- Wired
- Keyboard included
- Yes
Certificates
- Certification
- ENERGY STAR,RoHS
Keyboard
- Keyboard connectivity
- Wired
