Home/Catalogue/Lenovo/90UX000QUS
Drag to turn · 14 views
LenovoPCs/Workstations

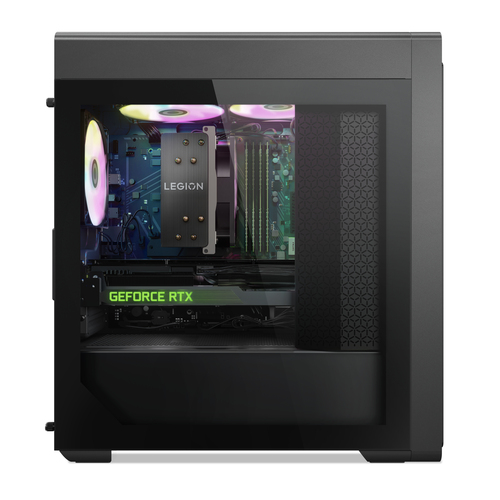

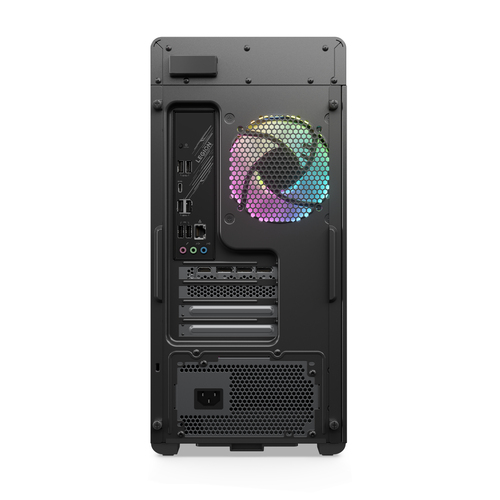

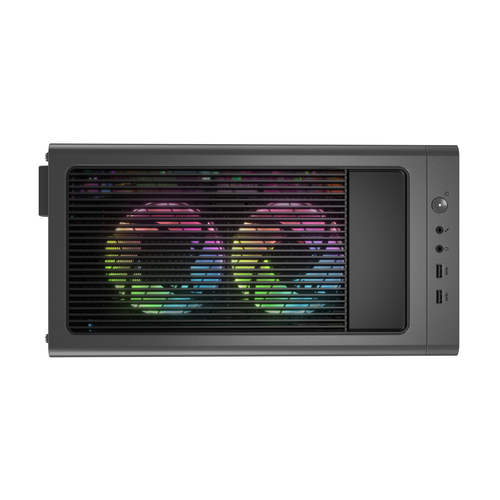

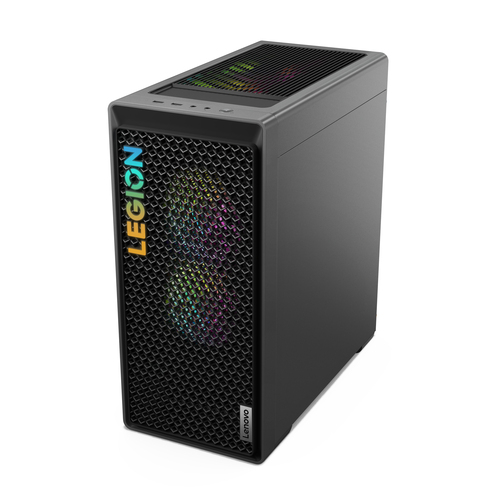

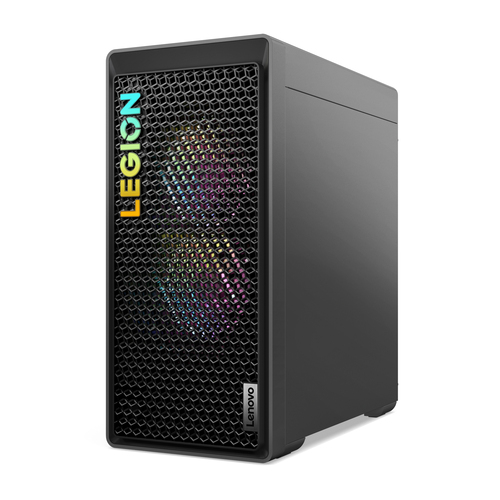

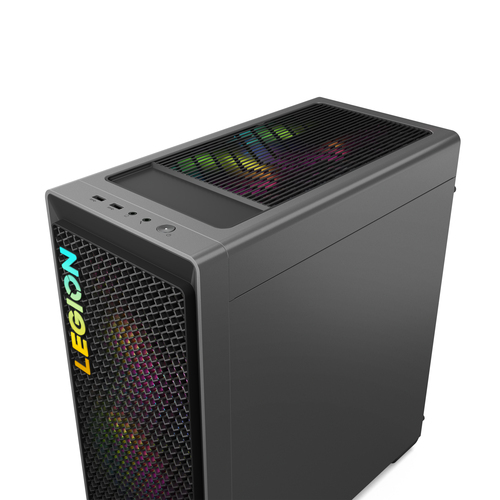

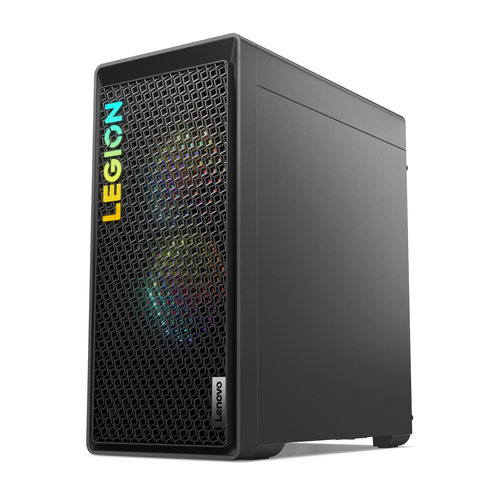

Legion T5 AMD Ryzen™ 7 7700 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4060 Windows 11 Pro Tower PC Grey
- Windows 11 Pro 64-bit
- AMD Ryzen 7 7700 (32MB Cache, 3.8GHz)
- NVIDIA GeForce RTX 4060 (8GB GDDR6)
- 16GB (5600MHz) DDR5-SDRAM (2 x 8) & 1000GB SSD
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Lenovo Legion T5 26ARA8, AMD Ryzen 7 7700 3.80 GHz, 8 MB, Windows 11 Pro 64, 16.0GB, 1x1TB SSD M.2 2280 PCIe Gen4 Performance TLC, Storm Grey, NVIDIA GeForce RTX 4060 8GB, BT 5.1 or above, WiFi 6E 2x2 AX, 3Y Legion Sup
Specifications
Processor
- Processor manufacturer
- AMD
- Processor family
- AMD Ryzen™ 7
- Processor generation
- AMD Ryzen 7000 Series
- Processor model
- 7700
- Processor cores
- 8
- Processor threads
- 16
- Processor boost frequency
- 5.3 GHz
- Processor frequency
- 3.8 GHz
- Processor cache
- 32 MB
- Processor cache type
- L3
Memory
- Internal memory
- 16 GB
- Maximum internal memory
- 32 GB
- Internal memory type
- DDR5-SDRAM
- Memory layout (slots x size)
- 2 x 8 GB
- Memory slots
- 4x DIMM
- Memory clock speed
- 5600 MHz
- Non-ECC
- Yes
- Memory channels
- Dual-channel
Storage
- Total storage capacity
- 1 TB
- Storage media
- SSD
- Optical drive type
- No
- Number of storage drives installed
- 1
- Total SSDs capacity
- 1 TB
- Number of SSDs installed
- 1
- SSD capacity
- 1 TB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- Card reader integrated
- No
Graphics
- Discrete graphics card
- Yes
- Discrete GPU manufacturer
- NVIDIA
- On-board graphics card
- Yes
- Discrete graphics card model
- NVIDIA GeForce RTX 4060
- Discrete graphics card memory
- 8 GB
- Discrete graphics memory type
- GDDR6
- Number of discrete graphics cards
- 1
- On-board graphics card model
- AMD Radeon Graphics
- Graphics card HDMI ports quantity
- 1
- Graphics card DisplayPorts quantity
- 3
Performance
- Motherboard chipset
- AMD B650
- Password protection
- Yes
- Password protection type
- Power on, Supervisor
- Trusted Platform Module (TPM)
- Yes
- Product type
- PC
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 100,1000,2500 Mbit/s
- Cabling technology
- 10/100/1000Base-T(X)
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Antenna type
- 2x2
- Bluetooth
- Yes
- Bluetooth version
- 5.3
Ports & interfaces
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Headphone outputs
- 1
- Line-out
- Yes
- Line-in
- Yes
- Microphone in
- Yes
Power
- Power supply
- 500 W
- Power supply input voltage
- 100 - 240 V
- Power supply input frequency
- 50 - 60 Hz
Design
- Chassis type
- Tower
- Colour name
- Storm Grey
- Volume
- 26 L
- Placement supported
- Vertical
- Product colour
- Grey
Software
- Operating system architecture
- 64-bit
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
Display
- Display included
- No
Audio
- Audio chip
- Realtek ALC897-Q
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating altitude
- -15.2 - 3048 m
- Non-operating altitude
- -15.2 - 12192 m
Weight & dimensions
- Width
- 205 mm
- Depth
- 396.9 mm
- Height
- 425.9 mm
- Weight
- 14 kg
Packaging data
- Package width
- 325 mm
- Package depth
- 502 mm
- Package height
- 580 mm
- Package weight
- 16 kg
Packaging content
- Mouse included
- Yes
- Keyboard included
- Yes
Certificates
- Certification
- ENERGY STAR 8.0 ErP Lot 3 RoHS compliant
