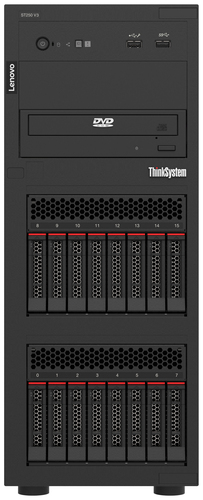

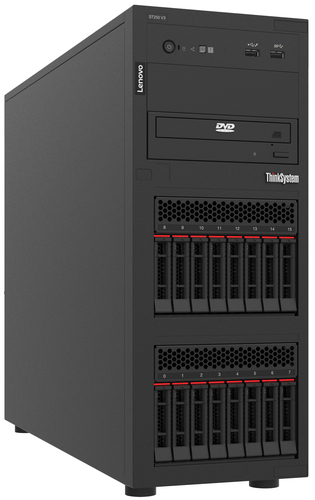

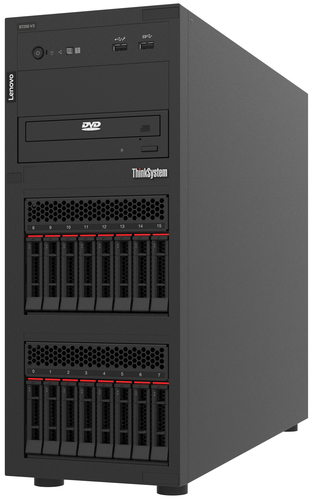

ThinkSystem ST250 V3 server Tower Intel Xeon E E-2434 3.4 GHz 16 GB DDR5-SDRAM 300 W
- Intel Xeon E-2434 (12MB Cache, 3.4GHz)
- 16GB (4800MHz) DDR5-SDRAM (1 x 16)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".
This product guide provides essential presales information to understand the ThinkSystem ST250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V3 and consider its use in IT solutions.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Xeon E
- Processor model
- E-2434
- Processor frequency
- 3.4 GHz
- Processor boost frequency
- 5 GHz
- Performance cores
- 4
- Processor cores
- 4
- Processor cache
- 12 MB
Memory
- Internal memory
- 16 GB
- Internal memory type
- DDR5-SDRAM
- Memory slots
- 4x DIMM
- ECC
- Yes
- Memory clock speed
- 4800 MHz
- Memory layout (slots x size)
- 1 x 16 GB
- Maximum internal memory
- 128 GB
Storage
- Hot-swap
- Yes
- Internal drive bays
- 8
- Supported storage drive interfaces
- SAS, Serial ATA
Graphics
- On-board graphics card
- Yes
- Maximum graphics card memory
- 16 MB
Network
- LAN controller
- Broadcom BCM5720
- Ethernet LAN
- Yes
- Cabling technology
- 10/100/1000Base-T(X)
- Ethernet interface type
- Gigabit Ethernet
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- USB 2.0 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 5
- VGA (D-Sub) ports quantity
- 1
- Serial ports quantity
- 1
Design
- Chassis type
- Tower
- Product colour
- Black
Performance
- Performance management
- XClarity Standard
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
Software
- Compatible operating systems
- Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi
Power
- Redundant power supply (RPS) support
- Yes
- Power supply
- 300 W
- Power supply input voltage
- 100 - 240 V
- Power supply input frequency
- 50/60 Hz
Operational conditions
- Operating temperature (T-T)
- 5 - 45 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 8 - 90%
- Storage relative humidity (H-H)
- 8 - 90%
- Operating altitude
- 0 - 3050 m
Weight & dimensions
- Width
- 176 mm
- Depth
- 578 mm
- Height
- 444 mm
Technical details
- Supported storage drives form factor (rear)
- 2.5"
