Home/Catalogue/Lenovo/30F30018US
Drag to turn · 9 views
LenovoPCs/Workstations

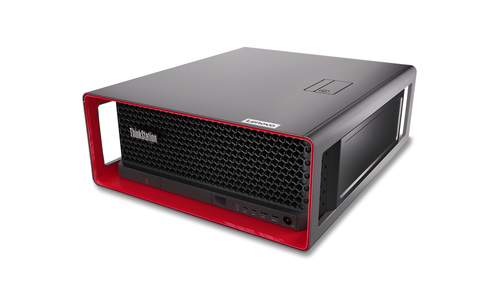

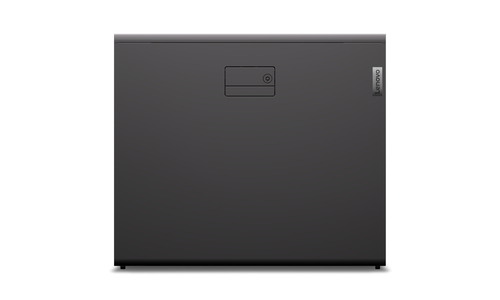

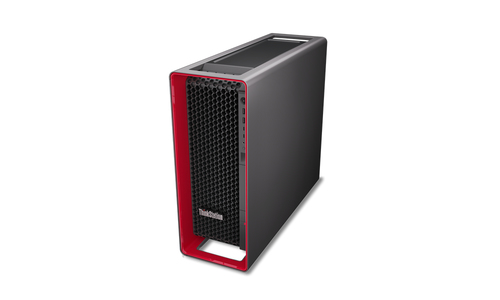

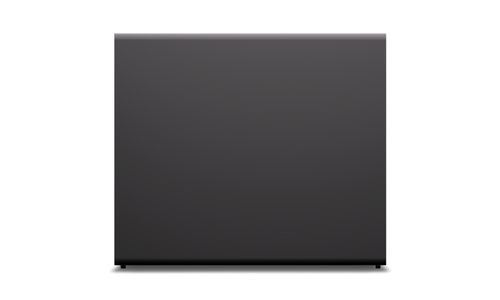

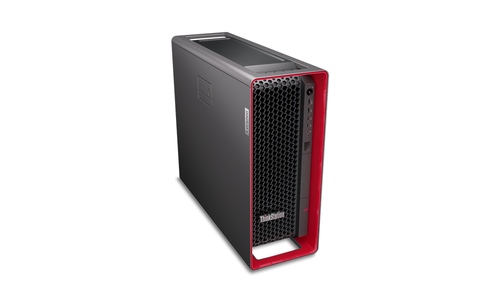

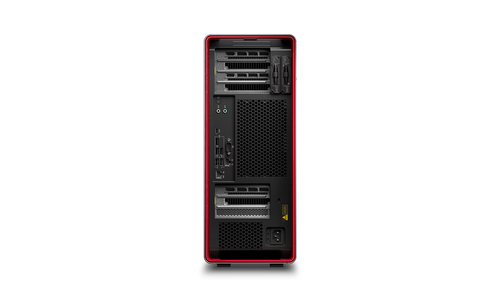

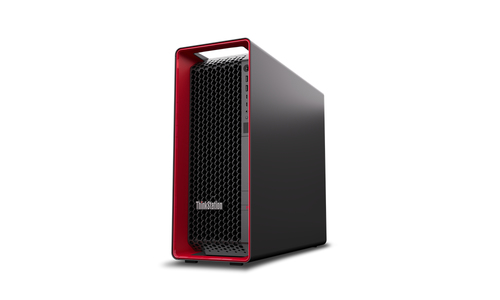

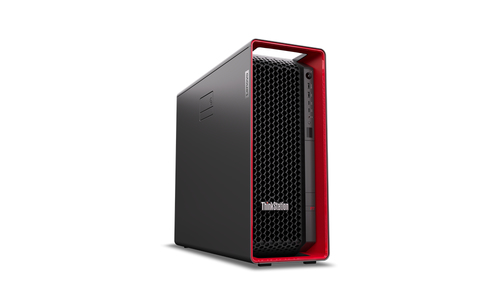

ThinkStation P7 Intel Xeon W w5-3433 32 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX A4500 Windows 11 Pro
- Windows 11 Pro for Workstations 64-bit
- Intel Xeon w5-3433 (45MB Cache, 2GHz)
- NVIDIA RTX A4500 (20GB GDDR6)
- 32GB (4800MHz) DDR5-SDRAM (2 x 16) & 512GB SSD
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Xeon W
- Processor model
- w5-3433
- Processor cores
- 16
- Processor threads
- 32
- Processor frequency
- 2 GHz
- Performance cores
- 16
- Performance-core Max Turbo Frequency
- 4.2 GHz
- Performance-core base frequency
- 2 GHz
- Processor cache
- 45 MB
- Processor cache type
- L3
Memory
- Internal memory
- 32 GB
- Maximum internal memory
- 1 TB
- Internal memory type
- DDR5-SDRAM
- Memory layout (slots x size)
- 2 x 16 GB
- Memory slots
- 8x DIMM
- Memory clock speed
- 4800 MHz
- ECC
- Yes
- Memory channels
- Octa-channel
Storage
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Optical drive type
- No
- Number of storage drives installed
- 1
- Total SSDs capacity
- 512 GB
- Number of SSDs installed
- 1
- SSD capacity
- 512 GB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- Card reader integrated
- Yes
Graphics
- Discrete graphics card
- Yes
- On-board graphics card
- No
- Discrete graphics card model
- NVIDIA RTX A4500
- Discrete graphics card memory
- 20 GB
- Discrete graphics memory type
- GDDR6
- Number of discrete graphics cards
- 1
- On-board graphics card model
- Not available
- Graphics card DisplayPorts quantity
- 4
Performance
- Motherboard chipset
- Intel W790
- Password protection
- Yes
- Password protection type
- Power on, Supervisor
- BIOS type
- UEFI
- Trusted Platform Module (TPM)
- Yes
- Product type
- Workstation
- Built-in speaker(s)
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,1000,100,10000 Mbit/s
- LAN controller
- Intel® I219-LM, Marvell AQtion AQC113C
- Wi-Fi
- No
- Bluetooth
- No
Ports & interfaces
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- Combo headphone/mic port
- Yes
- Line-out
- Yes
- Line-in
- Yes
Power
- Power supply
- 1400 W
- 80 PLUS certification
- 80 PLUS Platinum
Design
- Chassis type
- Tower
- Volume
- 39 L
- Placement supported
- Horizontal/Vertical
- Product colour
- Black, Red
Software
- Operating system architecture
- 64-bit
- Operating system language
- English
- Operating system installed
- Windows 11 Pro for Workstations
Display
- Display included
- No
Audio
- Audio chip
- Realtek ALC897-Q
- Number of speakers
- 1
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 12192 m
Weight & dimensions
- Width
- 175 mm
- Depth
- 508 mm
- Height
- 440.4 mm
- Weight
- 24.5 kg
Packaging content
- Mouse included
- Yes
- Keyboard included
- Yes
Certificates
- Compliance certificates
- RoHS
- Certification
- ISV
Sustainability
- Sustainability certificates
- ENERGY STAR, EPEAT Gold, TCO
