ThinkStation PX Intel Xeon Silver 4416+ 128 GB DDR5-SDRAM 1 TB SSD NVIDIA T400 Windows 11 Pro for
- Windows 11 Pro for Workstations 64-bit
- 2 x Intel Xeon Silver 4416+ (37.5MB Cache, 2GHz)
- NVIDIA T400 (4GB GDDR6)
- 128GB (4800MHz) DDR5-SDRAM (8 x 16) & 1000GB SSD
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

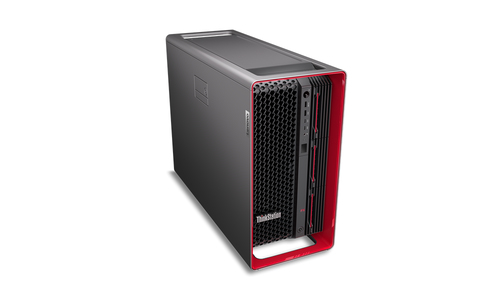

Iconic chassis, co-designed with Aston Martin

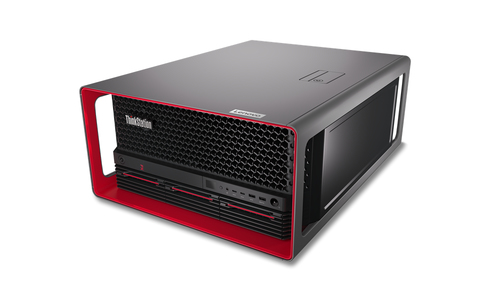

The Lenovo ThinkStation PX breaks the mold when it comes to workstations. Co-designed with Aston Martin, masters of racing car design and aerodynamics, the PX introduces an iconic, modular build that offers more accessibility than ever before. Comprising a stylish chassis with eye-catching red components, an enhanced thermal architecture for maximum performance, and rack-optimization flexibility, the PX is the pinnacle of Lenovo workstation technology
Redefining the art of what’s possible
Bridging the gap where previous solutions have fallen short, the ThinkStation PX sets a new standard in workstation capabilities. It’s packed with ultra-high-end features, including the latest Intel® Xeon® scalable dual processors and support for up to four optional NVIDIA® RTX™ discrete graphics cards, plus heaps of high-speed DDR5 memory and PCIe storage. The result? A workstation that goes beyond the limits of desktop performance to power even the most extreme workloads.
Unravels even the most complex workflows
Whether it's sat deskside or in the data center, the ThinkStation PX workstation enables professionals across any industry to vastly improve and expand their workflows. It zips through everything, from real-time rendering and virtual production to machine and deep learning to powering virtual workstations and metaverse exploration. And with an extensive list of ISV-certified applications, you can rest assured that your most complex projects can be executed with ease.
See the complete list of ISV certifications.
Designed with the future in mind
The ThinkStation PX boasts an innovative modular design with front access hot-swap* drives that require no tools to modify, upgrade, or expand. It also has the option of a dual redundant power supply to mitigate the risk of downtime when running mission-critical applications. In addition, supporting Lenovo’s goal to reach net-zero emissions, this workstation is EPEAT Gold registered, ensuring it was manufactured to the highest environmental standards. It also comes with a USB mouse and keyboard.
*Available summer 2023. Front access M.2 PCIe SSD hot-swap requires VROC module.
It's got your back
The ThinkStation PX workstation comes with ThinkShield—a suite of essential hardware and software security solutions that work together to safeguard both your workstation and your data. It includes the Trusted Platform Module (TPM) to encrypt your data, plus various programs to prevent unauthorized access to the BIOS—and even self-heal the BIOS should it become corrupt or is maliciously attacked. In addition, the PX supports Windows firmware updates for extra peace of mind.
Specifications may vary depending upon region / model.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Xeon Silver
- Processor generation
- Intel Xeon Scalable 4th Gen
- Processor model
- 4416+
- Processor cores
- 20
- Processor threads
- 40
- Processor boost frequency
- 3.9 GHz
- Processor frequency
- 2 GHz
- Processor cache
- 37.5 MB
- Number of processors installed
- 2
Memory
- Internal memory
- 128 GB
- Maximum internal memory
- 2 TB
- Internal memory type
- DDR5-SDRAM
- Memory layout (slots x size)
- 8 x 16 GB
- Memory slots
- 16x DIMM
- Memory clock speed
- 4800 MHz
- ECC
- Yes
Storage
- Total storage capacity
- 1 TB
- Storage media
- SSD
- Optical drive type
- No
- Number of storage drives installed
- 1
- Total SSDs capacity
- 1 TB
- Number of SSDs installed
- 1
- SSD capacity
- 1 TB
- SSD memory type
- TLC
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
Graphics
- Discrete graphics card
- Yes
- Discrete GPU manufacturer
- NVIDIA
- On-board graphics card
- No
- Discrete graphics card model
- NVIDIA T400
- Discrete graphics card memory
- 4 GB
- Discrete graphics memory type
- GDDR6
- Number of discrete graphics cards
- 1
- On-board graphics card model
- Not available
- Graphics card DisplayPorts quantity
- 4
- Graphics card Mini DisplayPort ports quantity
- 3
Performance
- Motherboard chipset
- Intel C741
- Password protection
- Yes
- Password protection type
- BIOS, Power on
- Trusted Platform Module (TPM)
- Yes
- Product type
- Workstation
- Built-in speaker(s)
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 1000,10000 Mbit/s
- Cabling technology
- 10/100/1000Base-T(X)
- Wi-Fi
- No
Ports & interfaces
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 2
- Combo headphone/mic port
- Yes
- Line-out
- Yes
- Line-in
- Yes
Power
- Power supply
- 1850 W
- 80 PLUS certification
- 80 PLUS Platinum
Design
- Chassis type
- Tower
- Volume
- 54 L
- Placement supported
- Horizontal/Vertical
- Product colour
- Black, Red
Software
- Operating system architecture
- 64-bit
- Operating system language
- English
- Operating system installed
- Windows 11 Pro for Workstations
Display
- Display included
- No
Audio
- Audio chip
- Realtek ALC897-Q
- Number of speakers
- 1
Operational conditions
- Operating temperature (T-T)
- 10 - 35 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 12192 m
Weight & dimensions
- Width
- 220 mm
- Depth
- 575 mm
- Height
- 440.4 mm
- Weight
- 35.6 kg
Packaging content
- Mouse included
- Yes
- Keyboard included
- Yes
Certificates
- Compliance certificates
- RoHS
- Certification
- ISV Certifications
Sustainability
- Sustainability certificates
- TCO
