LenovoLaptops

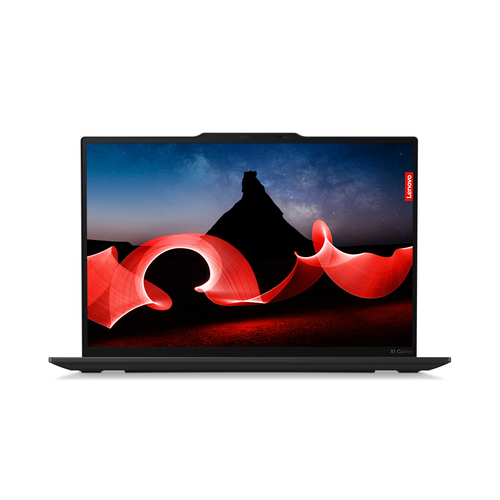

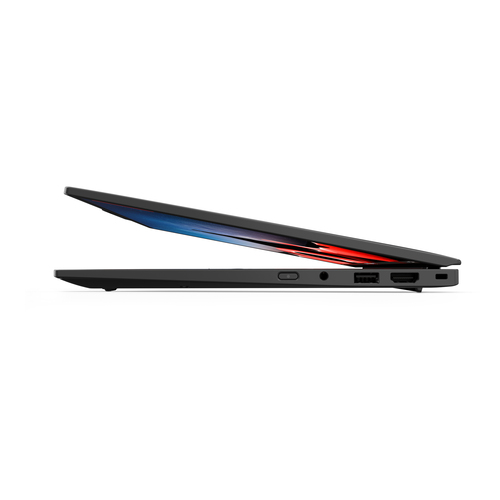

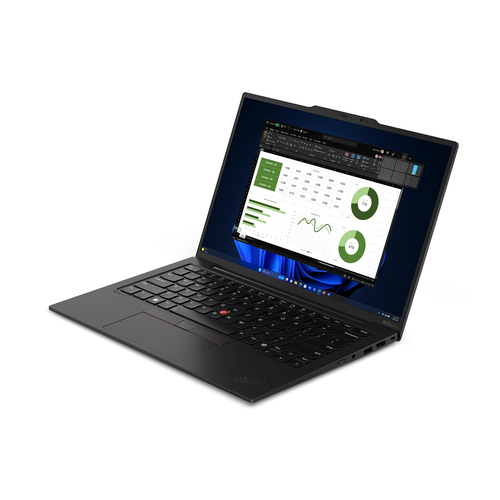

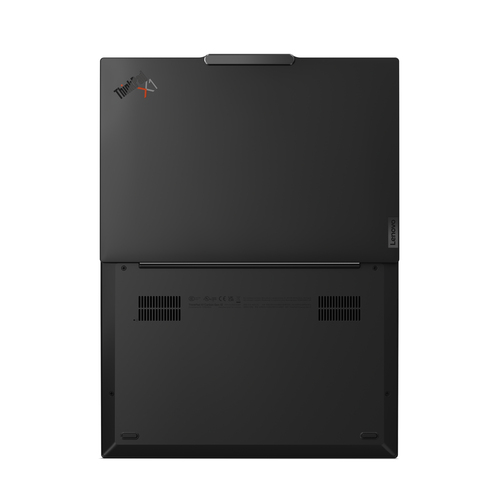

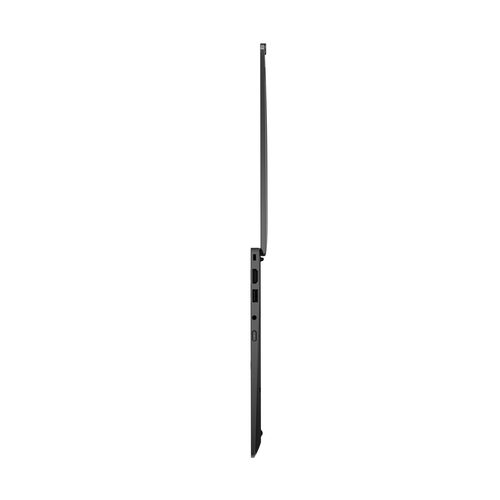

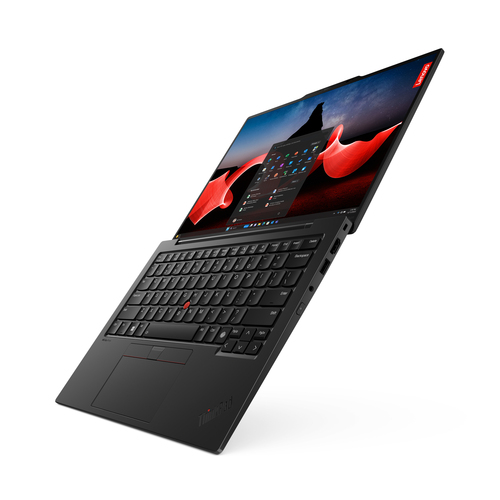

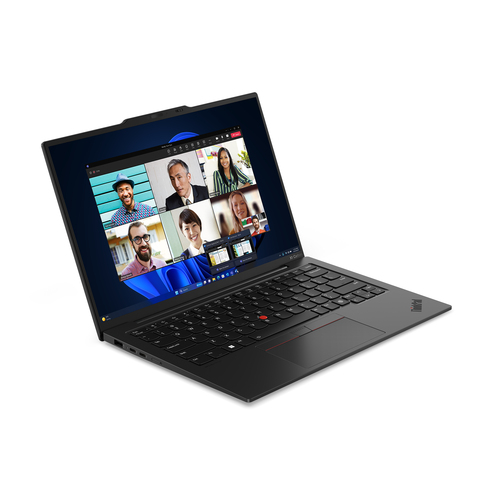

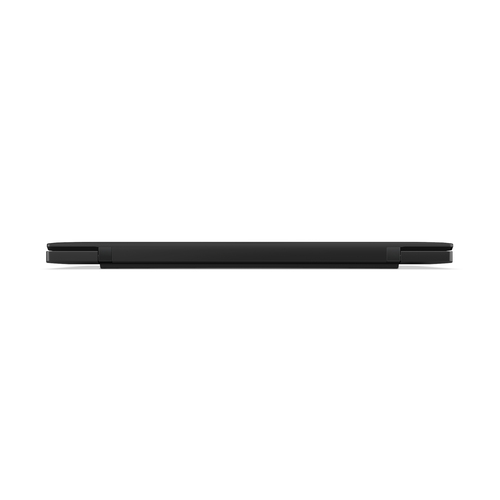

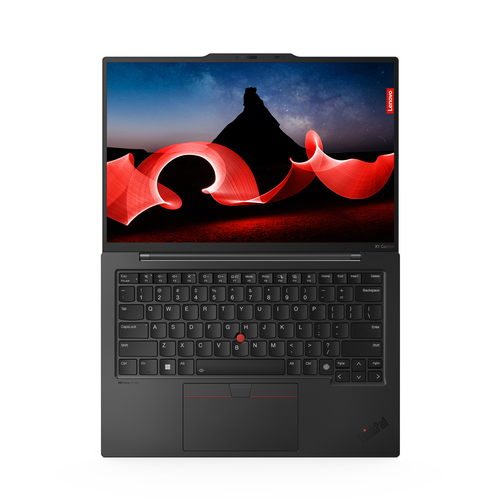

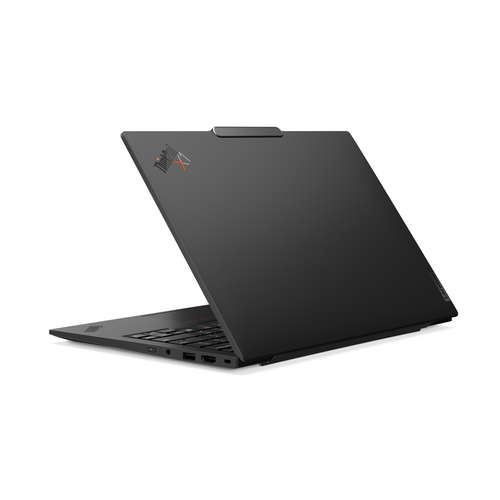

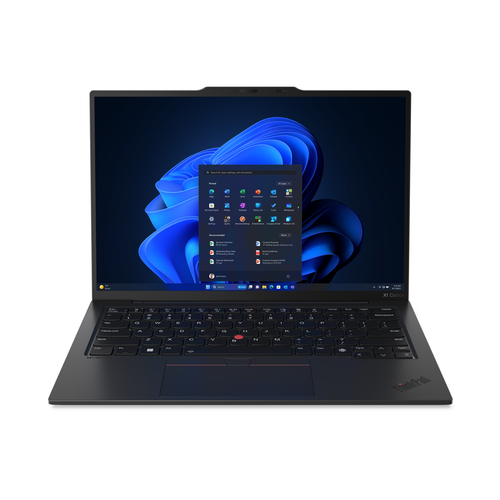

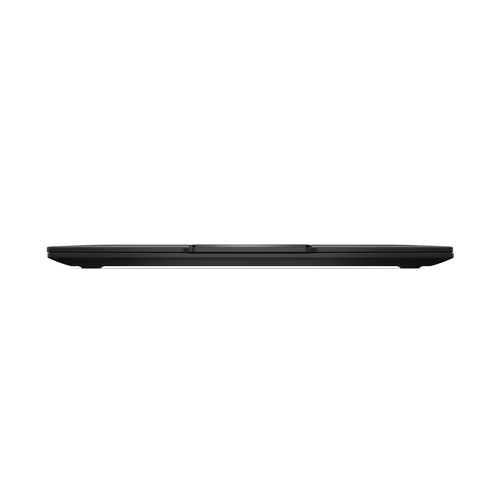

ThinkPad X1 Carbon Gen 12 Intel Core Ultra 5 135U Laptop 35.6 cm (14") Touchscreen WUXGA 16 GB
- AI PC, world’s first laptop powered by Intel® Core™ Ultra processor
- Up to Intel® Core™ Ultra 7 165H
- Up to Windows® 11 Pro
- Up to 64GB LPDDR5x-6400, soldered
- Up to 1x 2TB M.2 PCIe® NVMe® SSD
- Up to 14" (2880x1800) OLED, 400nits, 100% DCI-P3, Eyesafe®
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
ThinkPad X1 Carbon Gen 12
Introducing the next-gen ThinkPad X1 Carbon - featuring powerful Intel® Core™ Ultra processors, designed to enhance graphics performance and elevate AI capabilities. Compared to its predecessors, integrated Intel® Arc Graphics deliver 2x performance boost, ensuring seamless workflows, enriched visual experience, and maximum encoding speed without any slowdown. Experience optimized performance with 40% lower SoC power consumption, leading to more productivity on a single charge with a 57 Whr battery, and a cooler, quieter PC during extended work sessions.
Specifications
Design
- Colour name
- Black, Paint
- Product type
- Laptop
- Product colour
- Black
- Form factor
- Clamshell
- Housing material
- Aluminium, Carbon fibre
Display
- Display diagonal
- 35.6 cm (14")
- Display resolution
- 1920 x 1200 pixels
- Touchscreen
- Yes
- HD type
- WUXGA
- Panel type
- IPS
- Native aspect ratio
- 16:10
- Anti-glare screen
- Yes
- Display brightness
- 400 cd/m²
- RGB colour space
- sRGB
- Colour gamut
- 100%
- Maximum refresh rate
- 60 Hz
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Core Ultra 5
- Processor generation
- Intel® Core™ Ultra (Series 1)
- Processor model
- 135U
- Processor cores
- 12
- Processor threads
- 14
- Processor boost frequency
- 4.4 GHz
- Performance cores
- 2
- Efficient cores
- 8
- Low Power Efficient-cores
- 2
- Performance-core Max Turbo Frequency
- 4.4 GHz
- Efficient-core Max Turbo Frequency
- 3.6 GHz
- Low Power Efficient-core Max Turbo Frequency
- 2.1 GHz
- Performance-core base frequency
- 1.6 GHz
- Efficient-core base frequency
- 1.1 GHz
- Low Power Efficient-core Base Frequency
- 700 MHz
- Processor cache
- 12 MB
- Processor cache type
- Smart Cache
- Processor base power
- 15 W
- Maximum turbo power
- 57 W
Neural processor unit (NPU)
- Neural processor unit (NPU)
- Intel AI Boost
- Sparsity support
- Yes
- Windows Studio effects support
- Yes
- AI software frameworks supported by NPU
- DirectML, ONNX RT, OpenVINO, Windows ML
Memory
- Internal memory
- 16 GB
- Internal memory type
- LPDDR5x-SDRAM
- Memory clock speed
- 6400 MHz
- Memory form factor
- On-board
- Maximum internal memory
- 16 GB
Storage
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Total SSDs capacity
- 512 GB
- Number of SSDs installed
- 1
- SSD capacity
- 512 GB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- M.2 SSD size
- 2280 (22 x 80 mm)
- Optical drive type
- No
- Card reader integrated
- No
Graphics
- Discrete graphics card model
- Not available
- On-board graphics card
- Yes
- On-board GPU manufacturer
- Intel
- Discrete graphics card
- No
- On-board graphics card family
- Intel® Graphics
- On-board graphics card model
- Intel® Graphics
Audio
- Audio chip
- Realtek ALC3306
- Audio system
- High Definition Audio
- Number of built-in speakers
- 2
- Speaker power
- 2 W
- Built-in microphone
- Yes
- Number of microphones
- 2
Camera
- Front camera
- Yes
- Front camera resolution
- 1920 x 1080 pixels
- Front camera HD type
- Full HD
- Infrared (IR) camera
- Yes
- Privacy camera
- Yes
- Privacy type
- Privacy shutter
Network
- Mobile network generation
- 4G
- 4G standard
- LTE
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Mobile network connection
- Yes
- Antenna type
- 2x2
- WLAN controller model
- Intel Wi-Fi 6E AX211
- WLAN controller manufacturer
- Intel
- Bluetooth
- Yes
- Bluetooth version
- 5.3
- WWAN
- Installed
- WWAN controller
- Quectel EM160R-GL

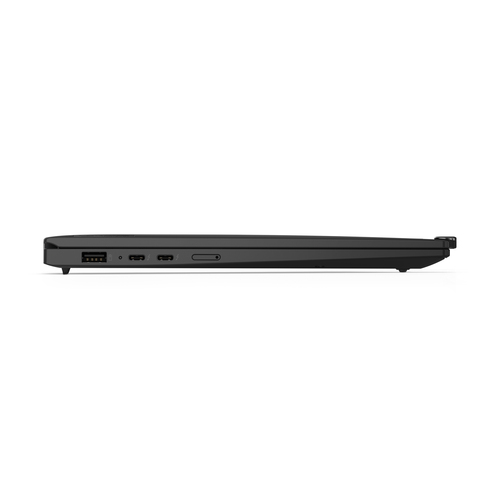

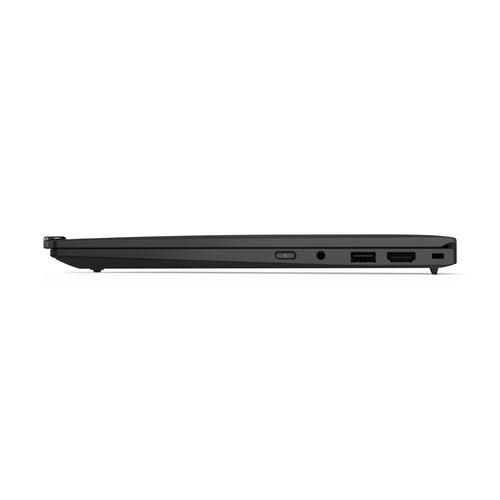

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Intel® Thunderbolt 4
- Yes
- Combo headphone/mic port
- Yes
- USB Type-C DisplayPort Alternate Mode
- Yes
- USB Sleep-and-Charge
- Yes
Performance
- Motherboard chipset
- Intel SoC
Keyboard
- Pointing device
- Trackpad
- Numeric keypad
- No
- Keyboard backlit
- Yes
- Spill-resistant keyboard
- Yes
- Keyboard layout
- QWERTY
- Keyboard language
- English
Software
- Operating system architecture
- 64-bit
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
Battery
- Battery technology
- Lithium Polymer (LiPo)
- Battery capacity
- 57 Wh
Power
- AC adapter power
- 65 W
- AC adapter frequency
- 50/60 Hz
- AC adapter input voltage
- 100 - 240 V
- USB Type-C charging port
- Yes
Security
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Fingerprint reader
- Yes
- Smart card reader
- No
- Windows Hello
- Yes
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
- Password protection
- Yes
- Password protection type
- BIOS, SSD, Supervisor, User
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- 5 - 43 °C
- Operating relative humidity (H-H)
- 8 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Maximum shipping altitude
- 3048 m
Certificates
- Compliance certificates
- RoHS
Sustainability
- Sustainability certificates
- ENERGY STAR, EPEAT Gold, ErP, TCO
Weight & dimensions
- Width
- 312.8 mm
- Depth
- 214.8 mm
- Height
- 15 mm
- Weight
- 1.08 kg
Packaging content
- AC adapter included
- Yes
