ThinkPad X1 Fold 16 Gen 1 Intel® Core™ i7 i7-1260U Hybrid (2-in-1) 41.4 cm (16.3") Touchscreen 32
- Windows 11 Pro
- Intel Core i7-1260U (12MB Cache)
- 41.4 cm (16.3") 2560 x 2024 OLED Touch
- 32GB (5200MHz) LPDDR5-SDRAM & 1000GB SSD
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
See what unfolds next

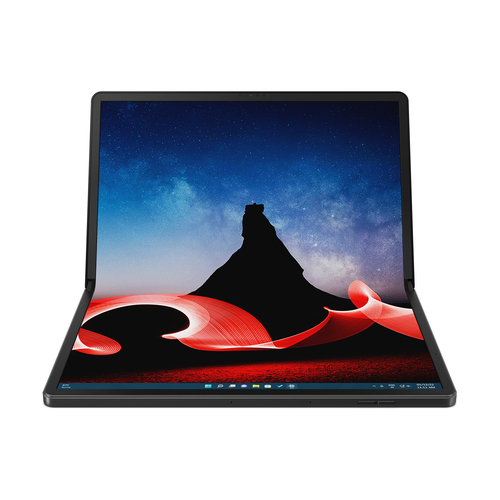

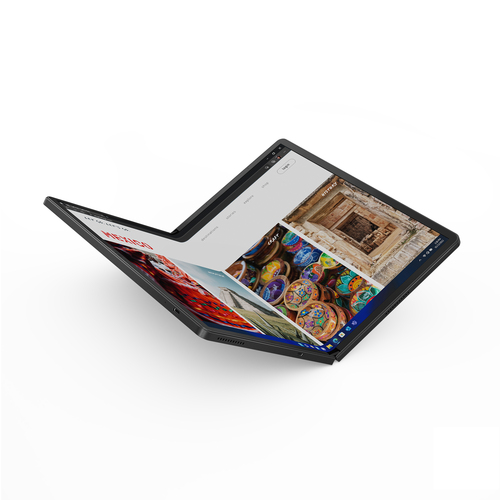

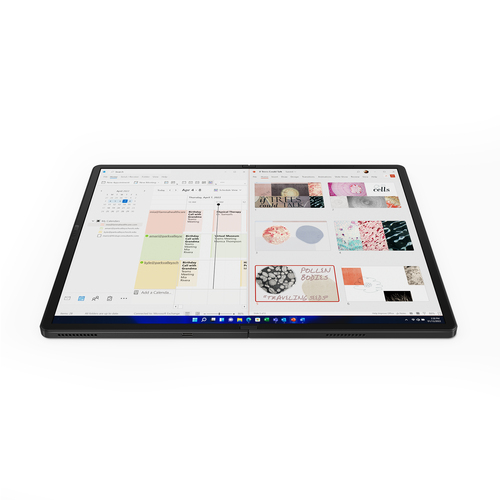

The next-gen, lightweight Lenovo ThinkPad X1 Fold transforms with you as you power through your day. With a massive 16.3″ display, you can attach it in landscape or portrait mode to the optional full-sized keyboard with kickstand and tackle whatever tasks await. Or fold it for two side-by-side displays. Laptop. Tablet. Book. Newspaper. Sketchpad. Entertainment center.
Big power, grab-&-go size
Full performance with up to Intel vPro® platform with Windows 11 delivers the power to tackle whatever tasks arise throughout your day. The latest LPDDR5 memory, and lots of it, ensures speedy system responsiveness and multitasking. And with such a lightweight chassis and all-day-plus battery life, you’ll want to take the X1 Fold everywhere you go.
Watch your ideas take shape

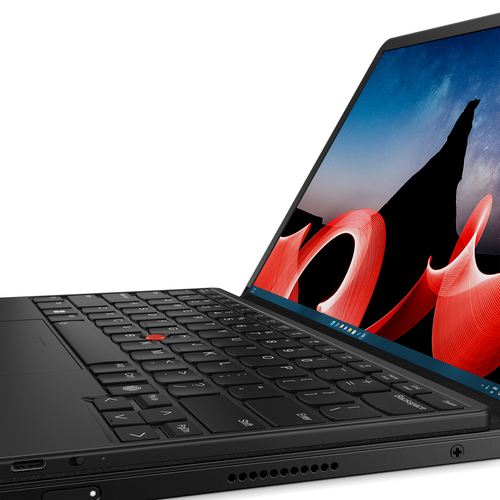

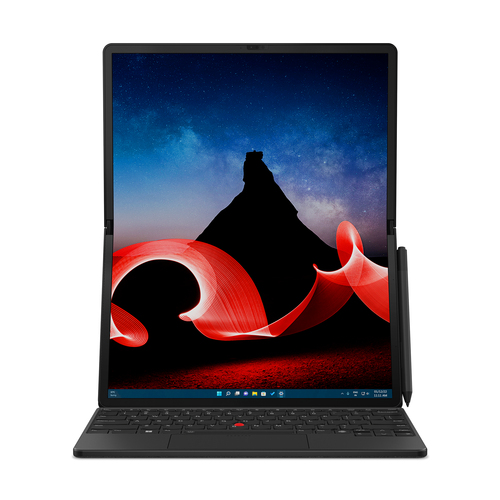

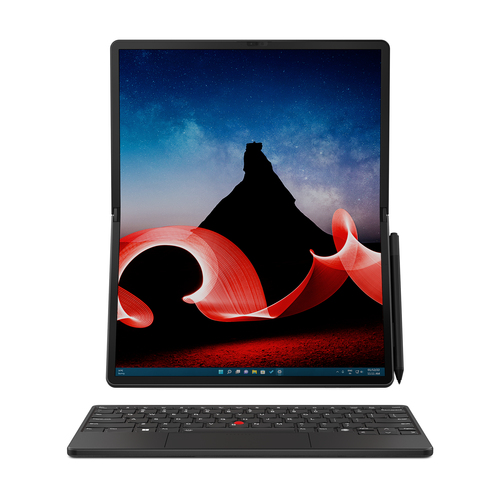

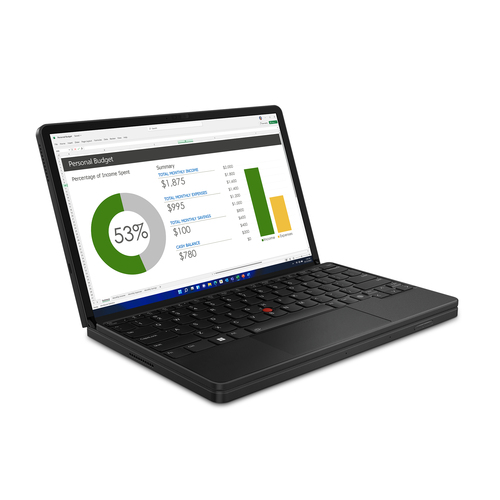

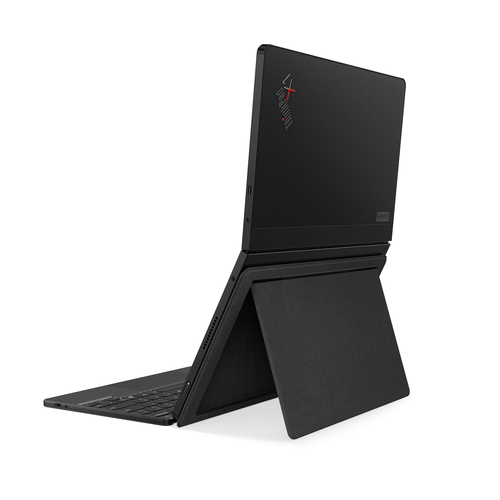

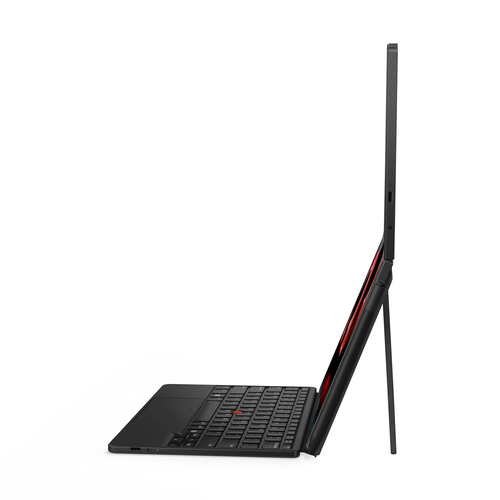

Easily attach the X1 Fold onto the optional ThinkPad Bluetooth TrackPoint Keyboard & Stand in landscape, portrait, or laptop mode. The full-sized keyboard features an integrated fingerprint reader, haptic touchpad, TrackPoint, and conveniently, an adjustable kickstand. Plus, it's backlit, Bluetooth® connected, and magnetically attaches to the bottom screen to give you a fantastic 12″ laptop experience.
Sketch. Take notes. Sign docs.

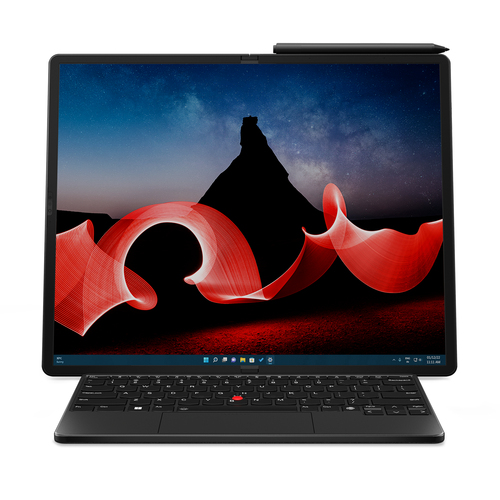

The optional Lenovo Precision Pen with 4K pressure sensitivity is ideal for notetaking and drawing. Shading is a cinch with tilt detection too. What’s more, beyond-epic battery life runs about 400 days, and the pen includes three configurable short-cut buttons to enhance productivity. Also, available in select regions, the pen can be conveniently attached to the X1 Fold magnetically so it’s always at the ready. If the magnetic version isn’t available in your region, simply stow it in your bag for transporting.
Stay connected no matter where you go
Engineered to keep you up and running, the X1 Fold performs seamlessly like a smartphone. With optional Intel® Evo™ vPro® models, the device wakes from sleep in less than a second. WiFi 6E* offers additional bandwidth and speed without congested connections. And with the optional 5G WWAN technology (which also supports LTE)**, you’ll enjoy faster, more secure access to your business servers and uninterrupted video streaming.* 6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.** Optional WWAN availability varies by region and must be configured at time of purchase; it requires a network service provider.
Intuitive & convenient
The ThinkPad X1 Fold boasts intuitive desktop layouts and organization, along with smooth, fast screen rotations when you change the position of the device. Plus, with the latest Windows 11 features — including large touch targets, swipeable menus and widgets, new integrated pen features, and touch snap layouts — you’ll be navigating and multitasking like a pro.
Security you can trust
The X1 Fold delivers seamless protection with our suite of ThinkShield security solutions from the moment you log in, whether with facial recognition using the infrared camera or the secure fingerprint reader on the optional keyboard. The optional Intel® Visual Sensing Controller allows the screen to dim or turn off if you’re not looking—and it even locks your device if you step away. Trusted Platform Module firmware encrypts your critical data for further protection.
Tough enough

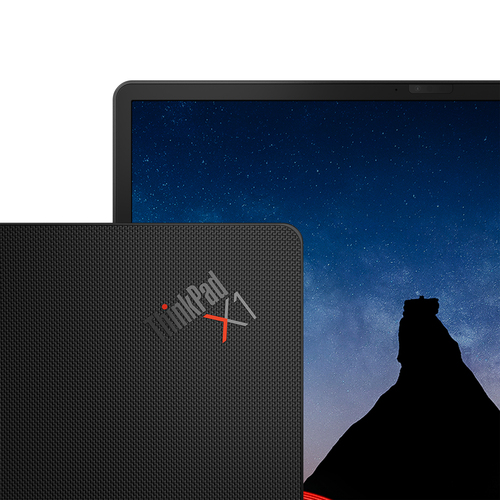

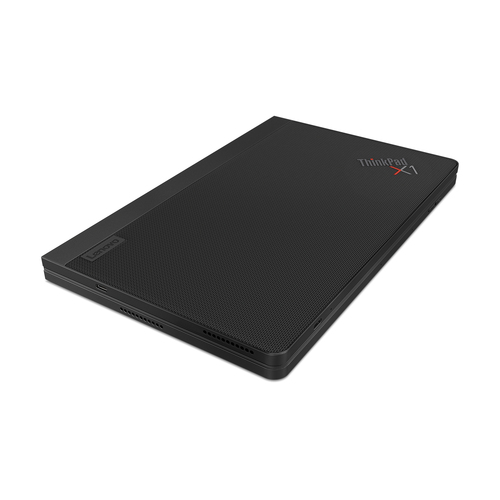

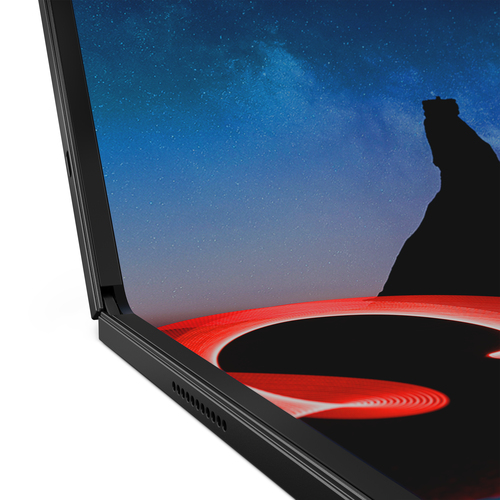

The innovative hinge on the X1 Fold creates a bell shape, allowing it to fold completely flat. The fan-less design disperses thermals to create ideal temperatures throughout. The flexible HDR OLED display is made to endure the rigors of folding and unfolding. And the aluminum chassis is tough — and leads with style. What’s more, we use the US Department of Defense's MIL-STD 810H standards testing against 12 standards, 26 procedures, and more than 200 quality checks to ensure ThinkPads run in extreme conditions, continuing our legacy of trusted quality and reliability.
Centralize your interactions
With Intel® Unison™, you can put your laptop at the center of all that you do. Wirelessly connect your phone — either Android or iOS — to your ThinkPad X1 Fold. Transfer files quickly and easily, even edit your photos and videos seamlessly on the big screen. Make and answer calls directly from your PC, with full access to your phone’s contact list. You can even receive notifications on your laptop, as well as messaging. No need to switch devices when you can do it all in one place.
*Intel® Unison™ solution is currently only available on eligible Intel® Evo™ designs on Windows-based PCs powered by 12th Gen Intel® Core™ or newer CPU and only pairs with Android- or iOS-based phones; all devices must run a supported OS version. See intel.com/performance-evo for details, including set-up requirements. Results may vary.
Specifications may vary depending upon region / model.
Specifications
Design
- Colour name
- Performance Black
- Product type
- Hybrid (2-in-1)
- Product colour
- Black
- Form factor
- Convertible (Detachable)
- Housing material
- Aluminium, Fabric
Display
- Foldable display
- Yes
- Display diagonal
- 41.4 cm (16.3")
- Display resolution
- 2560 x 2024 pixels
- Touchscreen
- Yes
- Panel type
- OLED
- LED backlight
- Yes
- Native aspect ratio
- 4:3
- Anti-smudge coating
- Yes
- RGB colour space
- DCI-P3
- Colour gamut
- 100%
- Contrast ratio (typical)
- 1000000:1
- High Dynamic Range (HDR) supported
- Yes
- High Dynamic Range (HDR) technology
- Dolby Vision, HDR True Black 600
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i7
- Processor generation
- 12th gen Intel® Core™ i7
- Processor model
- i7-1260U
- Processor cores
- 10
- Processor threads
- 12
- Processor boost frequency
- 4.7 GHz
- Performance cores
- 2
- Efficient cores
- 8
- Performance-core Max Turbo Frequency
- 4.7 GHz
- Efficient-core Max Turbo Frequency
- 3.5 GHz
- Processor cache
- 12 MB
- Processor cache type
- Smart Cache
- Processor base power
- 9 W
- Maximum turbo power
- 29 W
Memory
- Internal memory
- 32 GB
- Internal memory type
- LPDDR5-SDRAM
- Memory clock speed
- 5200 MHz
- Memory form factor
- On-board
- Maximum internal memory
- 32 GB
- Memory channels
- Octa-channel
Storage
- Total storage capacity
- 1 TB
- Storage media
- SSD
- Total SSDs capacity
- 1 TB
- Number of SSDs installed
- 1
- SSD capacity
- 1 TB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- Optical drive type
- No
- Card reader integrated
- No
Graphics
- Discrete graphics card model
- Not available
- On-board graphics card
- Yes
- On-board GPU manufacturer
- Intel
- Discrete graphics card
- No
- On-board graphics card family
- Intel Iris Xe Graphics
- On-board graphics card model
- Intel Iris Xe Graphics
Audio
- Audio system
- Dolby Atmos
- Number of built-in speakers
- 3
- Speaker power
- 2 W
- Built-in microphone
- Yes
- Number of microphones
- 4
Camera
- Front camera
- Yes
- Front camera resolution (numeric)
- 5 MP
- Infrared (IR) camera
- Yes
Network
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax)
- Mobile network connection
- No
- Antenna type
- 2x2
- WLAN controller model
- Intel Wi-Fi 6E AX211
- WLAN controller manufacturer
- Intel
- Ethernet LAN
- No
- Bluetooth
- Yes
- Bluetooth version
- 5.1
- Near Field Communication (NFC)
- No
- WWAN
- Not installed
Ports & interfaces
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Thunderbolt 4 ports quantity
- 2
- Intel® Thunderbolt 4
- Yes
- Combo headphone/mic port
- Yes
- USB Type-C DisplayPort Alternate Mode
- Yes
Performance
- Motherboard chipset
- Intel SoC
Keyboard
- Pointing device
- ThinkPad UltraNav
- Numeric keypad
- No
- Keyboard language
- English
Software
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
- Bundled software
- Intel Connectivity Performance Suite
Battery
- Battery technology
- Lithium Polymer (LiPo)
- Battery capacity
- 64 Wh
- Fast charging
- Yes
Power
- AC adapter power
- 65 W
- AC adapter frequency
- 50/60 Hz
- AC adapter input voltage
- 100 - 240 V
- USB Power Delivery (USB PD)
- Yes
Security
- Fingerprint reader
- Yes
- Smart card reader
- No
- Windows Hello
- Yes
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
- Password protection
- Yes
- Password protection type
- BIOS, Power on, SSD, Supervisor
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- 5 - 43 °C
- Operating relative humidity (H-H)
- 8 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Maximum shipping altitude
- 3048 m
Certificates
- Compliance certificates
- RoHS
- Certification
- ErP Lot 6 and Lot 26 MIL-STD-810H
Sustainability
- Sustainability certificates
- ENERGY STAR, EPEAT Gold, TCO
Weight & dimensions
- Width
- 176.2 mm
- Depth
- 276.2 mm
- Height
- 17.4 mm
- Weight (tablet mode)
- 1.31 kg
- Width (tablet mode)
- 34.6 cm
- Depth (tablet mode)
- 27.6 cm
- Height (tablet mode)
- 8.6 mm
- Weight
- 1.94 kg
Packaging content
- Stylus pen
- Yes
Downloads
More in Notebook/Tablet 2-in-1
LenovoThinkPad X1 2in1 G10, Intel Core Ultra 5 226V LPEcores up to 3.50GHz, 21NU0034US
LenovoThe Lenovo ThinkPad T14s 2in1 Gen 1 is a versatile business laptop des21R30010US
LenovoLenovo ThinkPad P14s G5 Intel Core Ultra 5 135H vPro ECore s up to 3.621G2001LUS
LenovoNB WS P14s G5 ULT7 32G 1T 11P21G2001VCA
LenovoNB WS P14s G5 ULT7 32G 1T 11P21G2001VUS
LenovoNB WS P14s G5 ULT7 16G 512G 11P French21G20022CA
LenovoNB WS P14s G5 ULT7 16G 512G 11P21G20022US

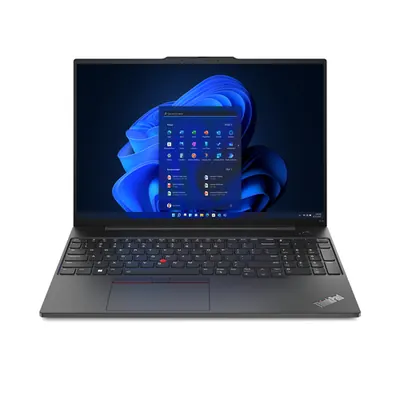

LenovoNB TP E16 G1 I7 16G 512G 11P21JN003XUS
