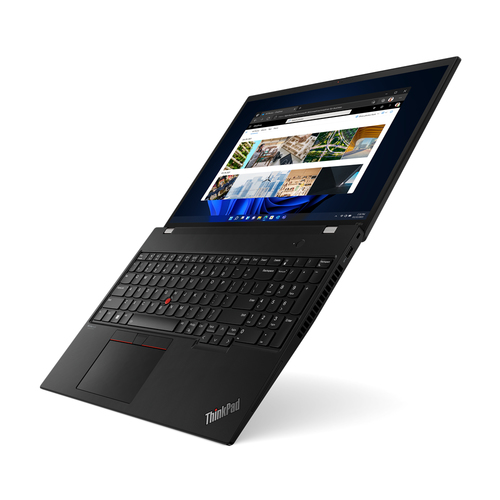

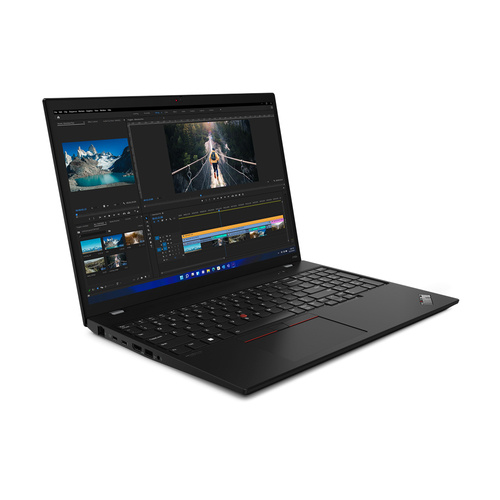

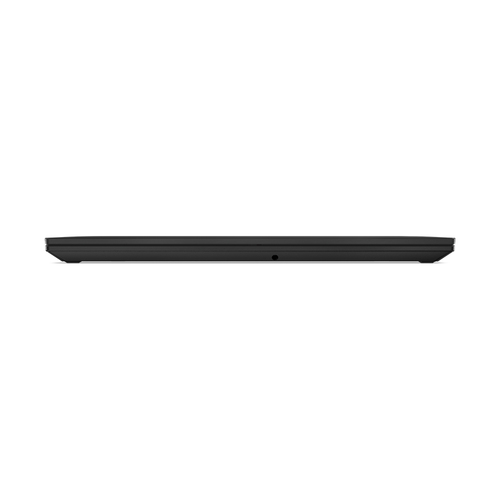

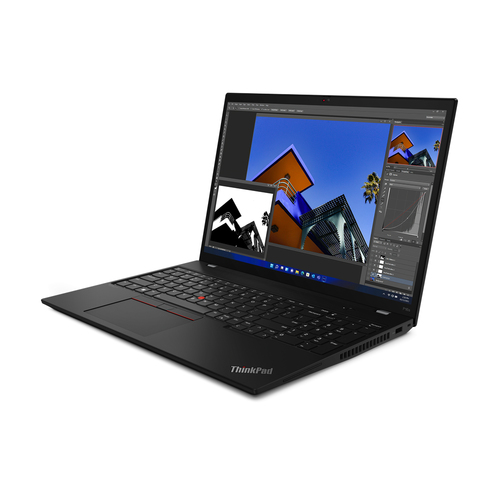

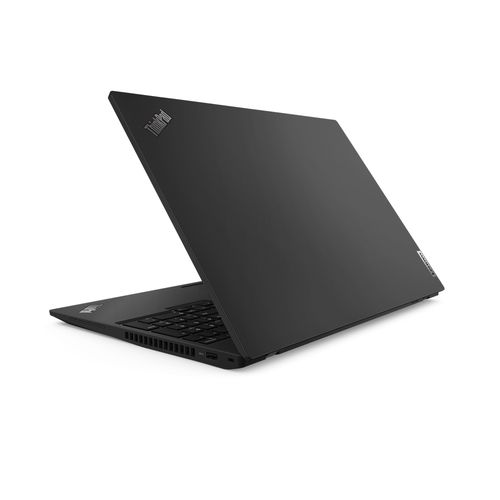

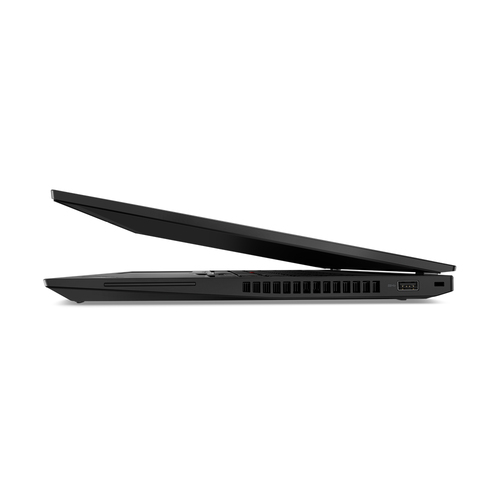

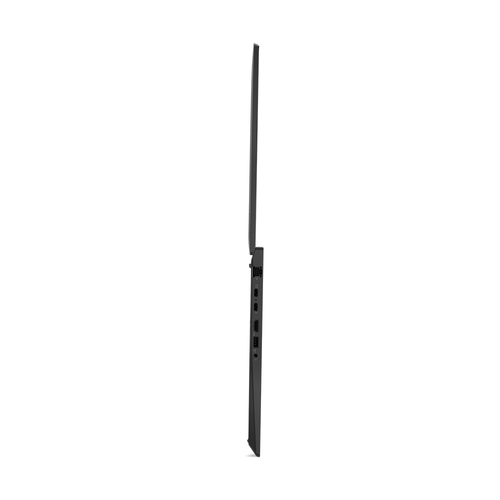

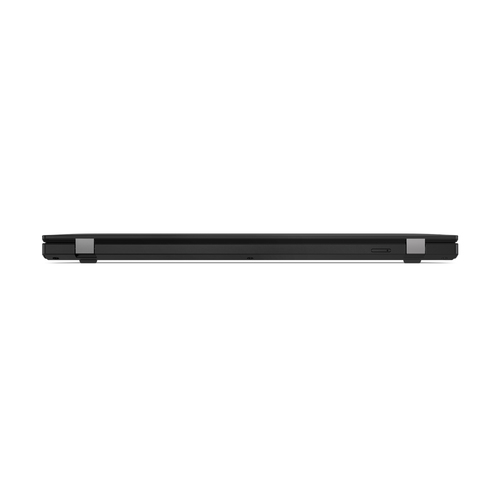

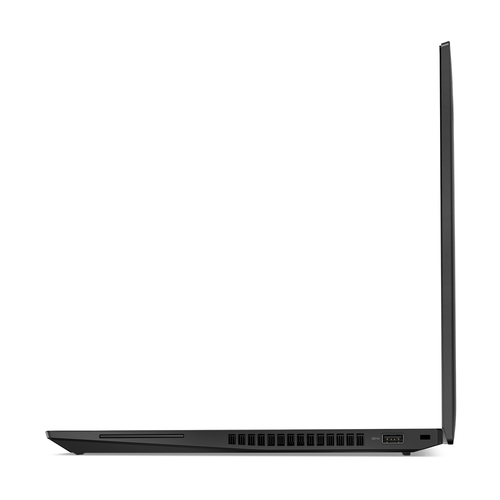

ThinkPad P16s Gen 1 (Intel) Intel® Core™ i7 i7-1280P Mobile workstation 40.6 cm (16") WUXGA 16 GB
- Windows 11 Pro
- Intel Core i7-1280P (24MB Cache)
- 40.6 cm (16") WUXGA 1920 x 1200 IPS, NVIDIA Quadro T550 (4GB GDDR6)
- 16GB (3200MHz) DDR4-SDRAM & 512GB SSD
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The freedom to work from anywhere
Built to perform superbly in the field or office, the ThinkPad P16s enables everyone from engineers to students and medical professionals to be innovative, anywhere. This light, powerful mobile workstation boasts up to Intel® Core™ i7 processors and comes with a choice of NVIDIA® discrete graphics or integrated Intel® graphics. It’s also ISV certified* and breezes through graphics-intensive software like AutoCAD® and SolidWorks®.
*For a complete list of ISV certifications, visit https://thinkworkstations.com/isv-certifications/.
Be inspired, from the outside in
Designed with enhanced usability including a secure fingerprint reader, full numeric keypad, and wide touchpad, ThinkPad P16s is the ideal for whether you're collaborating in the office, on site, or with clients. Available with a choice of screen options, including QHD+ with X-Rite Factory Colour Calibration, touch display, and low-blue light technology.
Configurable, durable, & reliable
With up to 48GB of lightning-quick DDR4 memory and up to 2TB of next-gen PCIe Gen4 NMVe storage, the ThinkPad P16s can be configured to meet your exact needs. Together with its array of advanced ThinkShield security features and ability to meet stringent US military tests for durability, ruggedness, and reliability, this mobile workstation enables you to work in almost any environment.
All you need to be connected, or not
Even with jaw-dropping performance, the ThinkPad P16s is still surprisingly light and slim, weighing from just 1.68 kgs and 20.5mm / 0.8" thin. It offers robust connectivity, including two Intel® Thunderbolt™ 4 ports, plus HDMI and USB-A 3.2 connectors. It also has a webcam privacy shutter, so you can physically turn the FHD camera off and on.
We’ve got your back
When you spend hours on business-critical projects, it’s essential to know that all your hard work and efforts are backed by the best. That’s why, the ThinkPad P16s comes with ThinkShield—our comprehensive portfolio of end-to-end protection and customizable security features, including advanced data encryption and biometric technology.
Specifications may vary depending upon region / model.
Specifications
Design
- Product type
- Mobile workstation
- Product colour
- Black
- Form factor
- Clamshell
- Housing material
- Carbon fibre, Glass fibre, Polycarbonate (PC), Polyphenylene sulfide (PPS)
Display
- Display diagonal
- 40.6 cm (16")
- Display resolution
- 1920 x 1200 pixels
- Touchscreen
- No
- HD type
- WUXGA
- Panel type
- IPS
- LED backlight
- Yes
- Native aspect ratio
- 16:10
- Anti-glare screen
- Yes
- Display brightness
- 300 cd/m²
- RGB colour space
- NTSC
- Colour gamut
- 45%
- Contrast ratio (typical)
- 800:1
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i7
- Processor generation
- 12th gen Intel® Core™ i7
- Processor model
- i7-1280P
- Processor cores
- 14
- Processor boost frequency
- 4.8 GHz
- Performance cores
- 6
- Efficient cores
- 8
- Performance-core Max Turbo Frequency
- 4.8 GHz
- Efficient-core Max Turbo Frequency
- 3.6 GHz
- Processor cache
- 24 MB
- Processor cache type
- Smart Cache
- Processor base power
- 28 W
- Maximum turbo power
- 64 W
Memory
- Internal memory
- 16 GB
- Internal memory type
- DDR4-SDRAM
- Memory clock speed
- 3200 MHz
- Memory form factor
- On-board + SO-DIMM
- Memory slots
- 1x SO-DIMM
- Maximum internal memory
- 48 GB
- Memory channels
- Dual-channel
- Non-ECC
- Yes
Storage
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Total SSDs capacity
- 512 GB
- Number of SSDs installed
- 1
- SSD capacity
- 512 GB
- SSD interface
- PCI Express
- NVMe
- Yes
- SSD form factor
- M.2
- Optical drive type
- No
- Card reader integrated
- No
Graphics
- Discrete graphics card model
- NVIDIA Quadro T550
- Discrete graphics card memory
- 4 GB
- Discrete graphics memory type
- GDDR6
- On-board graphics card
- Yes
- On-board GPU manufacturer
- Intel
- Discrete graphics card
- Yes
- On-board graphics card family
- Intel Iris Xe Graphics
- On-board graphics card model
- Intel Iris Xe Graphics
Audio
- Audio chip
- Realtek ALC3287
- Audio system
- Dolby Audio
- Number of built-in speakers
- 2
- Built-in microphone
- Yes
- Number of microphones
- 2
Camera
- Front camera
- Yes
- Front camera resolution
- 1920 x 1080 pixels
- Front camera HD type
- Full HD
- Infrared (IR) camera
- Yes
- Privacy camera
- Yes
- Privacy type
- Privacy shutter
Network
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- Mobile network connection
- No
- Antenna type
- 2x2
- WLAN controller model
- Intel Wi-Fi 6E AX211
- WLAN controller manufacturer
- Intel
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 100,1000 Mbit/s
- Bluetooth
- Yes
- Bluetooth version
- 5.1
- WWAN
- Upgradable

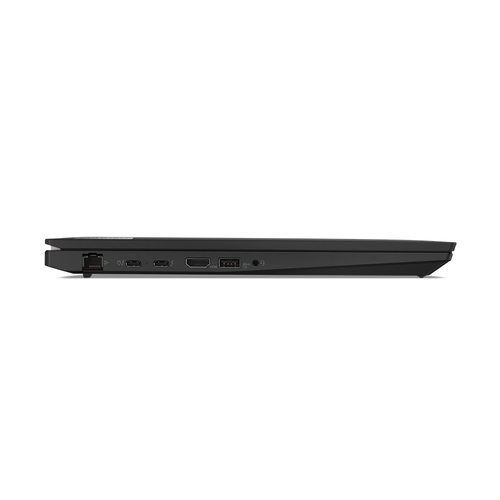

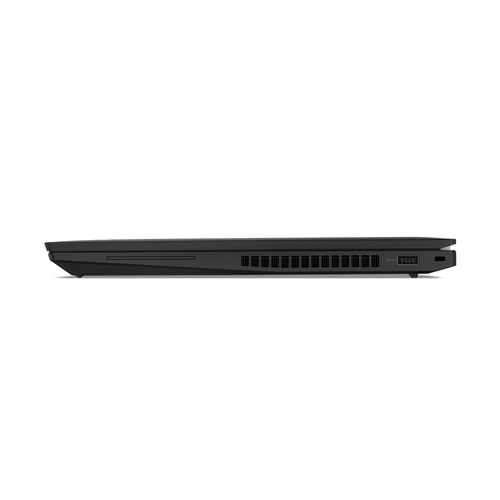

Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Thunderbolt 4 ports quantity
- 2
- Intel® Thunderbolt 4
- Yes
- Combo headphone/mic port
- Yes
- USB Type-C DisplayPort Alternate Mode
- Yes
- USB Sleep-and-Charge
- Yes
- USB Sleep-and-Charge ports
- 1
Performance
- Motherboard chipset
- Intel SoC
Keyboard
- Pointing device
- ThinkPad UltraNav
- Numeric keypad
- Yes
- Keyboard backlit
- Yes
- Spill-resistant keyboard
- Yes
- Keyboard layout
- QWERTY
- Keyboard language
- English
Software
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
Battery
- Battery technology
- Lithium Polymer (LiPo)
- Battery capacity
- 52.5 Wh
- Fast charging
- Yes
Power
- AC adapter power
- 100 W
- AC adapter frequency
- 50 - 60 Hz
- AC adapter input voltage
- 100 - 240 V
- USB Power Delivery (USB PD)
- Yes
Security
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Fingerprint reader
- Yes
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
- Password protection
- Yes
- Password protection type
- BIOS, Power on, Supervisor, SSD
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- 5 - 43 °C
- Operating relative humidity (H-H)
- 8 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Maximum shipping altitude
- 3048 m
Certificates
- Certification
- EPEAT Gold ENERGY STAR TCO Certified RoHS MIL-STD-810H TÜV
Weight & dimensions
- Width
- 361.9 mm
- Depth
- 255.5 mm
- Height
- 21.1 mm
- Weight
- 1.8 kg
