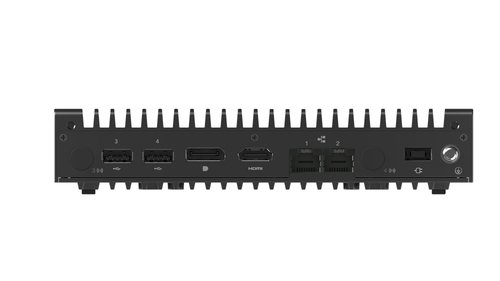

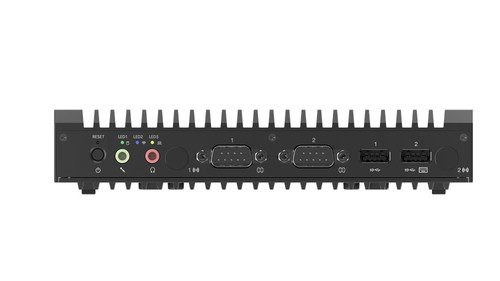

ThinkEdge SE10 Intel Atom® X6214RE 4 GB DDR4-SDRAM 256 GB SSD Windows 10 IoT Enterprise Mini PC Black

Part # 12NH000PUTUPC 1968045154343.31 lb

Windows 10 IoT Enterprise LTSC 2021
Intel Atom X6214RE (1.5MB Cache, 1.4GHz)
4GB (3200MHz) DDR4-SDRAM (1 x 4) & 256GB SSD

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Lenovo ThinkEdge SE10 12NH000PUT Intel Atom x6214RE Dualcore 2 Core 1.40 GHz Intel Chip 4 GB RAM DDR4 SDRAM 32 GB 256 GB SSD Windows 10 IoT Enterprise LTSC 2021 Windows Intel UHD Graphics 2.5 Gigabit Ethernet Wireless LAN Bluetooth 4 x USB Ports 2 x RJ45 Ports 65 W Black

Specifications

Processor

Processor manufacturer: Intel
Processor family: Intel Atom®
Processor model: X6214RE
Processor cores: 2
Processor threads: 2
Processor frequency: 1.4 GHz
Processor cache: 1.5 MB
Processor cache type: L2

Memory

Internal memory: 4 GB
Maximum internal memory: 32 GB
Internal memory type: DDR4-SDRAM
Memory layout (slots x size): 1 x 4 GB
Memory slots: 2x SO-DIMM
Memory clock speed: 3200 MHz
Memory channels: Dual-channel

Storage

Total storage capacity: 256 GB
Storage media: SSD
Optical drive type: No
Number of storage drives installed: 1
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express 4.0
NVMe: Yes
SSD form factor: M.2
Card reader integrated: Yes

Graphics

Discrete graphics card: No
On-board graphics card: Yes
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card model: Intel® UHD Graphics

Performance

Motherboard chipset: Intel SoC
Trusted Platform Module (TPM): Yes
Product type: Mini PC

Ports & interfaces

USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DisplayPorts quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
HDMI version: 1.4b
Ethernet LAN (RJ-45) ports: 2
Line-out: Yes
Microphone in: Yes
Serial ports quantity: 2

Power

Power supply: 65 W

Design

Chassis type: Mini PC
Volume: 0.8 L
VESA mounting: Yes
Product colour: Black

Software

Operating system language: English
Operating system installed: Windows 10 IoT Enterprise

Display

Display included: No

Operational conditions

Operating temperature (T-T): 0 - 50 °C

Weight & dimensions

Width: 179 mm
Depth: 135 mm
Height: 34.5 mm
Weight: 1.5 kg

Packaging content

Mouse included: No
Keyboard included: No

Certificates

Certification: ErP Lot 6 Low Halogen RoHS compliant REACH TED (ECO-declaration) WEEE Microsoft Azure IoT Edge certified AWS IoT Greengrass certified Ubuntu Core certified Ubuntu Server certified Red Hat Enterprise Linux certified
