LenovoPCs/Workstations

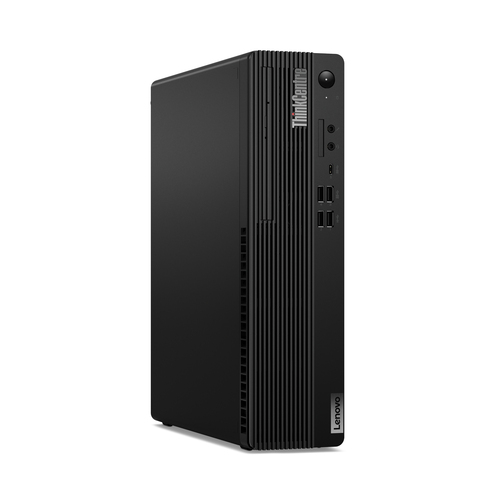

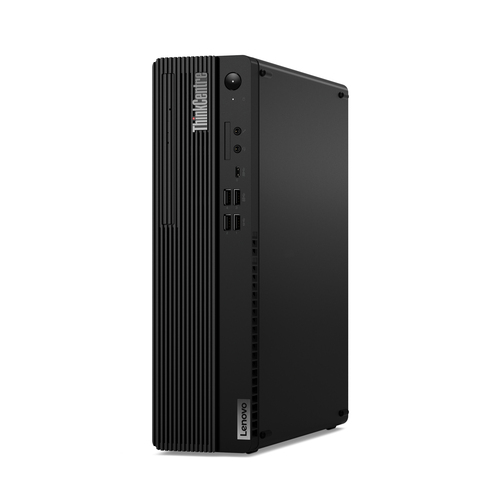

ThinkCentre M70s Gen 4 Intel® Core™ i5 i5-13400 16 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro SFF PC Black
- Intel Core i5-13400, 10C (6P + 4E)/16T, P-core 2.5/4.6GHz, E-core 1.8/3.3GHz, 20MB
- 1x 16GB UDIMM DDR4-3200
- 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel UHD Graphics 730
- Windows 11 Pro
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Small chassis, big performance
01
- Productivity-focused small form factor desktop PC
- Intel vPro® Enterprise, 13th Gen Intel® Core™ processors
- Extensive ports and slots
02
- Copious amounts of memory
- Robust ThinkShield security
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i5
- Processor generation
- 13th gen Intel® Core™ i5
- Processor model
- i5-13400
- Processor cores
- 10
- Processor threads
- 16
- Processor boost frequency
- 4.6 GHz
- Performance cores
- 6
- Efficient cores
- 4
- Performance-core Max Turbo Frequency
- 4.6 GHz
- Efficient-core Max Turbo Frequency
- 3.3 GHz
- Performance-core base frequency
- 2.5 GHz
- Efficient-core base frequency
- 1.8 GHz
- Processor cache
- 20 MB
- Processor cache type
- Smart Cache
- Number of processors installed
- 1
- Processor base power
- 65 W
- Maximum turbo power
- 148 W
Memory
- Internal memory
- 16 GB
- Maximum internal memory
- 128 GB
- Internal memory type
- DDR4-SDRAM
- Memory layout (slots x size)
- 1 x 16 GB
- Memory slots
- 4x DIMM
- Memory clock speed
- 3200 MHz
- Memory channels
- Dual-channel
Storage
- Total storage capacity
- 256 GB
- Storage media
- SSD
- Optical drive type
- DVD±RW
- Number of storage drives installed
- 1
- Total SSDs capacity
- 256 GB
- Number of SSDs installed
- 1
- SSD capacity
- 256 GB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
- Card reader integrated
- No
Graphics
- Discrete graphics card
- No
- On-board graphics card
- Yes
- Discrete graphics card model
- Not available
- On-board GPU manufacturer
- Intel
- On-board graphics card family
- Intel® UHD Graphics
- On-board graphics card model
- Intel UHD Graphics 730
Performance
- Motherboard chipset
- Intel Q670
- Password protection
- Yes
- Password protection type
- HDD, Power on, Supervisor
- Trusted Platform Module (TPM)
- Yes
- Product type
- PC
- Built-in speaker(s)
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 100,1000 Mbit/s
- Cabling technology
- 10/100/1000Base-T(X)
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- WLAN controller manufacturer
- Intel
- WLAN controller model
- Intel Wi-Fi 6E AX211
- Antenna type
- 2x2
- Bluetooth
- Yes
- Bluetooth version
- 5.1

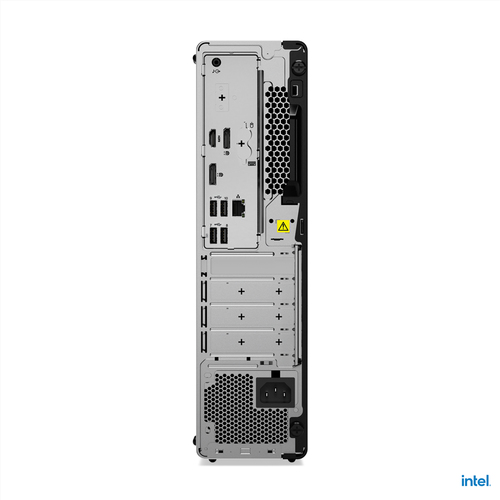

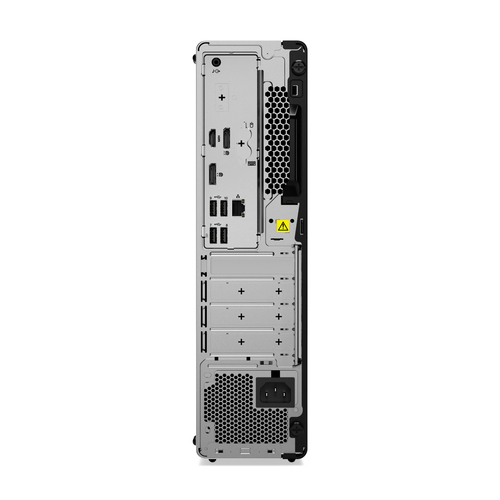

Ports & interfaces
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4a
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Ethernet LAN (RJ-45) ports
- 1
- Combo headphone/mic port
- Yes
- Line-out
- Yes
- Microphone in
- Yes
Power
- Power supply
- 260 W
- Power supply input voltage
- 100 - 240 V
- Power supply input frequency
- 50 - 60 Hz
Design
- Chassis type
- SFF
- Volume
- 8.2 L
- Placement supported
- Vertical
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Product colour
- Black
Software
- Operating system language
- English
- Operating system installed
- Windows 11 Pro
Display
- Display included
- No
Audio
- Audio chip
- Realtek ALC897Q-CG
- Audio system
- High Definition Audio
- Number of speakers
- 1
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 12192 m
Weight & dimensions
- Width
- 92.5 mm
- Depth
- 297.7 mm
- Height
- 339.5 mm
- Weight
- 5.3 kg
Packaging content
- Mouse included
- Yes
- Mouse connectivity
- Wired
- Keyboard included
- Yes
Certificates
- Compliance certificates
- RoHS
- Certification
- ENERGY STAR 8.0 EPEAT Silver Registered ErP Lot 3 RoHS compliant TCO Certified 9.0
Sustainability
- Sustainability certificates
- TCO
Keyboard
- Keyboard connectivity
- Wired
