Home/Catalogue/Lenovo/11TN001QUS

Lenovo 11TN001QUS Drag to turn · 6 views
LenovoPCs/Workstations

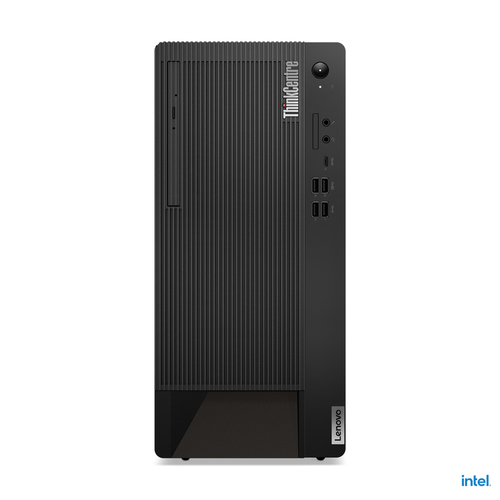

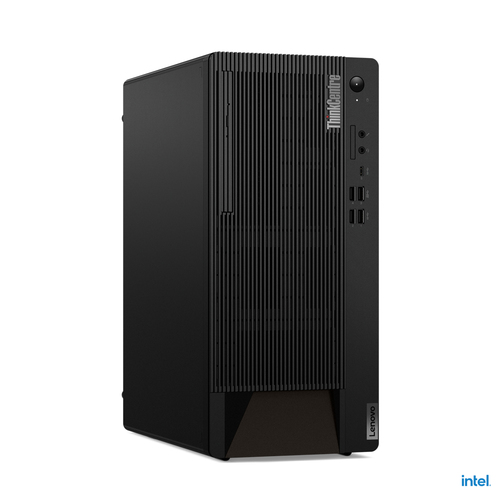

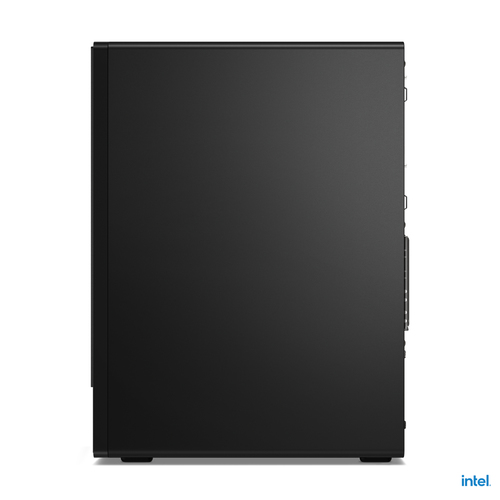

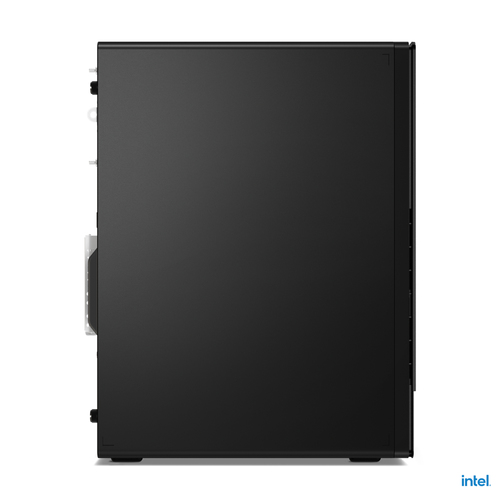

ThinkCentre M90t Intel® Core™ i5 i5-12500 8 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Tower PC Black

Part # 11TN001QUSUPC 19680035949014.3 lb

  • Windows 11 Pro 64-bit
  • Intel Core i5-12500 (18MB Cache, 3GHz)
  • 8GB (4400MHz) DDR5-SDRAM & 256GB SSD
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Awe-inspiring performance

Engineered for high-velocity productivity across industries, the ThinkCentre M90t Gen 3 Tower boasts up to Intel vPro® Enterprise with 125W 12th Generation Intel® Core™ i9 processors. In addition, there’s up to 128GB memory and a host of advanced graphics options, including NVIDIA® GeForce RTX™. The result is a 17L powerhouse that tackles complex data and graphics task with ease. Additionally, ICE 5.0 Cooling (Intelligent Cooling Engine) ensures your ThinkCentre maintains temperatures at an optimal level for high-performance computing while carefully controlling power consumption.

01

End-to-end security

At the core of the ThinkCentre M90t Gen 3 Tower lies Lenovo ThinkShield, end-to-end hardware and software protection for your data—and your business. The Trusted Platform Module (TPM) 2.0 chip protects sensitive information while passwords are encrypted, and BIOS-based Smart USB protection stops unauthorized access. This tower PC can also self-heal if its becomes corrupted and has several physical security options to deter theft.

02

Flexibility meets expandability

The ThinkCentre M90t Gen 3 Tower supports WiFi 6E* for lightning-fast data transfers and seamless videoconferencing. With toolless access design, optional Smart Cable, as well as the array of host ports and expansion slots, you can connect to legacy peripherals, up to four monitors, and other essential devices. You can also opt for dual solid-state drive (SSD) storage for improved responsiveness and power consumption.

03

Solid as a rock

Lenovo’s dedication to quality means the M90t Gen 3 desktop shrugs off spills, dust, and more. It’s MIL-STD certified against multiple real-world benchmarks for toughness and durability. We test against 12 standards and 20 procedures to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more. Like all ThinkCentre devices, it’s ENERGY STAR® 8 certified.

Specifications may vary depending upon region / model.

Specifications

Processor

Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Processor generation
12th gen Intel® Core™ i5
Processor model
i5-12500
Processor cores
6
Processor boost frequency
4.6 GHz
Processor frequency
3 GHz
Processor cache
18 MB
Processor cache type
Smart Cache
Bus type
DMI4

Memory

Internal memory
8 GB
Maximum internal memory
128 GB
Internal memory type
DDR5-SDRAM
Memory slots
4x DIMM
Memory clock speed
4400 MHz
Memory channels
Dual-channel

Storage

Total storage capacity
256 GB
Storage media
SSD
Optical drive type
DVD±RW
Number of storage drives installed
1
Total SSDs capacity
256 GB
Number of SSDs installed
1
SSD capacity
256 GB
SSD interface
NVMe, PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
Card reader integrated
No

Graphics

Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card model
Intel UHD Graphics 770

Performance

Motherboard chipset
Intel Q670
Password protection
Yes
Password protection type
HDD, Power on, Supervisor
Trusted Platform Module (TPM)
Yes
Product type
PC
Built-in speaker(s)
Yes

Network

Ethernet LAN
Yes
Ethernet LAN data rates
1000,100 Mbit/s
Cabling technology
10/100/1000Base-T(X)
LAN controller
Intel® I219-LM
Wi-Fi
No
Bluetooth
No
Wake-on-LAN ready
Yes

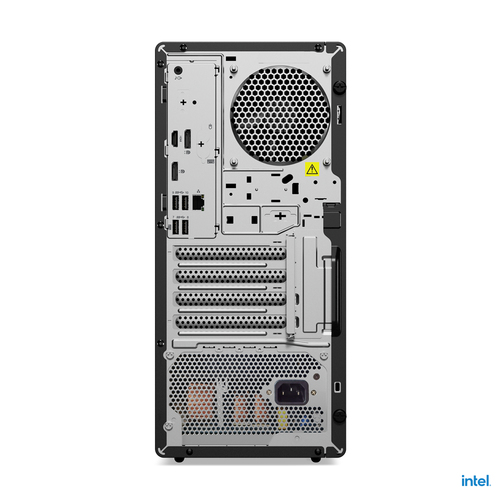

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPorts quantity
3
DisplayPort version
1.4
HDMI ports quantity
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Line-out
Yes
Microphone in
Yes

Power

Power supply
300 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz

Design

Chassis type
Tower
Volume
17 L
Placement supported
Vertical
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Viewing window
No

Software

Operating system architecture
64-bit
Operating system language
English
Operating system installed
Windows 11 Pro

Processor special features

Intel 64
Yes
Enhanced Intel SpeedStep Technology
Yes
Embedded options available
No
Intel VT-x with Extended Page Tables (EPT)
Yes
Idle States
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
CPU configuration (max)
1
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Virtualization Technology (VT-x)
Yes

Display

Display included
No

Audio

Audio chip
Realtek ALC897Q-CG
Audio system
High Definition Audio
Number of speakers
1

Operational conditions

Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-40 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 12192 m

Weight & dimensions

Width
170 mm
Depth
298 mm
Height
376 mm
Weight
6.5 kg

Packaging data

Package width
275 mm
Package depth
395 mm
Package height
540 mm
Package weight
9.8 kg

Certificates

Compliance certificates
RoHS
Certification
MIL-STD-810H

Sustainability

Sustainability certificates
TCO, ErP
