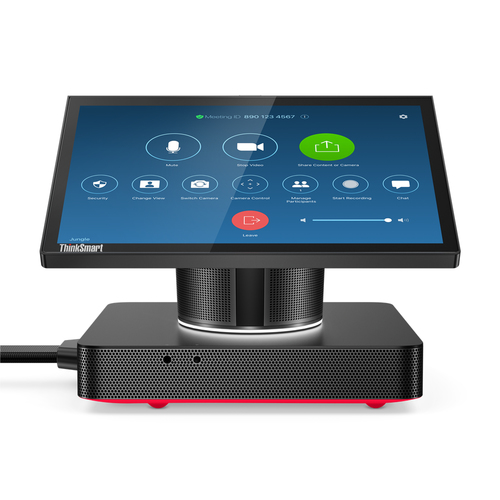

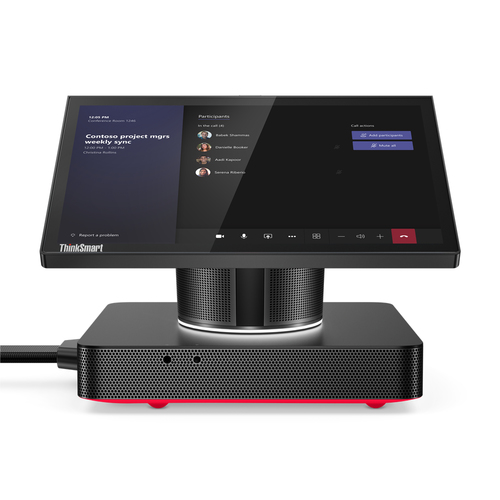

ThinkSmart Hub Intel® Core™ i5 i5-8365UE 25.6 cm (10.1") 1920 x 1200 pixels Touchscreen All-in-One

Part # 11H3000KUSUPC 197528911793Warranty: 3-year, Onsite with Premier Support + First Year Maintenance, 3Y Premier Support10.95 lb

Windows® 11 IoT Enterprise GAC 64
Intel Core i5-8365UE (6MB Cache, 1.6GHz)
25.7 cm (10.1") Full HD 1920 x 1200 WVA Touch
16GB (2400MHz) DDR4-SDRAM (1 x 8) & 256GB SSD

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Meetings just got easier.

The ThinkSmart Hub meeting room device is making meetings more efficient than ever. Built on the Microsoft Teams platform with 8th Gen Intel® Core™ processors, the redesigned Hub has a slimmer design with a sleeker display, more speakers and microphones, an innovative single-cable mechanism, and more visible indicator lights. It’s still scalable across room sizes and features one-touch meeting start, for the best possible Microsoft Teams experience

Specifications

Display

Display diagonal: 25.6 cm (10.1")
Display resolution: 1920 x 1200 pixels
Touchscreen: Yes
HD type: Full HD
Native aspect ratio: 16:10
Display brightness: 320 cd/m²
Panel type: WVA
Anti-glare screen: Yes

Processor

Processor manufacturer: Intel
Processor family: Intel® Core™ i5
Processor generation: 8th gen Intel® Core™ i5
Processor model: i5-8365UE
Processor cores: 4
Processor boost frequency: 4.1 GHz
Processor frequency: 1.6 GHz
Processor cache: 6 MB
Processor cache type: Smart Cache

Memory

Internal memory: 16 GB
Internal memory type: DDR4-SDRAM
Maximum internal memory: 16 GB
Memory clock speed: 2400 MHz
Memory layout (slots x size): 1 x 8 GB
Memory form factor: On-board

Storage

Total storage capacity: 256 GB
Storage media: SSD
Number of storage drives installed: 1
Total SSDs capacity: 256 GB
Number of SSDs installed: 1
SSD capacity: 256 GB
SSD interface: PCI Express 3.0
NVMe: Yes
SSD form factor: M.2
Optical drive type: No
Card reader integrated: No

Graphics

Discrete graphics card: No
Discrete graphics card model: Not available
On-board graphics card: Yes
On-board GPU manufacturer: Intel
On-board graphics card family: Intel® UHD Graphics
On-board graphics card model: Intel® UHD Graphics 620

Audio

Built-in speaker(s): Yes
Number of speakers: 4
RMS rated power: 12 W
Built-in microphone: Yes
Audio system: HD

Camera

Built-in camera: No

Network

Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller manufacturer: Intel
WLAN controller model: Intel Dual Band Wireless-AC 9560
Antenna type: 2x2
Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Bluetooth: Yes
Bluetooth version: 5.0
