Home/Catalogue/Kingston/KSM56R46BD4-64MH
KingstonMemory Modules

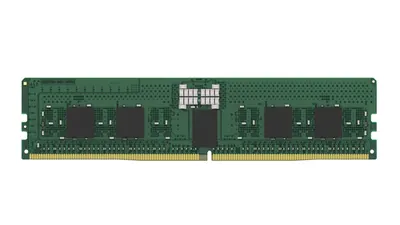

64GB 5600MT/s DDR5 ECC Reg CL46 DIMM 2Rx4 Micron H
- PC 64 GB DDR5 5600 MT/s
- 288-pin DIMM 1 x 64 GB
- CAS latency: 46
- 1.1 V
- ECC
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- On-Die ECC
- Yes
- CAS latency
- 46
- Internal memory
- 64 GB
- Memory layout (modules x size)
- 1 x 64 GB
- Internal memory type
- DDR5
- Memory data transfer rate
- 5600 MT/s
- Component for
- PC
- Memory form factor
- 288-pin DIMM
- ECC
- Yes
- Buffered memory type
- Registered (buffered)
- Memory voltage
- 1.1 V
- Row cycle time
- 48 ns
- Refresh row cycle time
- 295 ns
- Row active time
- 32 ns
- Row Precharge Time (TRP)
- 16
- Programming power voltage (VPP)
- 1.8 V
Operational conditions
- Operating temperature (T-T)
- 0 - 95 °C
- Storage temperature (T-T)
- -55 - 100 °C
Sustainability
- Compliance certificates
- RoHS
Weight & dimensions
- Height
- 31.2 mm
Other features
- Chips organisation
- 2Rx4
- Doesn't contain
- Halogen
