JabraVideo Conferencing Systems

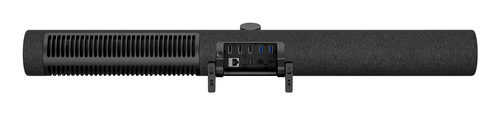

PanaCast 50 VBS bar only - UC (VB, NA, Charger-type A)
- World-class audio with full duplex and powerful stereo speakers
- Unique 180° full room coverage in high-definition Panoramic-4K
- Certified for the strict requirements of Microsoft Teams Rooms and Zoom Rooms
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Performance
- Number of cameras
- 3
- Bluetooth
- Yes
- Bluetooth version
- 5.1
- Product colour
- Black
- Auto framing
- Yes
- Product type
- Video collaboration bar
- Wall mountable
- Yes
- PTZ control
- Yes
Video
- HD type
- 4K Ultra HD
- Total megapixels
- 13 MP
- Picture-in-Picture
- No
Audio
- Built-in speaker(s)
- Yes
- Number of speakers
- 4
- Frequency range
- 80 - 20000 Hz
- Audio system full duplex
- Yes
- Line-out impedance
- 4 Ω
- Audio beamforming
- Yes
- Noise reduction
- Yes
- Echo cancellation
- Yes
- Microphone pick-up range
- 6 m
Ports & interfaces
- HDMI ports quantity
- 3
- HDMI output ports quantity
- 2
- HDMI input ports quantity
- 1
- USB connector type
- USB Type-C, USB Type-A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- DC-in jack
- Yes
- AUX out
- Yes
- 3.5 mm connector
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Wi-Fi
- Yes
- Supported network protocols
- IPv4;IPv6
- Security algorithms
- HTTPS
Camera
- Megapixel (approx.)
- 13 MP
- Camera type
- Triple camera
- Zoom capability
- Yes
- Digital zoom
- 3x
- Horizontal field of view
- 180°
- Vertical field of view
- 54°
- Diagonal field of view
- 180°
- Privacy camera
- Yes
- Privacy type
- Privacy cover
Microphone
- Microphone sensitivity
- -37 dB
- Microphone frequency
- 100 - 16000 Hz
- Number of microphones
- 8
Technical details
- Warranty period
- 2 year(s)
Features
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Computer system
- Operating system installed
- Android
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Operating relative humidity (H-H)
- 15 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
- Maximum operating altitude
- 4876.8 m
Power
- Power source type
- AC
- AC input voltage
- 100-240 V
- Current
- 5 A
- DC input voltage
- 12 V
- DC output voltage
- 12 V
- Power plug type
- Type A
Certificates
- Certified for Microsoft Teams
- Yes
- Certification
- Microsoft Teams Rooms;Zoom Room
Weight & dimensions
- Width
- 730 mm
- Depth
- 146 mm
- Height
- 77 mm
- Weight
- 2.26 kg
Packaging data
- Package width
- 785 mm
- Package depth
- 183 mm
- Package height
- 189 mm
- Package weight
- 4.85 kg
Packaging content
- Cables included
- HDMI, LAN (RJ-45)
- Networking cable length
- 1.83 m
- HDMI cable length
- 1.83 m
- AC adapter included
- Yes
- Packaging content
- PanaCast 50 VBS bar only;Power supply;Wall mount;Privacy cover with sensor;Cable compartment cover and tool;1 x Ethernet cable 4.57m/15ft;1 x HDMI cable 1.83m/6ft;1 x regional power cable
