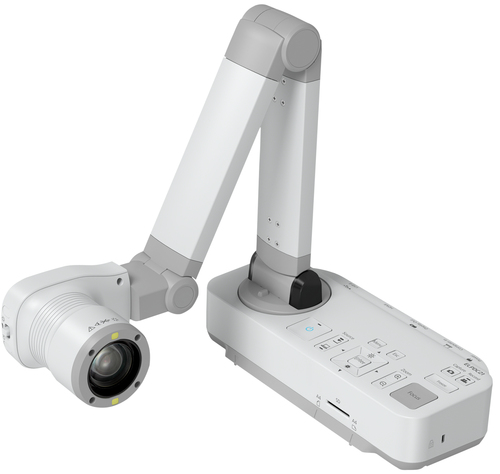

DC-21 document camera White 25.4 / 2.7 mm (1 / 2.7") CMOS USB 2.0

Part # V12H758020UPC 01034392412310.65 lb

25.4 / 2.7 mm (1 / 2.7") CMOS
2 MP
Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA)
Image freeze
Auto focus
Interface: USB 2.0

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The HD quality document camera that makes ordinary lessons extraordinary.

Engage students like never before with the Epson® DC-21 document camera. This portable performer easily captures and displays books, 3D objects and experiments with amazing clarity, thanks to HD 1080p resolution, a large imaging sensor and HDMI® connectivity. Share the finest detail with 12x optical zoom and 10x digital zoom. Or, display magnified images with the microscope adapter. Record audio with video using the built-in microphone. At 30 fps, video playback is seamless. And, there are convenient Freeze and Capture buttons. Plus, you can save lessons to an SD card1 or computer.

Specifications

Camera

Effective sensor resolution: 2 MP
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS
Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA)
Maximum frame rate: 30 fps
White balance: Auto
Light exposure modes: Auto
Image freeze: Yes
Light source: LED

Lens system

Auto focus: Yes
Optical zoom: 12x
Digital zoom: 10x
Shooting area (WxD): 297 x 420 mm

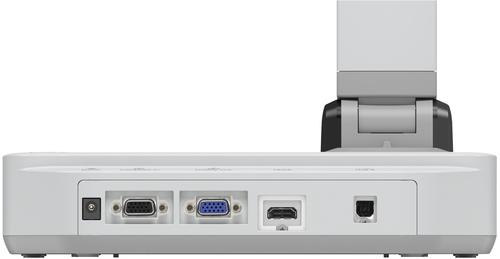

Ports & interfaces

Interface: USB 2.0
USB connector type: USB Type-B
VGA (D-Sub) input ports: 1
VGA (D-Sub) output ports: 1
Ethernet LAN: No

Technical details

Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington
Built-in microphone: Yes
Lamp type: LED
Lamps quantity: 2 lamp(s)
Focus: Auto
Zoom capability: Auto
Image formats supported: JPG

Power

Power supply type: AC
Power consumption (typical): 0.5 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power consumption: 13 mA

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Mac OS X 10.0 Cheetah, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
