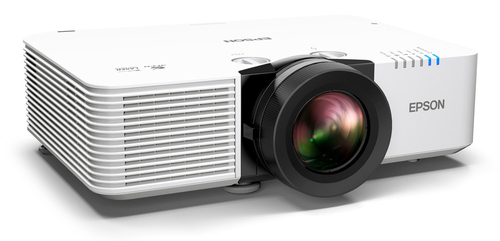

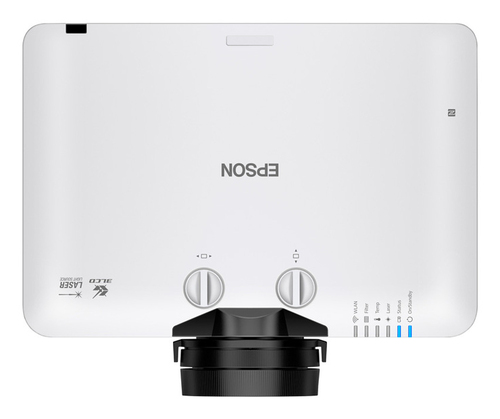

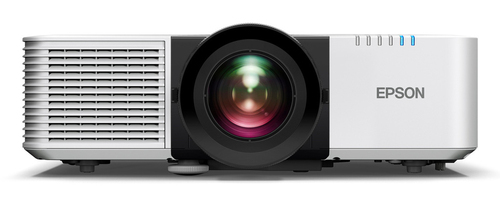

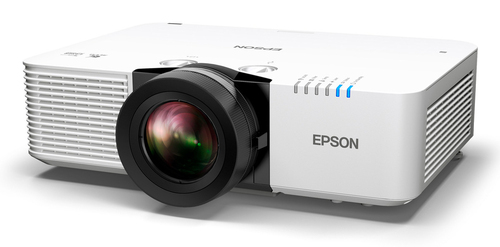

PowerLite L690SU Short throw projector 6200 ANSI lumens 3LCD WUXGA (1920x1200) White

Part # V11HB31020UPC 01034398899629.95 lb

6,200 lumens color/white brightness
WUXGA for clear, detailed images
0.79 – 1.36 throw, 1.7x zoom, up to 400" display
Lightweight, compact design allows for easy installation
30,000-hr laser light source & filter

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

This incredibly compact projector delivers larger-than-life images with a short 0.79 – 1.36 throw ratio.

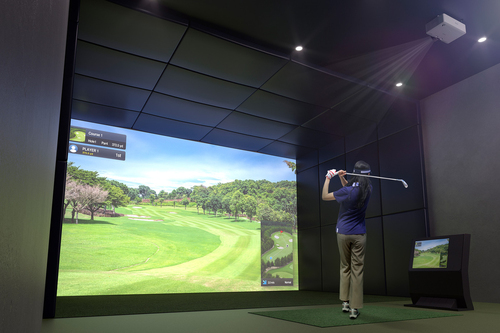

Experience the extraordinary versatility and performance of our bright and compact PowerLite® L-Series. Expanding on the possibilities of this powerful projector lineup, the PowerLite L690SU features an expansive 0.79 – 1.36 throw ratio and a large display up to 400''. With wide vertical and horizontal lens shifts and 1.7x optical zoom, the projector is ideal for a wide variety of applications, such as conference rooms, hybrid workspaces, golf simulation, museum exhibitions and more. Deliver bright images in rooms with high-ambient light with 6,200 lumens of equal color and white brightness1 and Full HD WUXGA resolution.

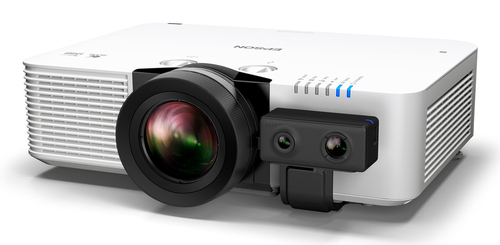

Simple to install, the PowerLite L690SU is easy to operate from start to finish. Built-in NFC functionality2, wide lens shift, 360-degree mounting, geometric correction tools and more allow for simple, seamless integration. Created with convenience in mind, the projector features an up to 30,000-hour virtually maintenance-free laser light source and air filter3 in Extended Mode. With built-in wireless communication, you can monitor and control your fleet remotely from a web browser using the Epson Projector Management Connected app, as well as enable advanced screen casting tools like Epson iProjection™4, Apple® AirPlay®5 and Miracast®4. In addition, simplify complex multi-projector applications with the optional attachable PixAlign™ camera.

Epson’s PowerLite L-Series offers a range of solutions to meet virtually any application. This lineup also features additional short throw options, including the PowerLite L690SE, designed for an even shorter 0.5 – 0.7 throw ratio.

Specifications

Projector

Supported aspect ratios: 16:10, 16:6, 21:9
Screen size compatibility: 1524 - 10160 mm (60 - 400")
Projection distance: 1.02 - 11.89 m
Projection distance (wide): 1 - 7 m
Projection distance (tele): 1.8 - 11.9 m
Projector brightness: 6200 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WUXGA (1920x1200)
Contrast ratio (typical): 5000000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 4340 ANSI lumens
Keystone correction, horizontal: -30 - 30°
Keystone correction, vertical: -30 - 30°

Light source

Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focus: Manual
Focal length range: 11.6 - 19.9 mm
Aperture range (F-F): 1.7 - 2.1
Zoom capability: Yes
Zoom type: Manual
Zoom ratio: 1.2:1
Throw ratio: 0.79 - 1.36:1
Horizontal lens shift range: -20 - 20%
Vertical lens shift range: -50 - 50%

Video

Analog signal format system: Not supported
Full HD: Yes
3D: No
Video colour modes: Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

Ports & interfaces

HDBaseT port: Yes
USB 2.0 ports quantity: 3
USB 2.0 Type-A ports quantity: 2
USB 2.0 Type-B ports quantity: 1
Serial interface type: RS-232C
HDMI ports quantity: 2
DVI port: No

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast: Yes
Apple AirPlay 2 support: Yes
