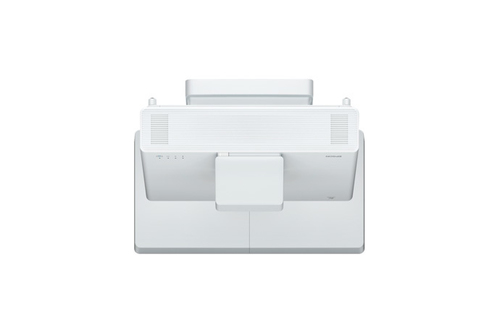

BrightLink 1480Fi Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White
- Draw, save, print and email without a PC; share whiteboard content to other network-connected BrightLink projectors
- Use free Epson iProjection software to connect, display and share content simultaneously to/from up to 50 connected devices
- Includes 1-year subscription and support for GoBoard Collaborative Whiteboarding Software
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Increase engagement and collaboration in classrooms and meeting spaces with the dynamic BrightLink 1480Fi 1080p1 3LCD interactive laser display. Designed with convenience in mind, this ultra bright, 5,000-lumen2 ultra short-throw projector offers easy installation and a virtually maintenance-free 20,000-hour laser light source with no lamps3. Offering a 16:9 display up to 100", the 1480Fi provides 75 percent more interactive space than 75" panels for a fully immersive display in meeting spaces and classrooms. With support for optional BrightLink touch modules , it allows up to eight users to work on a single interactive canvas. Plus, it comes with a host of PC-free features including collaborative whiteboard sharing, printing, emailing and more.
BrightLink training resources
browse training videos and resources for BrightLink interactive displays
Super bright
5,000 lumens color/white brightness2; 1080p Full HD laser display
Enhance learning environments
Large, 100" display provides 75 percent larger interactive area than 75" panels
Laser light source life
Virtually maintenance-free 20,000-hour laser light source with no lamps3
Pen-based interactivity
Turn almost any wall or existing whiteboard interactive; allows up to two users to write and draw at once
Time-saving installation
Automatic image alignment
BrightLink Interactive Displays
Transforming today’s meeting spaces and learning environments.
BrightLink features 3LCD technology for bold, brilliant color displays in settings with ambient light. BrightLink displays transform meeting spaces and classrooms into immersive collaborative environments where productivity is enhanced, creativity is on display, and participants fully-engaged. With images up to 120˝, flexible displays breathe new life into ordinary walls and dry erase boards, eliminating the need for dedicated electronic boards or space consuming flat panels.
Specifications
Projector
- Supported aspect ratios
- 4:3, 16:10
- Screen size compatibility
- 1651 - 2540 mm (65 - 100")
- Projector brightness
- 5000 ANSI lumens
- Projection technology
- 3LCD
- Projector native resolution
- 1080p (1920x1080)
- Contrast ratio (typical)
- 2500000:1
- Native aspect ratio
- 16:9
- Number of colours
- 1.07 billion colours
- Keystone correction, horizontal
- 3°
- Keystone correction, vertical
- 3°
- White light output
- 5000 ANSI lumens
- Colour light output
- 5000 ANSI lumens
Light source
- Light source type
- Laser
- Service life of light source
- 20000 h
- Service life of light source (economic mode)
- 30000 h
Lens system
- Focus
- Manual
- Fixed focal length
- 3.9 mm
- F-number (relative aperture)
- 1.5
- Zoom capability
- Yes
- Zoom ratio
- 1.35:1
- Throw ratio
- 0.27 – 0.37, 0.37 – 0.50, 0.30 – 0.42
Video
- Full HD
- Yes

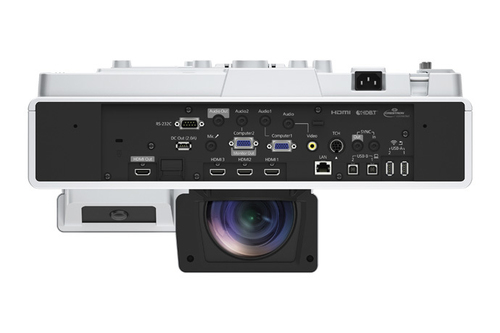

Ports & interfaces
- USB 2.0 ports quantity
- 2
- USB 2.0 Type-B ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Audio (L/R) in
- 1
- Audio (L/R) out
- 1
- Microphone in
- Yes
- Serial interface type
- RS-232C
- PC in (D-Sub)
- Yes
- VGA (D-Sub) ports quantity
- 2
- HDMI ports quantity
- 3
- Composite video in
- 1
- Component video (YPbPr/YCbCr) in
- 2
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Features
- Interactive
- Yes
- Interactive input supported
- Interactive pen/Touch
- Noise level (economic mode)
- 27 dB
- Projection modes
- Ceiling
- Noise level
- 36 dB
Multimedia
- Built-in speaker(s)
- Yes
- RMS rated power
- 16 W
- Number of built-in speakers
- 2
Design
- Market positioning
- Business
- Product type
- Ultra short throw projector
- Product colour
- White
- Placement
- Ceiling, Wall
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Power
- Power source
- AC
- Power consumption (standby)
- 2 W
- Power consumption (max)
- 381 W
- Power consumption (economy mode)
- 270 W
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Weight & dimensions
- Width
- 459 mm
- Depth
- 462 mm
- Height
- 375 mm
- Weight
- 9.7 g
Packaging content
- Remote control included
- Yes
- Batteries included
- Yes
- Cables included
- AC, USB Type-A
- Manual
- Yes
