EatonPower Distribution Units (PDUs)

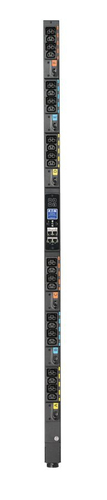

UniversalInput Managed PDU G4, 208V and 415/240V, 24 Outlets, Input Cable Sold Separately, 0U Vertical
- Three-phase Metered-by-outlet 0U Black
- 24 AC outlet(s) C13 coupler, C39 coupler
- 23000 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Eaton UniversalInput Managed PDU G4, 208V and 415/240V, 24 Outlets, Input Cable Sold Separately, 0U Vertical
Specifications
Design
- PDU types
- Metered-by-outlet
- Type
- Three-phase
- Rack capacity
- 0U
- Mounting
- Vertical
- Housing material
- Aluminium
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)
- AC outlet types
- C13 coupler, C39 coupler
Power
- Nominal input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 55 A
- Load capacity
- 23000 VA
- Maximum power
- 23000 W
Certificates
- Compliance certificates
- Federal Communications Commission (FCC), CE
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 51 mm
- Depth
- 1420 mm
- Height
- 65 mm
- Weight
- 5.08 kg
