EatonPower Distribution Units (PDUs)

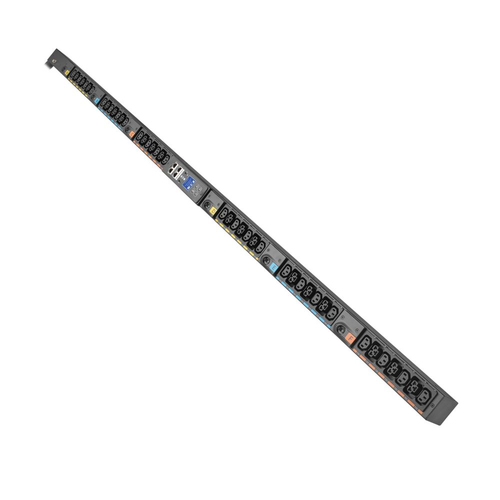

3Phase Managed Rack PDU G4 240/415V 42 Outlets 24A/32A 17.3kW 532P6W Input 10ft
- Three-phase Managed 0U Black
- 42 AC outlet(s) C13 coupler, C39 coupler
- 17300 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Eaton 3Phase Managed Rack PDU G4 240/415V 42 Outlets 24A/32A 17.3kW 532P6W Input 10ft. Cord 0U Vertical TAA
Specifications
Design
- PDU types
- Managed
- Type
- Three-phase
- Rack capacity
- 0U
- Mounting
- Vertical
- Housing material
- Aluminium
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 42 AC outlet(s)

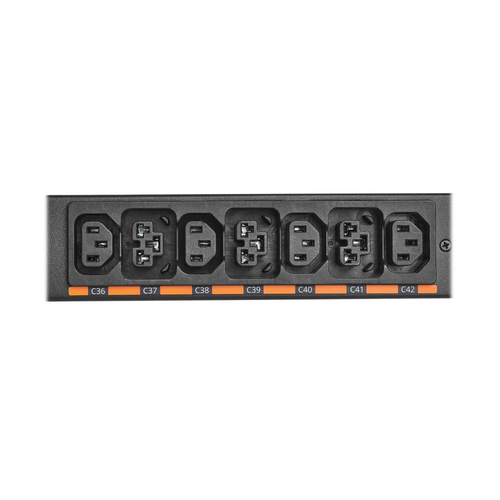

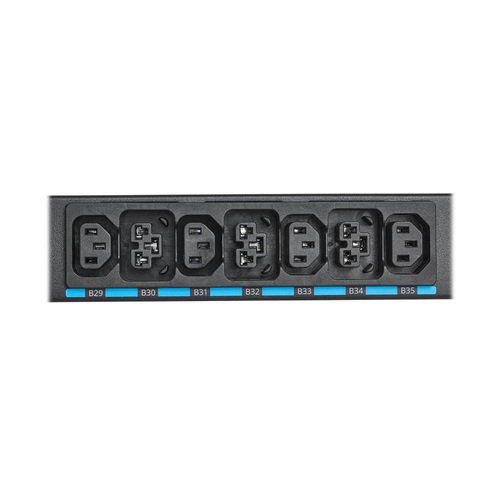

- AC outlet types
- C13 coupler, C39 coupler
Features
- Cable length
- 3 m
Power
- Nominal input voltage
- 240 - 415 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 32 A
- Maximum power
- 17300 W
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
Weight & dimensions
- Width
- 53 mm
- Depth
- 52 mm
- Height
- 1730 mm
- Weight
- 8.8 kg
