Home/Catalogue/Eaton/EVMA2120A
Drag to turn · 8 views
EatonPower Distribution Units (PDUs)

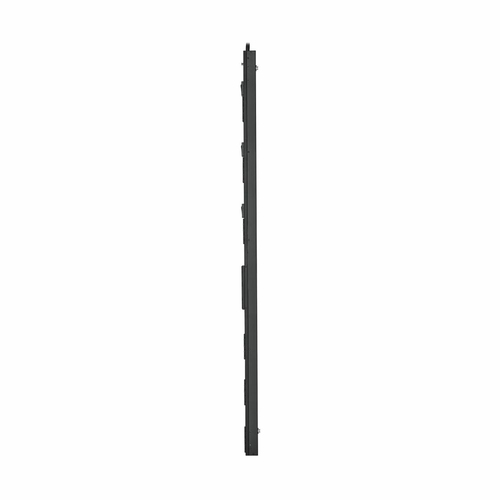

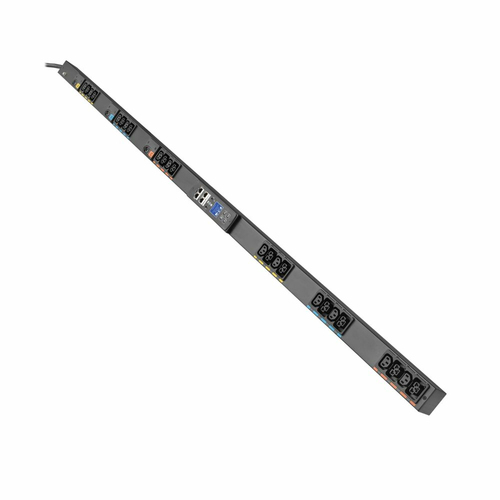

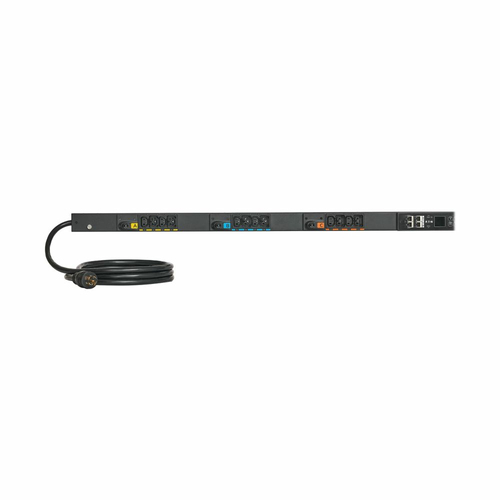

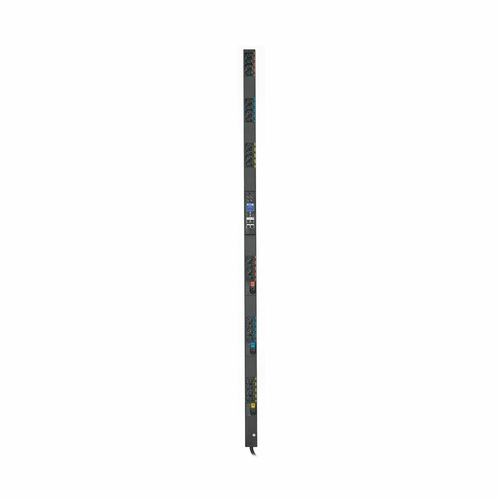

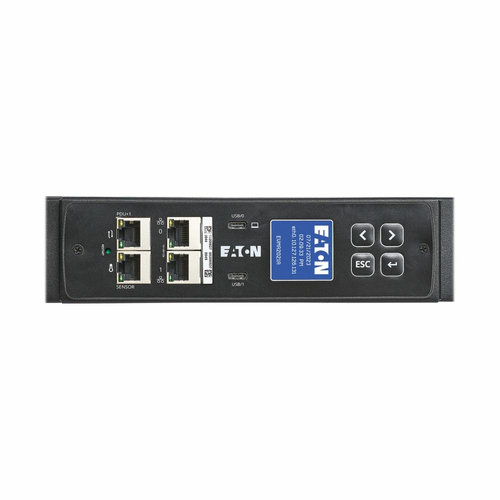

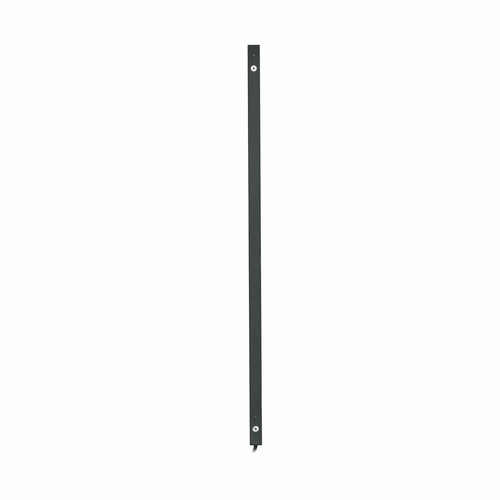

PDU G4 MA 0U L2120P 12xC13 12xC39
- Managed 0U Black
- 24 AC outlet(s) C13 coupler, C39 coupler
- 5800 W
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Design
- PDU types
- Managed
- Rack capacity
- 0U
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 24 AC outlet(s)

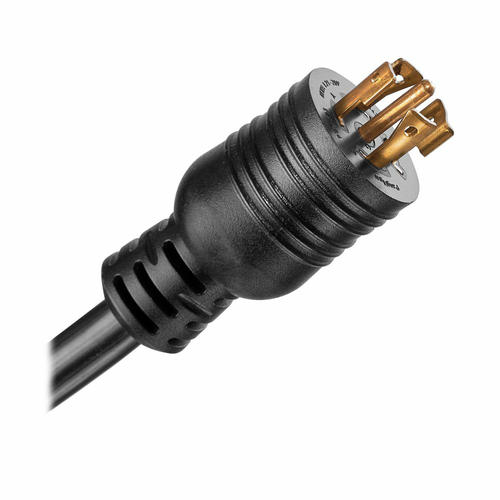

- Power plug
- NEMA L21-20P

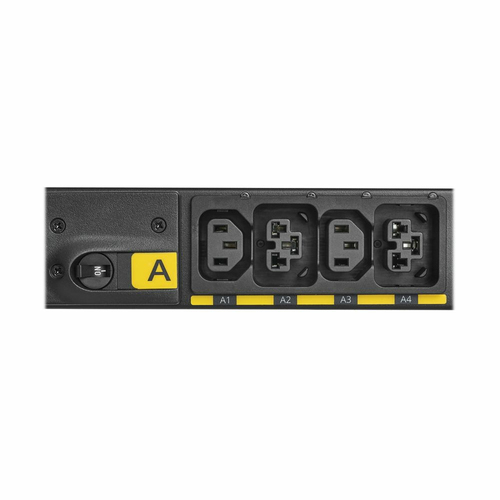

- AC outlet types
- C13 coupler, C39 coupler
Features
- Cable length
- 3 m
Power
- Nominal input voltage
- 120 - 208 V
- Maximum current
- 20 A
- Maximum power
- 5800 W
Certificates
- Certification
- cTUVus UL 62368-1 UL 2900-1 IEC 62443-4-2
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
Weight & dimensions
- Width
- 53.1 mm
- Depth
- 52.1 mm
- Height
- 1729.7 mm
- Weight
- 5.81 kg
Downloads
