100 m with Multimode 50/125
- SFP28 Fiber optic 25000 Mbit/s
- Wavelength: 850 nm
- Hot-Plug support
- Input voltage: 3.3 V
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

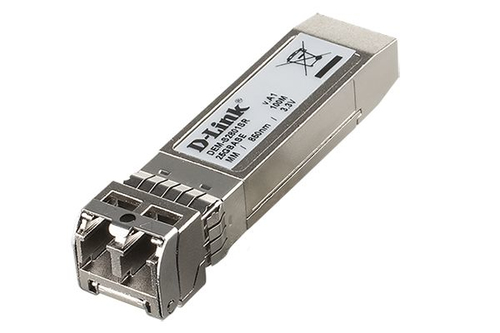

D-Link’s 25G SFP28 Module series are hot-swappable SFP28 transceivers that are plugged into SFP28 slots on switches and support 25G Ethernet. The transceivers use the Small Form-factor Pluggable 28 format (SFP28) connectors. The D-Link 25G SFP28 Module Series transceivers offer customers a wide variety of 25G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Hot Pluggable
All D-Link transceivers are hot pluggable. You can connect atransceiver while the system is powered on without causing any issues, and easily swap one for another without having to reboot the switch each time. This permits modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
25G Ethernet speeds
The transceivers support 25G Ethernet, which results in very fast data transmissions of up to 25 Gbit/s. This is 25 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.
Specifications
Performance
- SFP transceiver type
- Fiber optic
- Maximum data transfer rate
- 25000 Mbit/s
- Interface type
- SFP28
- Multi-mode fiber (MMF) supported
- Yes
- Fiber optic connector
- LC
- Fiber cable diameters supported (core/cladding)
- 50/125 µm
- SFP transceiver standard
- SR
- Maximum transfer distance
- 100 m
- Wavelength
- 850 nm
- Tx power (min)
- -9.1 dBmW
- Tx power (max)
- 2.4 dBmW
- Rx power (min)
- -11 dBmW
- Rx power (max)
- 2.4 dBmW
- Fiber ethernet cabling technology
- 25GBASE
Features
- Hot-Plug support
- Yes
Power
- Input voltage
- 3.3 V
- Maximum current
- 0.3 A
Certificates
- Certification
- MSA, RoHS, CE, FCC, VCCI, LVD, EN 60825-1, EN 60825-2
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 57.3 mm
- Depth
- 13.7 mm
- Height
- 8.5 mm
- Weight
- 25 g
