D-LinkSecurity Cameras

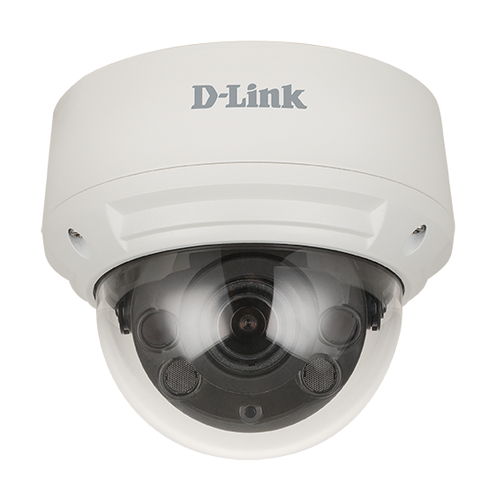

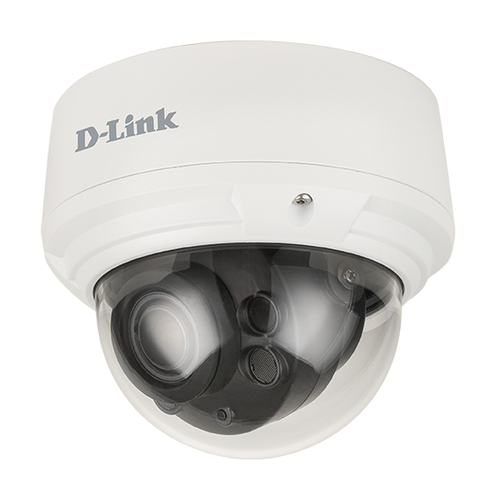

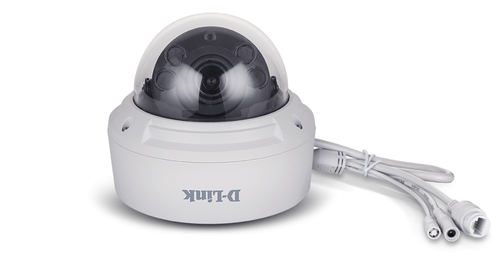

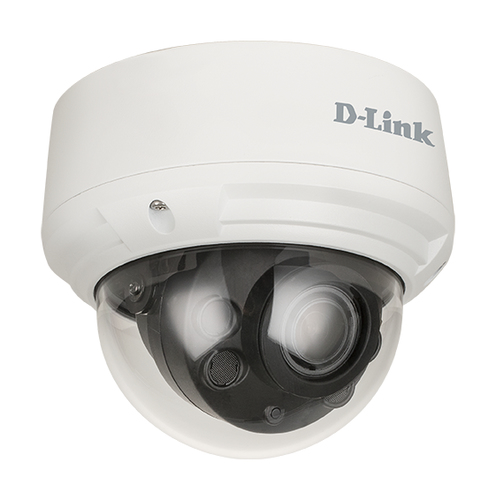

8 Megapixel H.265 Outdoor Dome Camera DCS‑4618EK

Part # DCS-4618EKUPC 790069458927Warranty: 2 Years2.2 lb

4K Ultra HD 8-megapixel sensor
Vandal-proof IK10-housing
IP66 Weather-Resistant
Motorised varifocal lens
30m Night Vision with WDR & LowLight+
PoE for easy installation

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Professional Surveillance in Vandal‑proof 4K Ultra High Definition

An 8 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.

4K Ultra HD Resolution

8-megapixel sensor with 4K Ultra HD resolution up to 3840 x 2160 for detailed footage

Vandal-proof

IK10-rated housing for protection against physical impacts

Weather-Resistant

IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C

Day & night surveillance

Built-in IR LED illuminators with 30-meter range for pitch-black areas

PoE Capable

Supports 802.3af PoE for flexible and simple installation

Storage options

Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or NAS

Wide Dynamic Range with LowLight+

Improved image quality in high-contrast conditions with WDR & optimised for low-light environments

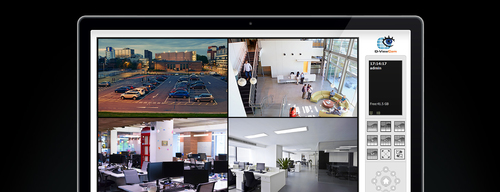

Free Video Management Software

Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive

High quality videos, whatever the lighting

Video resolutions of up to 3840 x 2160 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4618EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.

Viewing Angles

(H) 108.6° - 35°

(V) 56° - 21°

(D) 125° - 42°

High Quality Lens

Motorised varifocal 3.3 - 12 mm lens with an F1.4 aperture

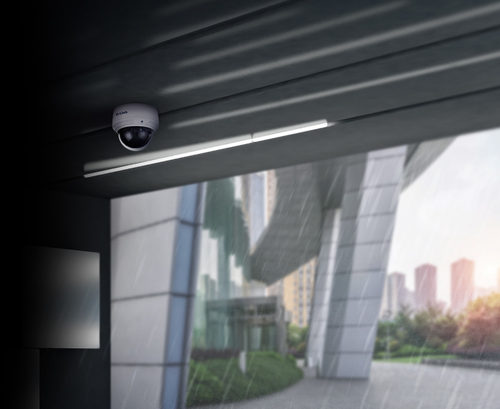

Versatile Monitoring in All Environments

IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.

Weather resistant

Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.

Specifications

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
PTZ control: Yes
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Certification: CE, FCC, RCM

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: White
Protection features: Vandal proof
International Protection (IP) code: IP66
IK code: IK10

Camera

Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0 lx
Angle of rotation: 355°
Lens viewing angle, horizontal: 108.6°
Lens viewing angle, vertical: 56°
Lens viewing angle, diagonal: 125°
Tilt angle range: 10 - 90°
Pan range: 0 - 355°
White balance: Auto
Camera shutter type: Electronic

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
Sensor type: CMOS

Lens system

Digital zoom: 18x
Focal length range: 3.3 - 12 mm
Maximum aperture number: 1.4
Closest focusing distance: 0.5 m

Night vision

Night vision: Yes
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP

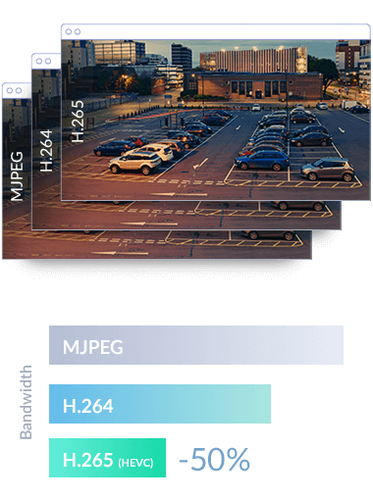

Video compression formats: H.264, H.265, M-JPEG
Video recording: Yes
Frame rate: 20 fps
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Gain control type: Auto
Privacy masking: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Supported network protocols: IPv4, HTTP/HTTPS,RTSP/RTP/RTCP, TCP, UDP, DHCP, DNS, DDNS, NTP, FTP, SMTP, Client, ONVIF Profile S compliant, ARP, ICMP, PPPoE, SNMP v1/v2c/v3
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), SDHC, SDXC
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Video motion detection: Yes
Alert notification type: E-mail, Snapshot alert message
Motion sensor: Yes

Management features

Web-based management: Yes
Firmware upgradeable: Yes
Reset button: Yes

Power

Power source type: AC, DC, PoE
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 8 W
DC output voltage: 12
DC output current: 1.5 A

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 90%

System requirements

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
