8 Outlets, 12 ft, NEMA 515P, Black

Part # PDU41001GUPC 6495329382167.8 lb

Dual Gigabit Ethernet Ports
Redundant Loop
Switchable Outlets
CyberPower Management Console
Remote and Local Monitoring

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

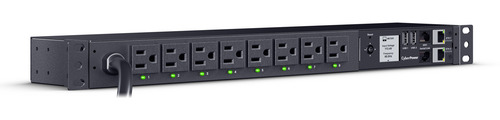

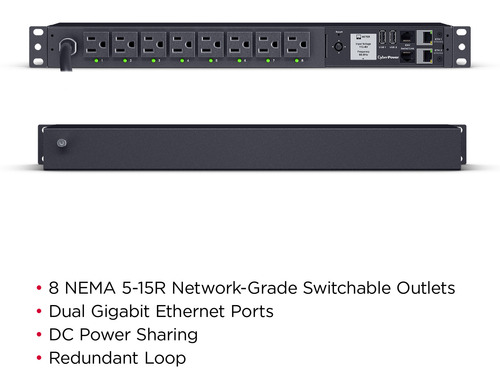

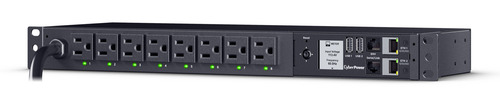

The CyberPower PDU41001G, an 8-outlet (front), 1U rackmount gigabit switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15 plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.

Outlets can be turned on, turned off, or recycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads.

Dual Gigabit Ethernet Ports

Dual network gigabit 10/100/1000 ethernet ports for redundancy and seamless connectivity to modern switching infrastructure.

Redundant Loop

If one PDU experiences a power failure, the rest of the PDUs will remain connected to the network.

Switchable Outlets

Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.

CyberPower Management Console

Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

Remote and Local Monitoring

The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.

Automatic Event Notifications

Provide immediate updates about power events via email, SMS text, or SNMP traps.

Digital Display

Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.

Configurable Mounting Brackets

Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

Network-Grade Plugs and Outlets

Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

Specifications

Design

PDU types: Switched
Type: Single-phase
Rack capacity: 1U
Mounting: Horizontal/Vertical
Housing material: Steel
Product colour: Black
Display: LCD
On/off switch: Yes

Ports & interfaces

AC outlets quantity: 8 AC outlet(s)

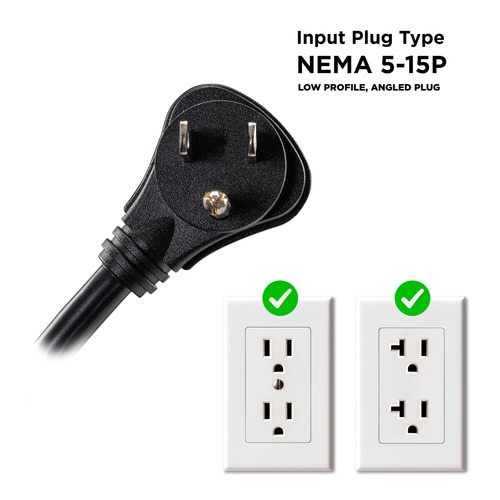

Power plug: NEMA 5-15P
AC outlet types: NEMA 5-15R
Serial ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
USB ports quantity: 2

Features

LED indicators: TX / RX, Link, Status
Cable length: 3.7 m

Management features

Monitoring: Current, Power, Voltage
Supported network protocols: IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
