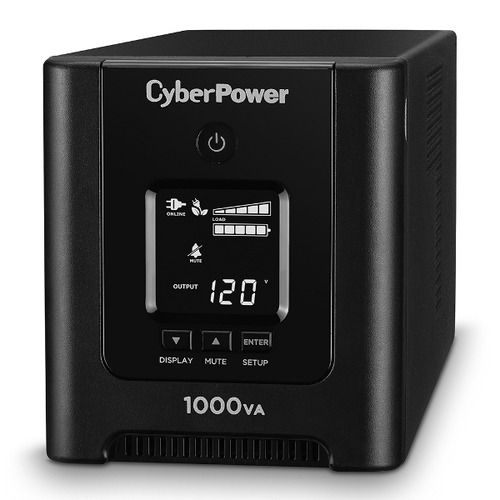

CyberPower OR1000PFCLCD Drag to turn · 3 views
CyberPowerUninterruptible Power Supplies (UPSs)

Sine Wave LCD AVR 8 Out 5-15R 15A TWR 3YR Warranty

Part # OR1000PFCLCDUPC 649532618569Warranty: 3 Years Limited26.95 lb

  • Line-Interactive
  • 1 kVA 700 W
  • 8 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Mini Tower Black
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

The CyberPower PFC Sinewave OR1000PFCLCD mini-tower uninterruptible power supply (UPS) with Multifunction LCD and pure sine wave output is Active PFC compatible for safeguarding networking hardware, network-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies. Its Automatic Voltage Regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.

CyberPower's OR1000PFCLCD with pure sine wave output solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 6.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower's innovative UPS technology is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.

The OR1000PFCLCD unit has a capacity of 1000VA / 700W, eight (8) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/8.5Ah batteries. The front LCD panel displays all major UPS vitals for ease of use and provides user selectable options to customize performance. This unit offers connectivity via one (1) HID USB and one (1) DB9 port. EMI/RFI filters decrease the susceptibility of the load to noise disturbances.

This UPS incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and agent/client control of up to 25 clients. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $200,000 Connected Equipment Guarantee.

Specifications

Features

UPS topology
Line-Interactive
Output power capacity
1 kVA
Output power
700 W
Input operation voltage (min)
78 V
Input operation voltage (max)
142 V
Input frequency
50/60 Hz
Output operation voltage (min)
120 V
Output operation voltage (max)
120 V
Automatic Voltage Regulation (AVR)
Yes
Surge energy rating
1030 J
EMI/RFI noise filtering
Yes
Surge protection
Yes
Power protection features
Overload

Ports & interfaces

AC outlet types
NEMA 5–15R
Power plug
NEMA 5-15P
AC outlets quantity
8 AC outlet(s)
USB 2.0 ports quantity
1

Battery

Battery technology
Sealed Lead Acid (VRLA)
Number of batteries supported
1
Typical backup time at full load
2 min
Typical backup time at half load
10 min
Battery recharge time
8 h

Design

Form factor
Mini Tower
Cable length
1.8 m
Product colour
Black

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m

Certificates

Compliance certificates
RoHS

Safety regulation & standards

Safety
UL1778 4th, cUL 107.3-05, FCC/DoC Class B

Sustainability

Sustainability certificates
ENERGY STAR

Weight & dimensions

Width
137 mm
Depth
163 mm
Height
351 mm
Weight
11.2 kg
