6KVA/6KW, High Density, Long Run Time, Online DoubleConversion, PF=1, 3U rack/tower, 200240V Input
- Double-Conversion Topology
- Sine Wave Output
- Full Matrix LCD Control Panel
- Toolless Front Panel
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

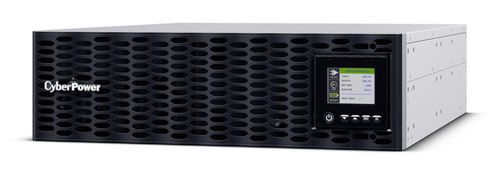

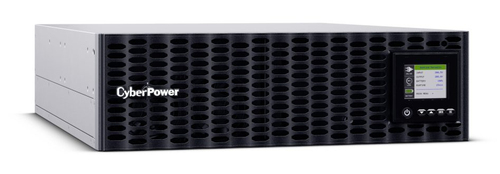

The CyberPower Smart App Online OL6KRTHDL high-density design offers more power and longer run times. The OL6KRTHDL features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

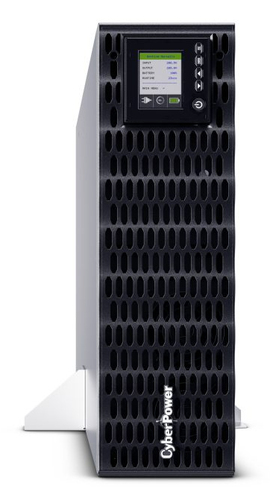

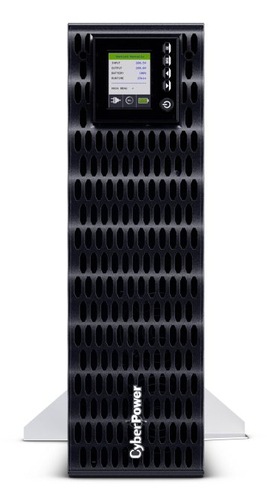

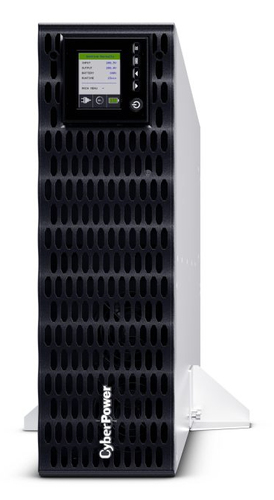

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL6KRTHDL ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it’s all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 6 kVA
- Output power
- 6000 W
- Waveform
- Sine
- Input operation voltage (min)
- 200 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 196 V
- Output operation voltage (max)
- 245 V
- Output frequency
- 50/60 Hz
- Output frequency regulation
- 1 Hz
- Output voltage regulation
- 2%
- Maximum current
- 30 A
- Surge energy rating
- 2430 J
- Heat dissipation
- 1307 BTU/h
- Number of input phases
- 1
- Number of output phases
- 1
- Efficiency
- 96%
- EMI/RFI noise filtering
- Yes
- Noise level
- 66 dB

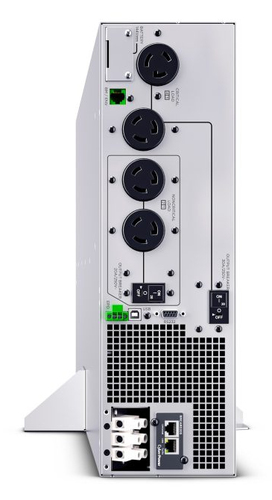

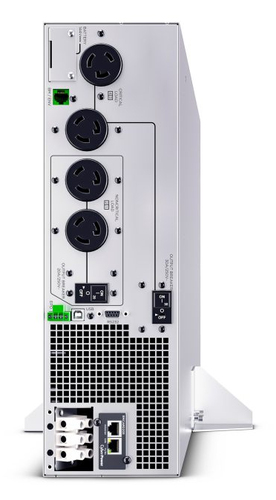

Ports & interfaces

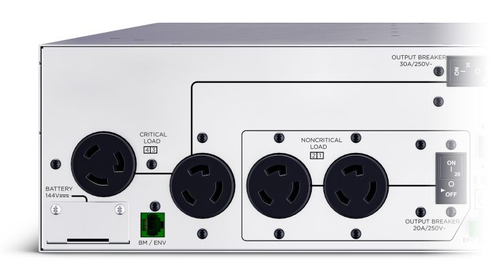

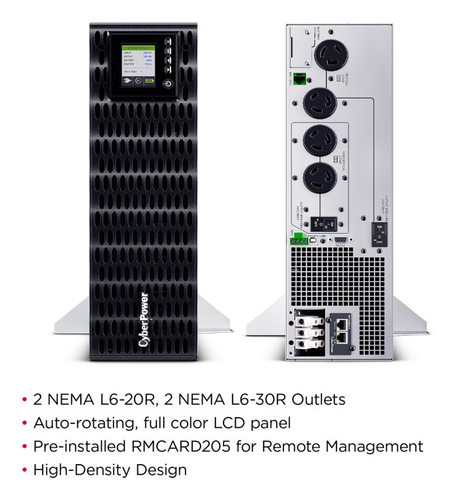

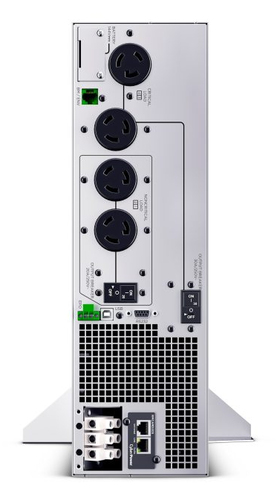

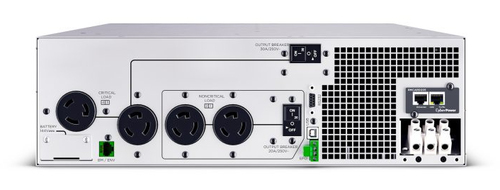

- AC outlet types
- NEMA L6-20R, NEMA L6-30R
- Power plug
- NEMA L6-30P
- AC outlets quantity
- 4 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- USB port type
- USB Type-B
- Serial interface
- Yes
- Serial interface type
- RS-232
- Serial ports quantity
- 1
- RS-232 ports
- 1
Battery
- Battery replacement accessibility
- End-user
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 3.1 min
- Typical backup time at half load
- 10.4 min
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Cold start
- Yes
- Replacement battery cartridge
- RB1290X12
Design
- Form factor
- Rackmount
- Rack capacity
- 3U
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Power
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 45 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15239 m
Certificates
- Compliance certificates
- UL, cUL, CSA, Federal Communications Commission (FCC)
Weight & dimensions
- Width
- 599.4 mm
- Depth
- 1099.8 mm
- Height
- 289.6 mm
- Weight
- 65.3 kg
