CyberPowerUninterruptible Power Supplies (UPSs)
2U (12) Nema 5-20R
- Step-down transformer: 5,000 VA / 5,000 W
- Output: 120V, 208V, 50/60 Hz
- Power conversion: 208V from utility, UPS, or generator to
- 120V output
- Plug type & cord: 3 ft NEMA L6-30P power cord
- Outlets: (12) NEMA 5-20R
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Converts 208V input voltage originating from utility power, a UPS, or a generator to 120V output

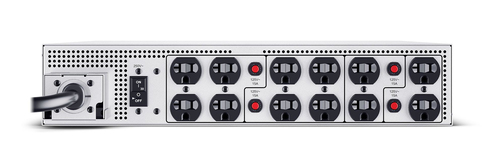

The CyberPower Smart App Online OL5KSTF rack/tower step-down isolation transformer converts utility power, UPS, or a generator input voltage ranging from 200 V to 240V to 120 V output.
The OL5KSTF has a capacity of 5,000 VA / 5,000 Watts. It features twelve (12) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. Over temperature protection safeguards your OL5KSTF from damage if the internal heat exceeds safe operating parameters.
A Three-Year Warranty ensures that this transformer has passed our highest quality standards in design, assembly, material or workmanship.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 5 kVA
- Output power
- 5000 W
- Input operation voltage (max)
- 208 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 208 V
- Output frequency
- 50/60 Hz
- Maximum current
- 30 A
- Noise level
- 58 dB
Ports & interfaces
- AC outlet types
- NEMA 5–20R
- AC outlets quantity
- 12 AC outlet(s)
Design
- Form factor
- Rackmount
- Housing material
- Metal
- Rack capacity
- 2U
- Cable length
- 0.9 m
- Product colour
- Black, Silver
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 45 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3048 m
- Non-operating altitude
- 0 - 15239 m
Certificates
- Compliance certificates
- RoHS
- Certification
- UL1778 5th Ed. CSA C22.2 No.107.3-05 RoHS
Weight & dimensions
- Width
- 431.8 mm
- Depth
- 599.4 mm
- Height
- 86.4 mm
- Weight
- 38 kg
Packaging data
- Package width
- 599.4 mm
- Package depth
- 899.2 mm
- Package height
- 330.2 mm
- Package weight
- 52.5 kg
