Home/Catalogue/CyberPower/OL2200RTXL2UN
Drag to turn · 7 views
Sinewave LCD 5-20R 100-125V RMCARD205 RT 3YR WTY
- Double-conversion (Online)
- 2.2 kVA 1800 W
- Waveform: Sine
- 7 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Rackmount/Tower Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

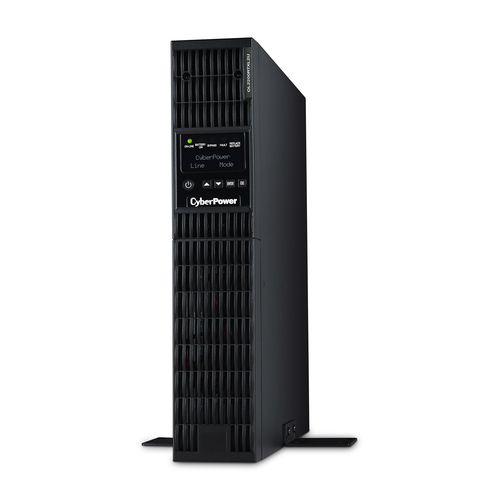

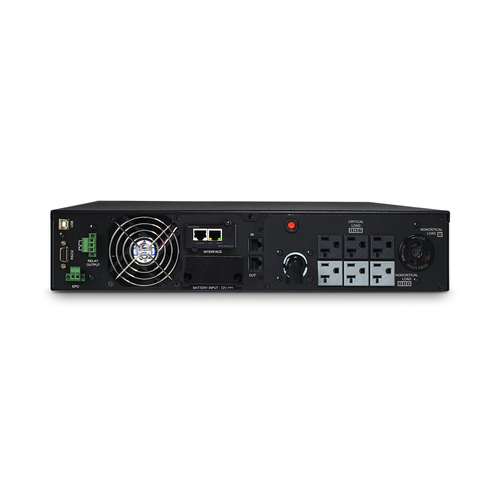

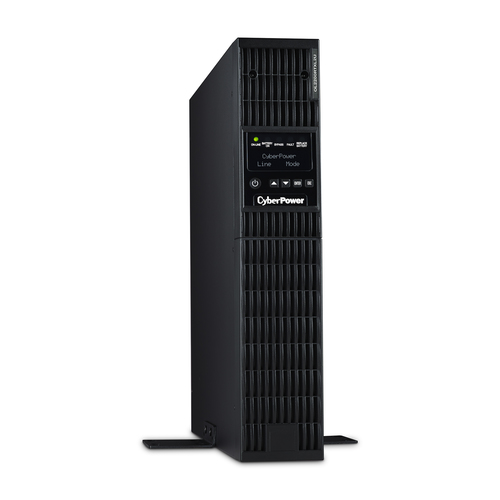

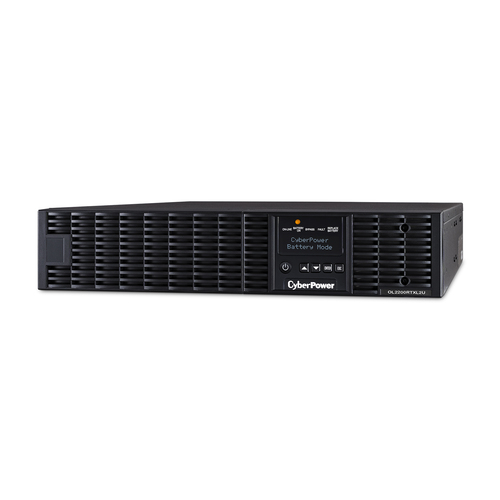

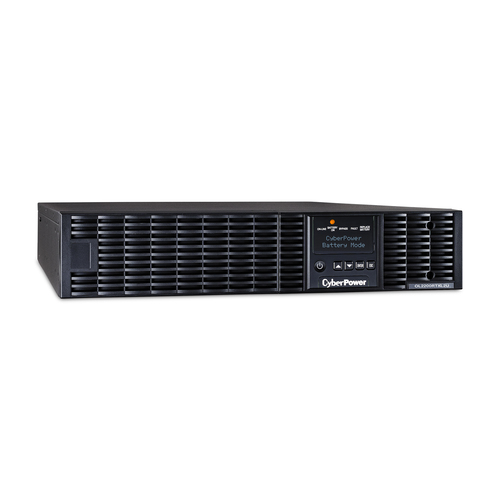

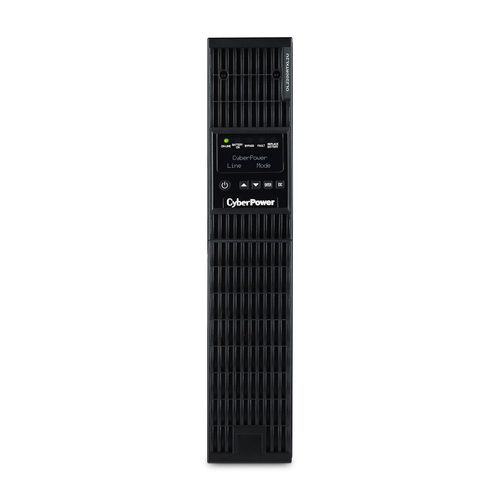

The CyberPower OL2200RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL2200RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to high quality.
Double-Conversion Topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. With the conversion to DC power, the UPS has a zero millisecond transfer time to battery power when utility power is lost. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
PowerPanel® Business Edition Software
Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.
RMCARD205
Is a full-featured network management card. It enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.
LCD Control Panel
Displays UPS status data and configures operating settings from up to 10 ft. away (DB26 cable not included). The LCD control panel displays and allows configuration of IP address settings when an RMCARD205 is installed.
Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores a complete charge within 4 hours regardless of the number of EBMs.
Smart Battery Management (SBM)
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
GreenPower UPS™ ECO Mode
Improves UPS efficiency up to 95% reducing electrical and cooling costs.
Hot-Swappable Batteries
Keep equipment running by eliminating downtime during UPS battery replacement.
Upgradeable UPS firmware
Manages the unit’s features and functions.
Critical & Non-Critical Load Banks
Maximize the output of the UPS by setting non-critical loads to shut off allowing additional runtime for critical load outlets.
Emergency Power Off (EPO)
Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
Generator Compatible
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 2.2 kVA
- Output power
- 1800 W
- Waveform
- Sine
- Input operation voltage (min)
- 60 V
- Input operation voltage (max)
- 150 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 100 V
- Output operation voltage (max)
- 125 V
- Output frequency
- 50/60 Hz
- Output frequency regulation
- 0.25 Hz
- Output voltage regulation
- 2%
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 1335 J
- Response time
- 0 ms
- Efficiency (ECO mode)
- 95%
- Input power factor
- 0.99
- Output power factor
- 0.82
- Crest factor
- 3:1
- ECO mode
- Yes
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 3%
- EMI/RFI noise filtering
- Yes
- Noise level
- 55 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Fault, Low battery alarm, Overload alarm
Ports & interfaces
- AC outlet types
- NEMA 5–20R, NEMA L5-20R
- Power plug
- NEMA 5-20P
- AC outlets quantity
- 7 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RJ-45
- Serial ports quantity
- 1
- Modem (RJ-11) ports
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Emergency Power Off (EPO) connector
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 9 Ah
- Battery voltage
- 12 V
- Number of battery cells
- 6
- Typical backup time at full load
- 6.5 min
- Typical backup time at half load
- 20 min
- Battery recharge time
- 4 h
- Hot-swap battery
- Yes
- Replacement battery cartridge
- RB1290X6A
Design
- Form factor
- Rackmount/Tower
- Housing material
- Metal
- Rack capacity
- 2U
- Cable length
- 3 m
- Built-in fan
- Yes
- Product colour
- Black
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 45 °C
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
Certificates
- Compliance certificates
- RoHS
- Certification
- UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A
Packaging content
- Rack mount kit
- Yes
- Cables included
- Phone (RJ-11), Serial, USB cable
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 432 mm
- Depth
- 600 mm
- Height
- 89 mm
- Weight
- 30.9 kg
Packaging data
- Package width
- 558.8 mm
- Package depth
- 882.6 mm
- Package height
- 234.9 mm
- Package weight
- 35.2 kg
