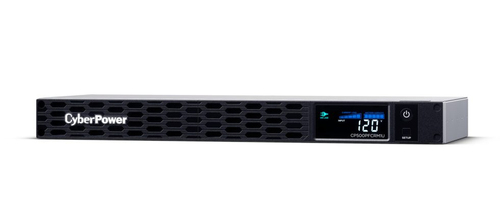

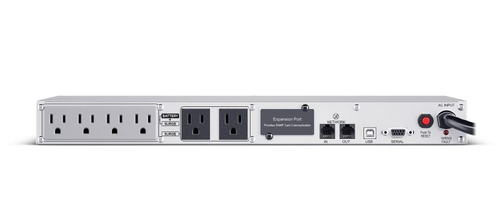

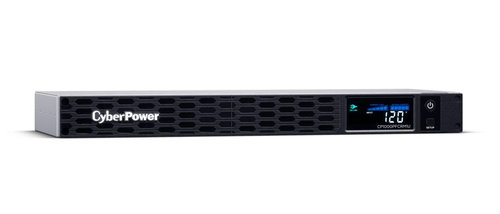

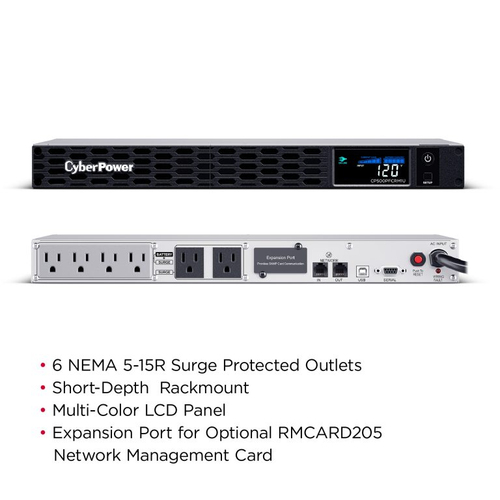

PFC Sinewave uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W 6 AC outlet(s)

Part # CP500PFCRM1UUPC 649532936878Warranty: 3 years19.1 lb

Battery Backup
Surge Protection
Sine Wave Output
EMI/RFI Noise Filter
Multifunction LCD Panel with Color Display

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The CP500PFCRM1U is a PFC Sinewave rackmount UPS that provides battery backup (using sine wave output), surge protection, and EMI/RFI filtration for security systems, audio/visual equipment, and networking equipment requiring active PFC power source compatibility.

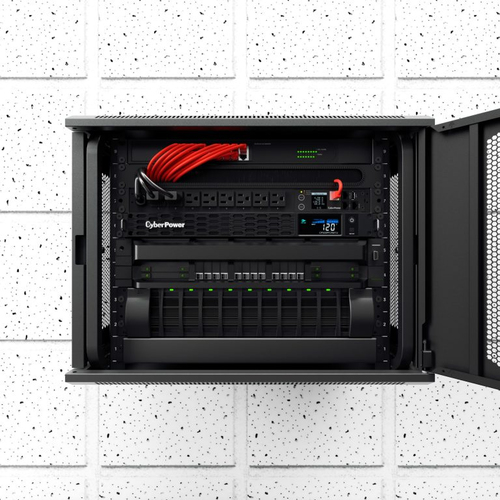

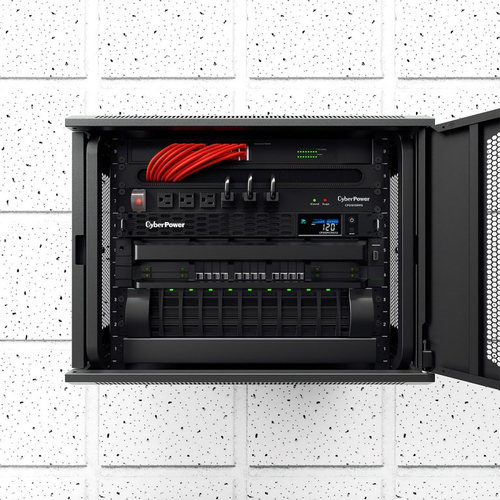

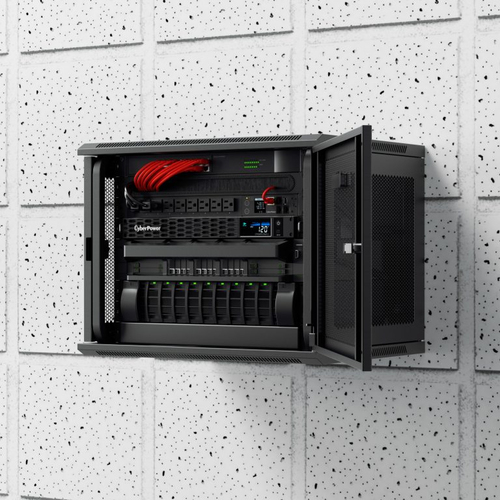

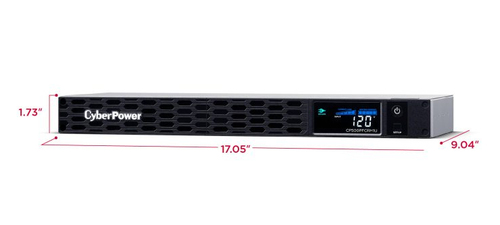

The CP500PFCRM1U features Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power, and a multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. Remote management and/or monitoring is available with optional purchase of a Remote Network Management Card or Cloud Monitoring Card. At only 9.04 inches in depth, the CP500PFCRM1U fits comfortably in short-depth rack installations where space is at a premium.

The CP500PFCRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 Connected Equipment Guarantee.

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 0.5 kVA
Output power: 300 W
Waveform: Sine
Input operation voltage (min): 88 V
Input operation voltage (max): 144 V
Input frequency: 57/63 Hz
Output operation voltage (max): 120 V
Output frequency: 60 Hz
Maximum current: 15 A
Surge energy rating: 1150 J
Response time: 8 ms
Power factor: 0.6
EMI/RFI noise filtering: Yes
Surge protection: Yes
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
