48VDC/70A 12V/7Ah
- Extended Battery Module (EBM)
- Fast Charge Technology
- Smart Battery Management
- Hot-Swappable Batteries
- Rack/Tower Configuration
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Product Overview

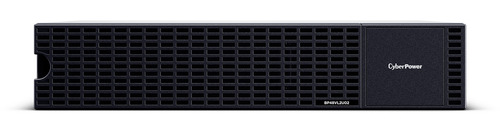

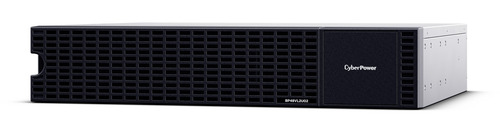

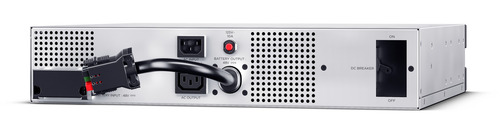

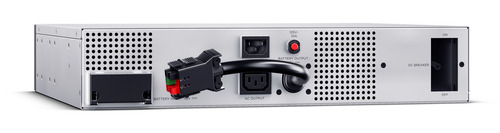

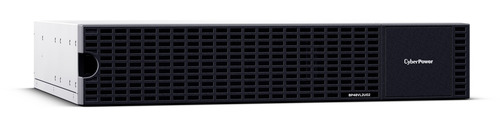

The CyberPower BP48VL2U02 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL3KRM.

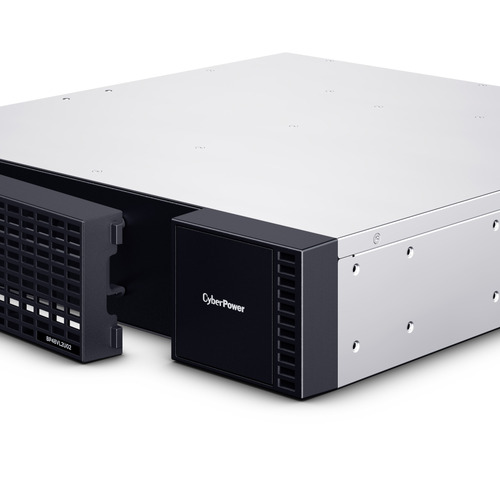

The BP48VL2U02 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Toolless front panel removal makes battery replacement easier.
Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.

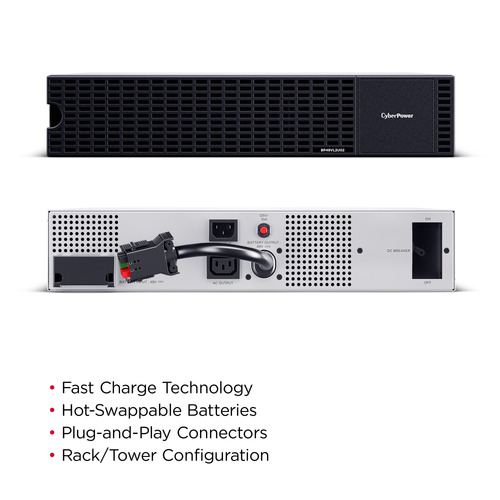

Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs.
Smart Battery Management
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.
Rack/Tower Configuration

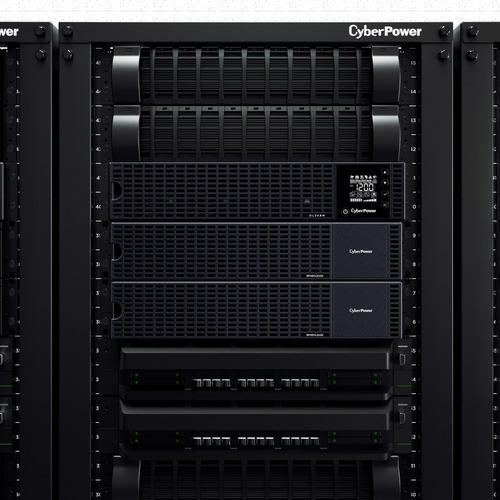

Allows for horizontal rack or vertical tower installation.
Specifications
Features
- Battery voltage
- 48 V
- Battery capacity
- 7 Ah
- Number of batteries included
- 8 pc(s)
- Product colour
- Silver
- Hot-swap battery
- Yes
- Compatibility
- CyberPower UPS systems OL3KRM
Certificates
- Compliance certificates
- RoHS
- Certification
- UL 1778 CSA C22.2 NO.107.3 FCC Part 15 Class A
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
Weight & dimensions
- Weight
- 27.5 kg
- Width
- 433 mm
- Height
- 87 mm
- Depth
- 465 mm
Packaging data
- Package width
- 558.8 mm
- Package height
- 228.6 mm
- Package depth
- 565.1 mm
- Package weight
- 31.3 kg
- Package weight
- 31.29 kg
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 0.9%
- Storage relative humidity (H-H)
- 0 - 0.95%
