ChiefTV Mounts & Stands

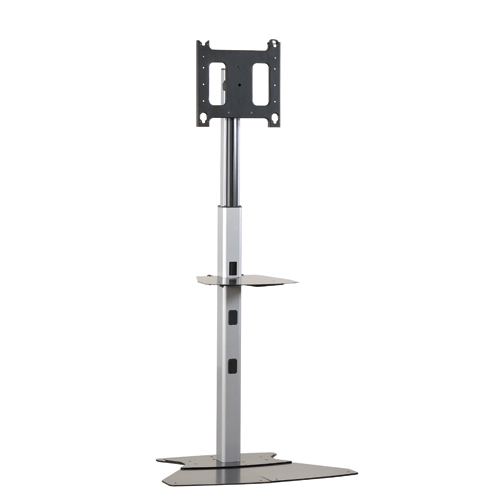

4' - 7' LFP Floor Stand
- Centris Technology provides effortless, fingertip tilt
- Screen angle stays set in place until you decide to re-adjust
- Provides telescoping height adjustment without tools
- ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
- Offers quick connect/disconnect wtih no tools necessary
- Includes integrated security with the addition of a padlock
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
A solid, low-profile solution for mounting a flat panel on a floor AV stand.
01

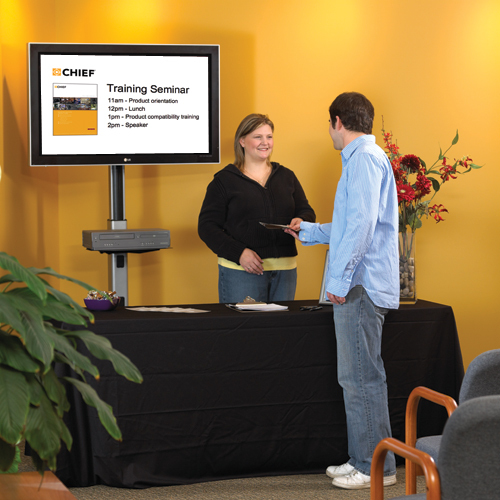

Ideal for digital signage and corporate presentations
02
PF1UB and PF1US ship with a universal interface bracket
PF12000B and PF12000S require an MSB interface, like the PSBUB to be purchased separately
03
PAC710 height-adjustable accessory shelf shown is sold separately
Consider adding a PACTP1 Touchpanel Stabilizer accessory for improved rigidity for touchpanel applications.
Specifications
Mounting
- Maximum weight capacity
- 90.72 kg
- Minimum screen size
- 106.7 cm (42")
- Number of displays supported
- 1
- Maximum screen size
- 2.18 m (86")
- Minimum VESA mount
- 200 x 200 mm
- Maximum VESA mount
- 800 x 400 mm
- Panel mounting interface
- 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,700 x 400,800 x 400
- Mounting type
- Wall
Ergonomics
- Height adjustment
- Yes
- Height adjustment range
- 1300 - 2100 mm
- Tilt adjustment
- Yes
- Tilt angle range
- -15 - 15°
- Cable management
- Yes
- Telescopic
- Yes
Design
- Product colour
- Black
- Housing material
- Steel
Technical details
- Base type
- Floor plate
Packaging content
- Mounting kit
- Yes
Weight & dimensions
- Width
- 914 mm
- Depth
- 762 mm
- Height (max)
- 2.39 m
- Weight
- 65 kg
Packaging data
- Package weight
- 65.3 kg
Logistics data
- Harmonized System (HS) code
- 85299097
Other features
- Adjustable
- Yes
