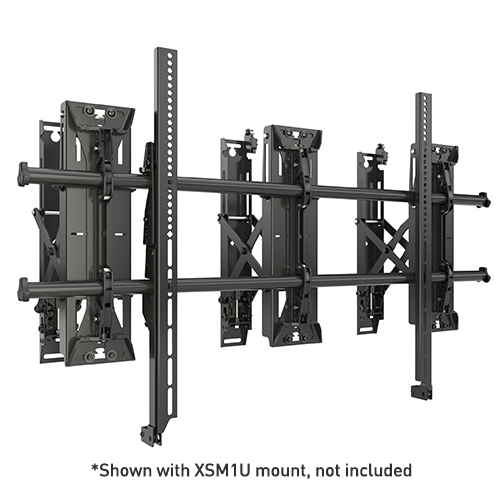

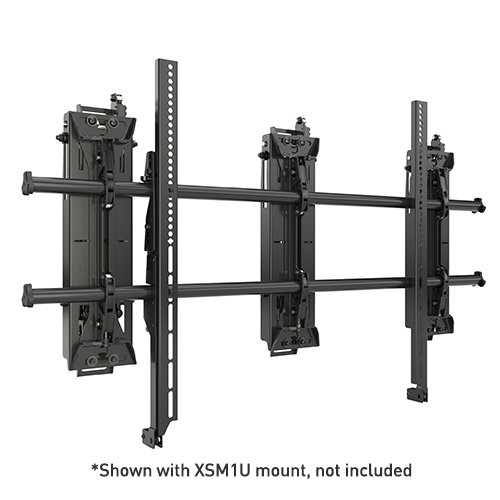

Fusion® Extra-Large Pull Out Accessory
- The Fusion™ Extra-Large Pull Out accessory can be used with Fusion™ Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54" (293 mm) extension from the wall
- Compatible display mount models are XSM1U and XTM1U
- Optionally install Chief storage solutions such as the PAC526 in-wall box or on-wall CSPR component storage panel to secure AV equipment behind the display
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The Fusion® Extra-Large Pull Out accessory can be used with Fusion® Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54" (293 mm) extension from the wall.
Compatible display mount models are XSM1U and XTM1U.

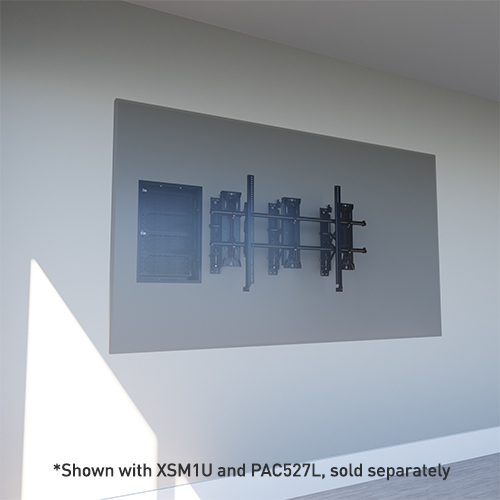

Optionally install Chief storage solutions such as the PAC526 in-wall box or on-wall CSPR component storage panel to secure AV equipment behind the display.
Up to 11.54” (293 mm) extension when combined with Fusion mount - great for recessed applications
Scissor assembly extends out up to 9.5"
Plumb adjust to keep display in line with the wall
Latch to secure mount in home position
Compatible with Fusion Extra-Large Micro-Adjustable Fixed and Tilt mounts for installation of 80”+ displays (up to 250 lb / 113 kg)
Minimum Depth: Retracted depth without mount: 1.56" (39 mm)
FCAXV1U Weight Capacity
Mounting substrate
With XTM1U (lbs)
With XSM1U (lbs)
Triple 16"" on center steel stud
200
200
Triple 16"" on center wood stud
250
200
3/4"" Plywood backed steel stud
250
200
Solid Concrete block
250
200
Hollow Concrete block
250
200
Specifications
Features
- Product colour
- Black
- Maximum weight capacity
- 113.4 kg
- Maximum screen size
- 2.54 m (100")
- Certification
- ULCERT
Packaging data
- Package weight
- 14 kg
