PTZ310UV2 8 MP White 3840 x 2160 pixels 60 fps Exmor 25.4 / 2.8 mm (1 / 2.8")

Part # PTZ310UV2UPC 848090009264Warranty: 3 Years9.9 lb

8 MP Single camera Exmor 25.4 / 2.8 mm (1 / 2.8")
4K Ultra HD 3840 x 2160 pixels 60 fps
Digital zoom: 1 Optical zoom: 12
Built-in speaker(s)
Signal-to-Noise Ratio (SNR): 50 dB
White

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

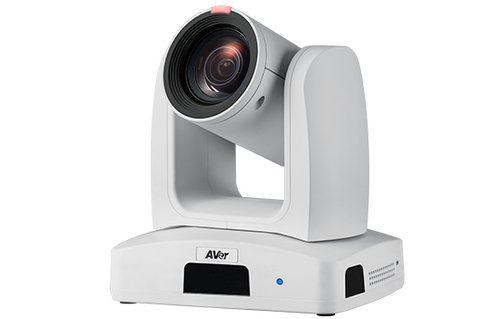

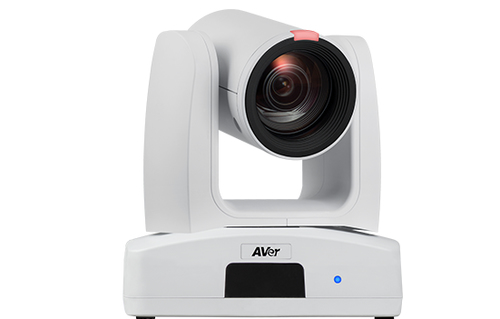

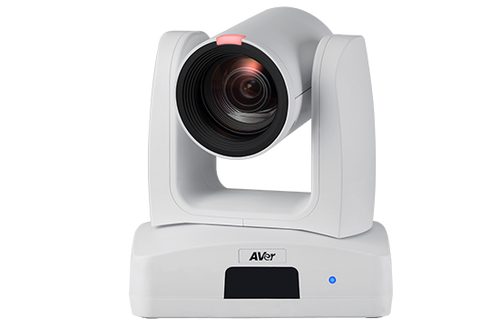

AVer PTZ310UV2 is a cutting edge PTZ Camera that features 4K 60 fps HDMI, USB and IP outputs. The 12X optical zoom lens moves remarkably fluidly to stream seamless video content. Embedded intelligent SmartShoot functionality offers the unprecedented flexibility to shoot anything from one presenter to numerous participants, making for a truly versatile professional streaming solution.

12X Optical Zoom.

Adapt Quickly.

The PTZ310UV2’s 12X optical zoom camera, combined with its agile auto-focus, gives every participant the chance to be seen with excellent clarity. Never miss a spectacular moment, no matter how small.

4K Ultra HD Resolution.

Breathtaking

The 4K Ultra HD resolution of the PTZ310UV2 makes every stream impressively clear, thanks to the industry-leading Sony sensor. This excellent image processor is able to automatically adjust video – ensuring great looking scenes no matter the situation or distance.

4K 60 FPS.

HDMI, USB & IP

Recognized by Newtek, the PTZ310UV2 features true 4K 60 fps streaming via HDMI, USB, and IP outputs. No annoying settings or messy cords, you can use multiple devices at the same time through the easier and smoother video streaming process.

Camera Motion.

Adjusted to Perfection

Customizable movement speed settings from 0.1° to 200° per second deliver agile and precise motion control during streaming. The PTZ310UV2 offers sensitive yet smooth multi-angle movement for capturing an astonishing image.

SmartShoot.

People and Content in Focus.

SmartShoot provides real-time Human Detection, which allows the camera to move automatically and smoothly between 4 preset zones without any manual operation. The PTZ310UV2 quickly switches between shooting zones by focusing on a presenter, consistently delivering a clear image of people and their content.

Specifications

Camera

Camera type: Single camera
Megapixel (approx.): 8 MP
Sensor type: Exmor
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Zoom capability: Yes
Optical zoom: 12x
Digital zoom: 1x
Combined zoom: 12x
Focal length range: 3.9 - 46.8 mm
Field of view (wide): 80.6°
Field of view (tele): 7.7°
Horizontal field of view (wide): 72.8°
Horizontal field of view (tele): 6.7°
Vertical field of view (wide): 44.1°
Vertical field of view (tele): 3.8°
Minimum illumination: 0.46 lx
Signal-to-Noise Ratio (SNR): 50 dB
Flip & mirror: Yes
Aperture range (F-F): 1.6 - 2.8
White balance: ATW, Auto, Manual, One push
Auto exposure: Yes
Light exposure modes: Aperture priority AE, Auto, Manual, Shutter priority AE
Closest focusing distance: 0.3 m
Wide Dynamic Range (WDR): Yes
Back Light Compensation (BLC): Yes
Gain control type: Auto/Manual
PTZ control: Yes
PTZ protocols: ONVIF, Pelco-P/D, VISCA
Slowest camera shutter speed: 1 s
Fastest camera shutter speed: 1/32000 s
3D NR (Noise Reduction): Yes

Video

HD type: 4K Ultra HD
Maximum video resolution: 3840 x 2160 pixels
Maximum frame rate: 60 fps
Resolution at capture speed: 3840x2160@60fps, 1280x720@60fps, 1920x1080@60fps
Video formats supported: H.264, H.265, MJPG, YUY2
Number of TV lines: 1600

Design

Product colour: White
Mounting type: Stand
Tilt angle range: -30 - 90°
Pan range: -170 - 170°
LED indicators: Status
Tally light: Yes
Web-based management: Yes
Tilt speed (min): 0.1 °/sec
Tilt speed (max): 100 °/sec
Tilt preset speed: 200 °/sec
Pan speed (min): 0.1 °/sec
Pan speed (max): 100 °/sec
Pan preset speed: 200 °/sec
Country of origin: Taiwan

Ports & interfaces

HDMI ports quantity: 2
Power over Ethernet plus (PoE+) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 1
USB Type-C connector: Yes
RS-232 ports: 1
RS-422 ports: 1
3G-SDI output: Yes
Microphone in: Yes
Line-in: Yes

Power

Power source type: DC, PoE
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
DC input voltage: 12 V
Input current: 2 A
Power consumption (typical): 19 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 20 - 95%

Packaging content

Power supply included: Yes
Remote control included: Yes
Cables included: AC, DIN 8 to D-Sub 9, RS-232
Screws included: Yes
Number of screws: 8
Quick start guide: Yes
AC adapter included: Yes
Cable ties included: Yes
Number of cable ties: 4
Mounting brackets included: Yes
Number of cable fixing plates: 1

Performance

Cable lock slot: Yes
Cable lock slot type: Kensington
Certification: Zoom

Audio

Built-in speaker(s): Yes
Audio channels: 2
Audio codecs: AAC-LC

Network

Ethernet LAN data rates: 10,100,1000 Mbit/s
Streaming capability: Yes
Network streaming: Yes
Multi-stream capability: 4; 4K 60fps: RTSP, HDMI & USB; 1080p 60fps: 3G-SDI
Bit rate range: 512 - 120000 Kbit/s
Supported network protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
