VW3620 CPU Module
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The VW-CPU can be installed in the ATEN VW3620 36 x 20 Modular 4K Video Wall Processor, which features two CPU board slots. The upper slot is running as the primary by default. Each VW-CPU is equipped with an individual 10/100/1000Base-T LAN port and controller card which enables efficient transmission and management of data. VW-CPU comes hot-standby that standby CPU will automatically backup and switch as primary to resume the logic workings and IO control from the previous stopped when the primary CPU shuts down. It can take over the primary system operation immediately to guarantee easy maintenance of interface via Web GUI without shutting down the current display on the video wall. Consequently, VW-CPU supports redundancy to ensure uninterrupted operation for any mission-critical video wall applications.
Specifications
Design
- Product colour
- Black, Green
- Housing material
- Metal
- Built-in fan
- Yes
- Number of fans
- 1 fan(s)
- Fan location
- Top
- Heat dissipation
- 9.95 BTU/h
Features
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
Ports & interfaces
- RJ-45 ports quantity
- 1
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Logistics data
- Country of origin
- Taiwan
- Master (outer) case gross weight
- 4.6 kg
- Master (outer) case length
- 350 mm
- Master (outer) case width
- 255 mm
- Master (outer) case height
- 272 mm
Technical details
- Package volume
- 5040.398693376 cm³
- Master (outer) case volume
- 24267.537529344 cm³
Weight & dimensions
- Width
- 271 mm
- Depth
- 193 mm
- Height
- 27.4 mm
- Weight
- 780 g
- Package width
- 253 mm
- Package depth
- 338 mm
- Package height
- 59 mm
- Package weight
- 1.08 kg
Downloads
More in Case Fans
StarTech.com"The FAN12025PWM 120mm PWM Case Fan adds an efficient air cooling soluFAN12025PWM

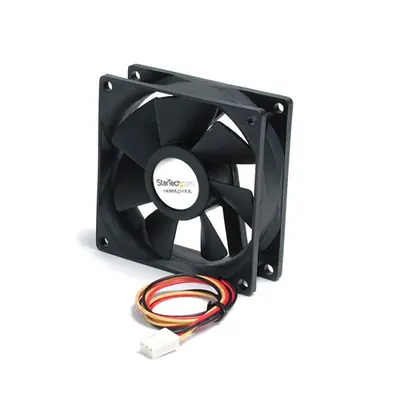

StarTech.comQuiet Dual Ball Bearing 8cm Case Fan with TX3 ConnectorFAN8X25TX3L
StarTech.com8cm Dual Ball Bearing PC Case Cooling Fan w/RPM Sensor, 3-lead ConnectFANBOX2
ATENModular Fan unit for VM1600AVM-FAN554
ATENModular Fan unit for VM3200VM-FAN556

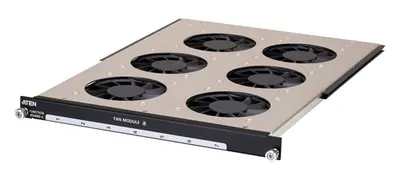

ATENVW3620 Fan ModuleVW-FAN556
