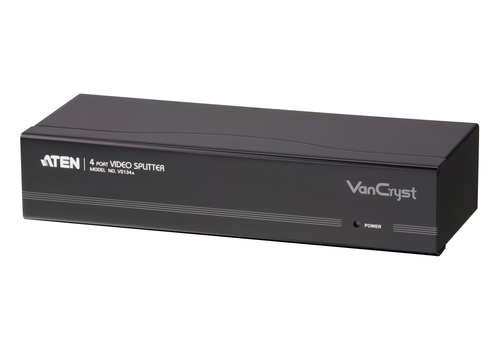

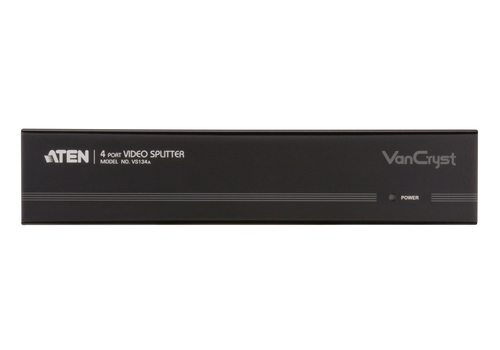

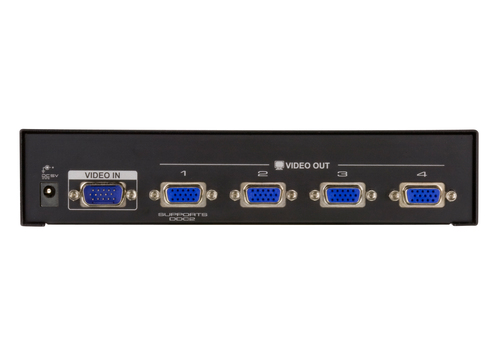

450MHz 4 Port VGA Video Splitter

Part # VS134AUPC 6727921006281.85 lb

One video input to 4 video outputs
Supports up to 450 MHz bandwidth
Cascadable to 3 levels - provides up to 64 video signals
Long distance transmission - up to 30m *
Superior video quality - up to 2048 x 1536
Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync monitors

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The VS134A Video Splitter is a boosting device that duplicates a video signal from one source to 4 output devices. Cascadable to three levels, the VS134A provides up to 64 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.

To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS134A is your best choice.

Applications include:

• Financial - the remote display of stock market information

• Education - the remote display of lectures and lessons to halls and classrooms

• Business - the remote display of addresses to overflow rooms; video conferencing; and demos

Specifications

Ports & interfaces

Video port type: VGA
Video out: 4x VGA
Video ports quantity: 4
DC-in jack: Yes

Features

Product colour: Black
Maximum resolution: 2048 x 1536 pixels
3D: No
Maximum operating distance: 65 m
Bandwidth: 450 MHz
Remote control included: No
HDCP: No
Supported graphics resolutions: 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Power LED: Yes
