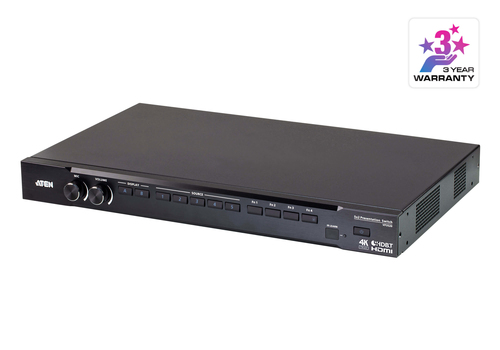

5 x 2 True 4K Seamless Presentation Matrix Switch

Part # VP3520UPC 67279201303410.64 lb

Display Control
Auto display on / off control – supports display control through CEC, IR, RS-232, PJLink and controls projector screen through relay port
Flexible control methods – triggered by source detection or 4 function keys on front panel
Digital AV Matrix Switching
Supports multi-format 5 inputs – 3 HDMI, 2 HDBaseT
1 HDMI and 1 HDBaseT output

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The ATEN VP3520 is a multi-in-one presentation matrix switch that integrates a video matrix switch, 4K scaler, HDBaseT extender, and audio DSP functions into one compact device that easily mounts under a table or in a rack. The VP3520 seamless presentation matrix switch with control features the True 4K video resolutions of 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) and HDR technology, guaranteeing crystal-clear images across two displays. The VP3520 supporting 4K @ 60 Hz, HDMI, and HDCP 2.2 features Seamless Switch™ that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance 4K scaler, the VP3520 easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across the two displays.

With flexible audio de-embedding, the VP3520 is designed with the audio routing flexibility to meet different application requirements. In a simple setup, HDMI audio can be connected and switched directly to display audio. For a more complex setup, the HDMI audio can be de-embedded to Audio Line Out in order to connect to your preferred in-room audio equipment. Equipped with 5 digital inputs to one HDBaseT and one HDMI True 4K separate outputs, the VP3520 enables users to control 2 displays at the same time and is designed to boost the efficiency and impact of professional presentations. The VP3520 provides users with the flexibility of using both active and passive speakers with its stereo line out port, coaxial port, and 2 x 10 W power amplifiers.

As for the control functions, the VP3520 offers users multiple control options through the front-panel pushbuttons, IR remote control, RS-232 commands, web-based GUI, and ATEN Video Presentation Control App. Moreover, the VP3520 enables the control over AV devices such as TV displays, projectors, and monitors. It is ideal for all meeting spaces and education environments, including huddle rooms, classrooms, training rooms, or any other presentation setting such as exhibition galleries or hotels.

Specifications

Features

Product type: Media presentation matrix switcher
Maximum resolution (HDMI): 4096 x 2160 pixels
HDCP: Yes
HDCP version: 2.2
High Dynamic Range (HDR) supported: Yes
Extended display identification data (EDID): Yes
Supported resolutions: 4096 x 2160, 3840 x 2160, 1920 x 1080, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x 1050, 1280 x 1024, 1280 x 800, 1024 x 768, 800 x 600, 720 x 400, 640 x 480

Design

Housing colour: Black
Remote control included: Yes
Rubber feet: Yes

Display

Built-in display: No

Ports & interfaces

HDMI input ports quantity: 3
HDMI output ports quantity: 1
RJ-45 input ports: 2
RJ-45 output ports: 1
RS-232 ports: 2
Analog audio output terminal ports: 1
Relay outputs: 2

Power

Power consumption (max): 46.7 W
Power consumption (typical): 45.8 W
AC input voltage: 110 - 220 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Heat dissipation: 310 BTU/h
Heat dissipation (max): 314 BTU/h

Weight & dimensions

Width: 272.3 mm
Depth: 432.4 mm
Height: 44 mm
Package width: 338 mm
Package depth: 515 mm
Package height: 155 mm

Packaging content

Cables included: AC
Rack mount kit: Yes
Manual: Yes
IR receiver included: Yes
