ATENKVM Cables

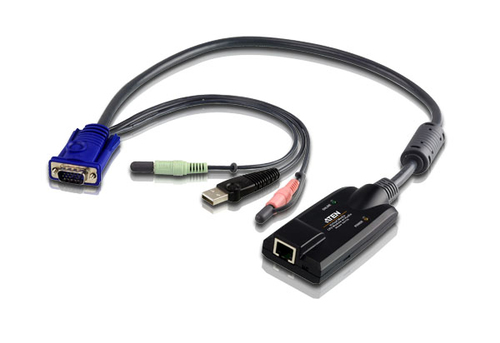

USB - VGA to Cat5e/6 KVM Adapter Cable (CPU Module), with Audio & Virtual Media Support
- Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
- Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
- Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
- Virtual Media and Audio Support
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The KA7176 KVM Adapter Cable connects the KVM switch to the video, USB and audio ports of the target computer. With its small form factor and light weight design, it represents the next generation of KVM Adapter Cables- offering superior signal compensation and delay skew techniques for greatly enhanced video quality.
1x KVM Adapter Cable
01
1x Rack Mount Kit
1x Rack Mounting Guide
Specifications
Performance
- Product colour
- Multicolour
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
- Console port
- RJ-45
- Connector 1
- 1 x RJ-45
- Connector 2
- 1 x USB Type A, 1 x HDB-15, 2 x Mini Stereo
- Connector 1 gender
- Female
- Connector 2 gender
- Male
- Material
- Plastic
Packaging data
- Weight
- 150 g
- Package width
- 42 mm
- Package depth
- 124 mm
- Package height
- 129 mm
- Package weight
- 190 g
Other features
- Dimensions (WxDxH)
- 43 x 90 x 21.8 mm
Logistics data
- Master (outer) case net weight
- 6 kg
- Harmonized System (HS) code
- 84733080
- Master (outer) case width
- 270 mm
- Master (outer) case length
- 470 mm
- Master (outer) case height
- 296 mm
- Master (outer) case gross weight
- 8.93 kg
- Products per master (outer) case
- 40 pc(s)
Downloads
