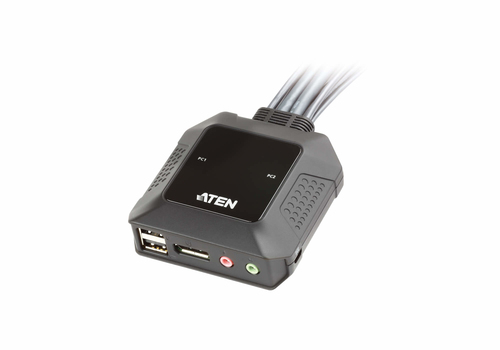

2port USB DisplayPort Cable KVM Switch
- One KVM console controls two USB DisplayPort computers
- Superior video quality – up to 4096 x 2160 @ 30 Hz
- Multiplatform support – Windows, Mac, and Linux
- Bus-powered design
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Having two computers running different projects at the same time can be a time saver, but having a KVM console set up to switch between computers via a pushbutton over one shared screen makes multitasking even more productive. Allow the CS22DP compact cable KVM switch to work its magic by de-cluttering your desktop workspace with a neat and space-efficient new look, and further enrich your operations with superb 4K audiovisual quality, making your desktop workflows more enjoyable.
Superior AV Performance in Vivid 4K
The CS22DP empowers your desktop operations with 4K audiovisual enhancement by presenting visual content in outstanding precision.
Smooth Cross-Platform Integration
The CS22DP enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console via one-button switching with the remote port selector.

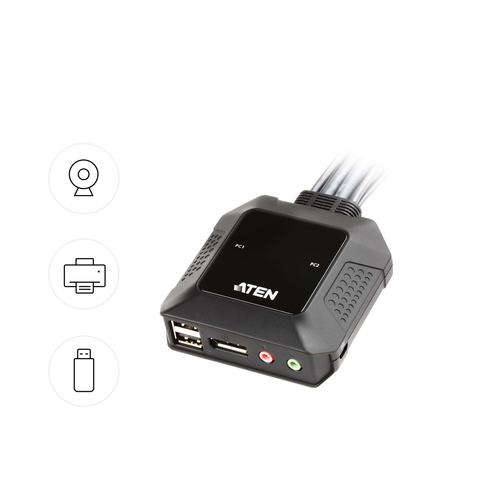

Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22DP supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Applications
The CS22DP Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.
Specifications
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.1

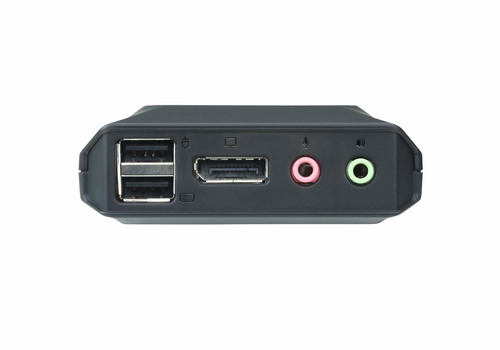

- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- Console USB ports quantity
- 2
- Console DisplayPorts ports quantity
- 1
- USB 2.0 Type-A hub ports quantity
- 2
- USB connector type
- Micro-USB B, USB Type-A
- Audio connections
- Yes
- Headphone outputs
- 1
- Number of microphone inputs
- 1
Network
- Ethernet LAN
- No
Performance
- HD type
- 4K Ultra HD
- Maximum resolution
- 4096 x 2160 pixels
- Video bandwidth
- 30 Hz
- HDCP
- Yes
- Hot-Plug support
- Yes
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Plastic
- Wired remote switch
- Yes
- Cable length
- 1.2 m
- Remote switch cable length
- 1.8 m
- LED indicators
- Yes
Display
- Built-in display
- No
Power
- Power source
- DC
- Input voltage
- 5 V
- Power consumption (typical)
- 1.38 W
System requirements
- Windows operating systems supported
- Yes
- Linux operating systems supported
- Yes
- Mac operating systems supported
- Yes
Sustainability
- Compliance certificates
- RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 84.2 mm
- Depth
- 83.4 mm
- Height
- 30.4 mm
- Weight
- 350 g
Packaging content
- Manual
- Yes
Downloads
