ATENRack Consoles

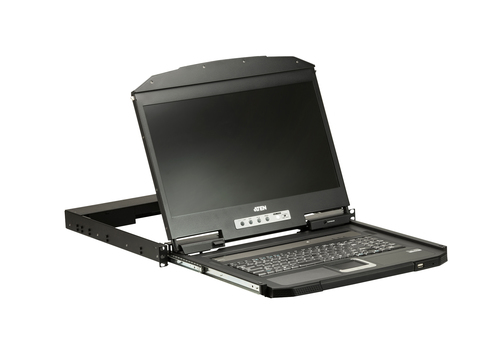

1U Short Depth USB VGA Single Rail LCD
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
- 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
- Supports an external console with USB / VGA connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
01
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
Specifications
Display
- Display diagonal
- 47 cm (18.5")
- Display resolution
- 1366 x 768 pixels
- Display
- TFT-LCD
- Display brightness
- 250 cd/m²
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 160°
- On Screen Display (OSD)
- Yes
- Pixel pitch
- 0.3 x 0.3 mm
- Aspect ratio
- 16:9
- Display type
- LCD
- Response time
- 5 ms
- Display number of colours
- 16.78 million colours
Technical details
- Material
- Metal, Plastic
- Product colour
- Black
- Hot-Plug support
- Yes
- Operating relative humidity (H-H)
- 0 - 80%
- Built-in KVM switch
- Yes
- Maximum resolution
- 1920 x 1200 pixels
- Rack mounting
- Yes
- Key lock
- Yes
- Number of computers controlled
- 1
- On/off switch
- Yes
- LED indicators
- Yes
- Compliance certificates
- RoHS
- Rack capacity
- 1U
Ports & interfaces
- I/O ports
- 3.5 mm Audio Jack, SPHD
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
- USB 2.0 Type-A ports quantity
- 3
Keyboard
- Keyboard number of keys
- 105
- Built-in touchpad
- Yes
- Keyboard language
- US English
- Keyboard layout
- QWERTY
- Hot keys
- Yes
Certificates
- Certification
- UL 60950-1, CAN/CSA
Power
- Power supply type
- AC
- Power consumption (typical)
- 14.1 W
- AC adapter input voltage
- 100 - 240 V
- AC adapter frequency
- 50/60 Hz
- Input current
- 1 A
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Weight & dimensions
- Width
- 477 mm
- Height
- 42.8 mm
- Depth
- 480.6 mm
- Weight
- 10.2 kg
Packaging data
- Package weight
- 12.1 kg
- Package width
- 612 mm
- Package depth
- 658 mm
- Package height
- 135 mm
Packaging content
- Cables included
- AC, KVM
- Manual
- Yes
- AC adapter included
- Yes
- Rack mount kit
- Yes
Logistics data
- Master (outer) case net weight
- 10.2 kg
- Master (outer) case width
- 612 mm
- Master (outer) case length
- 658 mm
- Master (outer) case height
- 135 mm
- Master (outer) case gross weight
- 12.1 kg
- Products per master (outer) case
- 1 pc(s)
More in Accessories
DellDell Dual VESA Mount with Adapter BracketR07NF
TargusThe well-built Targus Universal Monitor Stand houses your notebook comPA235U
ViewSonic24 Ergonomic IPS Designed for Surface Monitor with USBC,1920x1080 ResoVG245

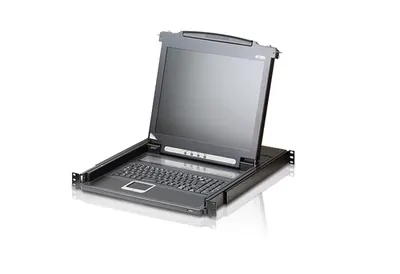

ATEN19 LCD Integrated ConsoleCL1000N
