ASUSMotherboards

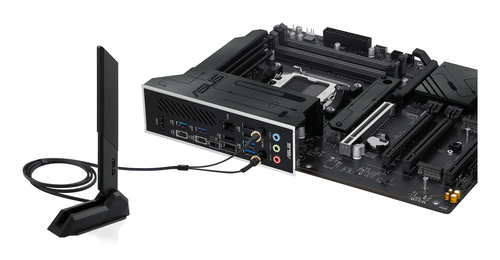

X870 Max Gaming WIFI7 AMD X870 Socket AM5 ATX
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD X870 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
X870 MAX GAMING WIFI7
ASUS X870 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the X870 MAX GAMING WIFI7 motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Compatible processor series
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & Non-ECC
- Supported memory clock speed (max)
- 8000 MHz
- Maximum internal memory
- 256 GB
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2, SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 7
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2x2 connectors
- 1
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 4
- Chassis intrusion connector
- Yes
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- TPM connector
- Yes
- 12V power connector
- Yes
Rear panel I/O ports
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB4 Gen 3x2 ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- Line-in
- Yes
- Microphone in
- Yes
- WiFi-AP antenna jack
- 2
- USB connector type
- USB Type-A, USB Type-C
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- AMD X870
- Audio output channels
- 7.1 channels
- Product colour
- Multicolour
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- AMD
- Windows operating systems supported
- Windows 11
Expansion slots
- PCI Express x16 (Gen 3.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 2
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 3
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
Packaging data
- Package width
- 353 mm
- Package depth
- 273 mm
- Package height
- 68 mm
- Package weight
- 1.95 kg
Weight & dimensions
- Width
- 305 mm
- Depth
- 244 mm
- Height
- 48 mm
Packaging content
- Antenna included
- Yes
Other features
- Weight
- 1.36 kg
