ASUSGraphics Cards
Turbo -AI-PRO-R9700-32G AMD Radeon AI PRO R9700 32 GB GDDR6
- AMD Radeon AI PRO R9700 32 GB GDDR6
- 7680 x 4320 pixels 256 bit 20 Gbit/s PCI Express 5.0
- HDMI ports quantity: 1 DisplayPorts quantity: 3
- OpenGL version: 4.6
- 1x 16-pin
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

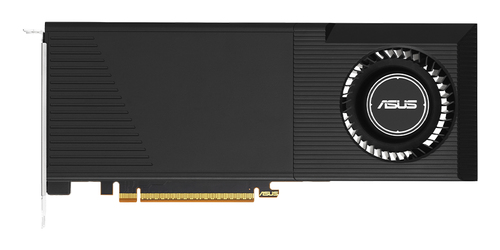

ASUS Turbo Radeon™ AI Pro R9700
01
TURBOCHARGED FOR AI
The ASUS Turbo Radeon™ AI Pro R9700 32GB is built for compact workstations tackling AI and professional workloads. Its blower-style cooler, die-cast shroud, and reinforced backplate ensure efficient heat dissipation and long-term reliability—even in the tightest spaces.
02
Cooling
03

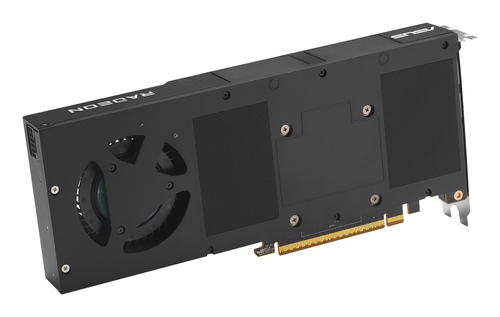

Diecast Shroud and Backplate
Engineered to boost heat dissipation and strengthen the card's structure. Its special wave design maximizes the thermal surface, reducing memory temps by up to 16%.
04
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.
Specifications
Processor
- Compute units
- 64
- Render Output Units (ROPs)
- 128
- Graphics processor family
- AMD
- Graphics processor
- Radeon AI PRO R9700
- Processor boost clock speed
- 2920 MHz
- Processor boost clock speed (OC mode)
- 2940 MHz
- Processor boost clock speed (Gaming mode)
- 2350 MHz
- Maximum resolution
- 7680 x 4320 pixels
- Parallel processing technology support
- Not supported
- Stream processors
- 4096
- Maximum displays per videocard
- 4
- Ray accelerators
- 64
- AI accelerators
- 128
Memory
- Discrete graphics card memory
- 32 GB
- Graphics card memory type
- GDDR6
- Memory bus
- 256 bit
- Data transfer rate
- 20 Gbit/s

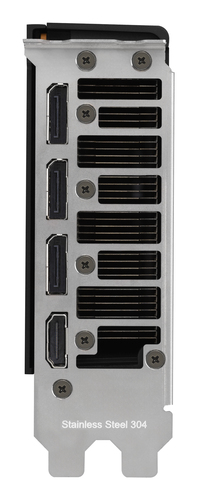

Ports & interfaces
- Interface type
- PCI Express 5.0
- HDMI ports quantity
- 1
- HDMI version
- 2.1b
- DisplayPorts quantity
- 3
- DisplayPort version
- 2.1a
Performance
- Peak Single Precision Matrix (FP32) performance
- 47.8 TFLOPS
- Peak Half Precision (FP16) performance
- 95.7 TFLOPS
- Peak INT4 performance
- 1531 TOPs
- Peak INT8 Performance
- 766 TOPs
- TV tuner integrated
- No
- OpenGL version
- 4.6
- HDCP
- Yes
- HDCP version
- 2.3
- Dual Link DVI
- No
Design
- Cooling type
- Active
- Number of fans
- 1 fan(s)
- Form factor
- Full-Height/Half-Length (FH/HL)
- Number of slots
- 2
- Product colour
- Grey
Power
- Minimum system power supply
- 750 W
- Supplementary power connectors
- 1x 16-pin
Weight & dimensions
- Weight
- 1.04 kg
- Length
- 266.7 mm
- Depth
- 40 mm
- Height
- 111.1 mm
Packaging data
- Package width
- 368 mm
- Package depth
- 220.5 mm
- Package height
- 68 mm
- Package weight
- 1.5 kg
- Package type
- Box
Packaging content
- Manual
- Yes
Downloads
