The TUF Gaming Gold PSU series is your companion in battle
- Capacitors and chokes pass demanding tests to achieve Military-grade Certification
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- A protective PCB coating protects against moisture, dust, and extreme temperatures
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- Fully modular etched cables keep your rig neat and tidy
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

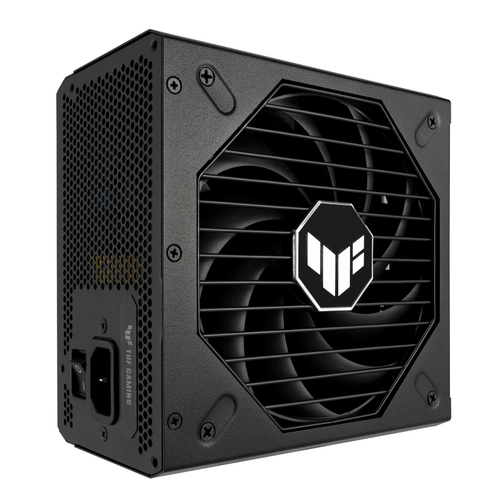

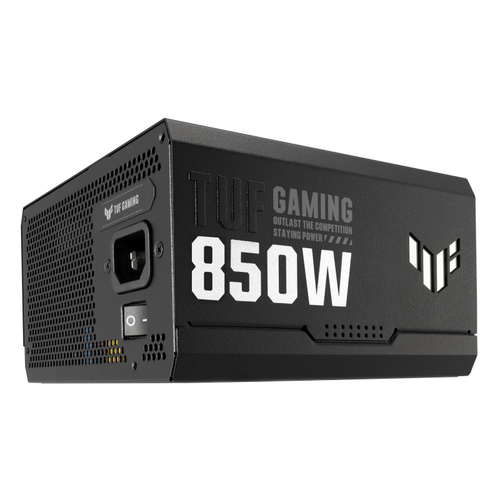

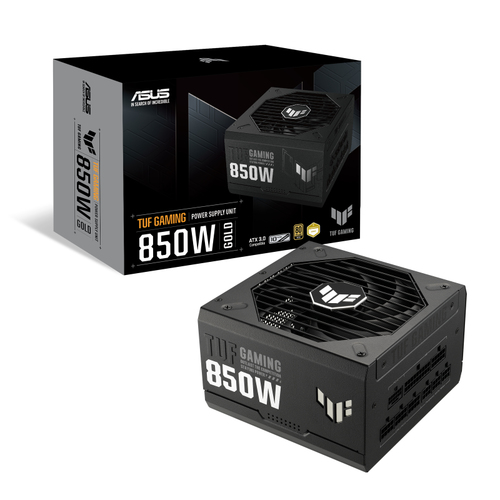

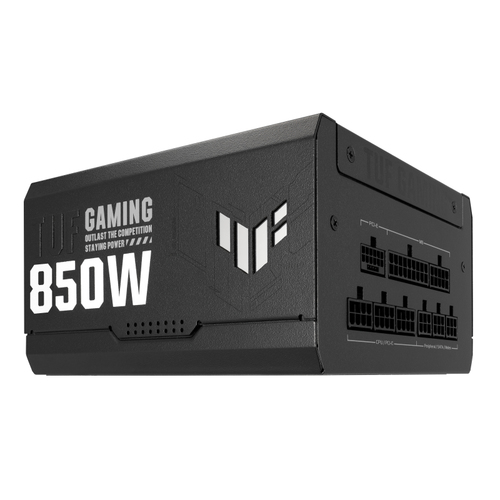

The TUF Gaming 850W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
Built For The Long Haul
The ASUS TUF Gaming 850W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.
TUF Components
Top marks
With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 850W Gold empowers you to build in confidence.
80 Plus Gold Certification
Heart of gold
The TUF Gaming 850W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
Specifications
Power
- Total power
- 850 W
- AC input voltage
- 100 - 240 V
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 130 W
- Combined power (+12V)
- 850 W
- Combined power (+5V)
- 130 W
- Combined power (-12V)
- 9.6 W
- Combined power (+5Vsb)
- 15 W
- Max output current (+3.3V)
- 25 A
- Max output current (+12V)
- 70.8 A
- Max output current (+5V)
- 25 A
- Max output current (-12V)
- 0.8 A
- Max output current (+5Vsb)
- 3 A
- Efficiency
- 92%
- Power protection features
- Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Motherboard power cable length
- 61 cm
- Number of SATA power connectors
- 5
- SATA power cable length
- 120,400 mm
- Peripheral (Molex) power connectors (4-pin)
- 4
- Peripheral (Molex) power cable length
- 150,400 mm
- EPS power connector (8-pin)
- No
- PCI Express power connectors (8-pin)
- 3
- PCI Express power connectors (16-pin)
- 1
- PCI Express power cable length
- 67.5 cm
- CPU power connector (4+4 pin)
- Yes
- CPU power cable length
- 65 cm
- Cabling type
- Fully-Modular
Performance
- 80 PLUS certification
- 80 PLUS Gold
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- ATX version
- 3.0
- Noise level
- 0 dB
- Bearing technology
- Ball bearing
- Mean time between failures (MTBF)
- 170000 h
Design
- Product colour
- Black
- Cooling type
- Active
- Fan diameter
- 13.5 cm
- Number of fans
- 1 fan(s)
- Illumination
- No
- On/off switch
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 105 °C
Packaging content
- Cables included
- AC, CPU, PCIe, Peripheral (Molex), SATA
- Cable tie(s) included
- Yes
Certificates
- Compliance certificates
- RoHS
Weight & dimensions
- Width
- 150 mm
- Depth
- 150 mm
- Height
- 86 mm
- Weight
- 2.38 kg
Packaging data
- Package type
- Box
Logistics data
- Warranty period
- 10 year(s)
