Home/Catalogue/ASUS/RNUC16GDKU76000U
Drag to turn · 14 views
ASUSPC/Workstation Barebones
The ASUS NUC 16 Pro Barebone Kit delivers highperformance edge computing in a compact form
- Powered by up to Intel Core Ultra X9 CPU, Arc B390 GPU, and NPU 5, it enables AI-accelerated hybrid computing, delivering up to 180 TOPS for real-time Edge AI
- Up to 96 GB LPDDR5x 9600 MT/s with 20% faster speed and 50% lower power, plus dual-fan cooling for sustained peak performance
- Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI
- Built-in firmware TPM 2.0 provides enterprise-grade data protection and compliance, enabling IT professionals to securely manage devices and scale services with ease

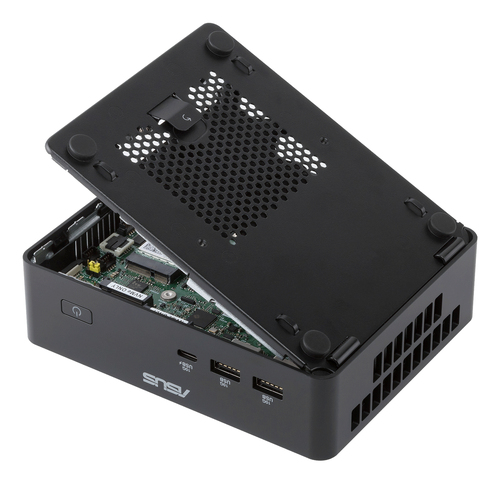

- Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance
- Rugged modular build with long-life availability and rich I/O, including RS-232 and PCIe x1, for POS, IoT, and industrial deployment
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Faster, Smarter, More Secure For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Core Ultra 7
- Processor generation
- Intel® Core™ Ultra (Series 3)
- Processor model
- 356H
- Processor cores
- 16
- Processor threads
- 16
- Processor boost frequency
- 4.7 GHz
- Performance cores
- 4
- Efficient cores
- 8
- Low Power Efficient-cores
- 4
- Performance-core Max Turbo Frequency
- 4.7 GHz
- Efficient-core Max Turbo Frequency
- 3.5 GHz
- Low Power Efficient-core Max Turbo Frequency
- 3.3 GHz
- Performance-core base frequency
- 1.9 GHz
- Efficient-core base frequency
- 1.5 GHz
- Low Power Efficient-core Base Frequency
- 1500 MHz
- Built-in processor
- Yes
- Processor cache
- 18 MB
Memory
- Internal memory installed
- No
- Memory slots type
- SO-DIMM
- Number of memory slots
- 2
- Maximum internal memory
- 128 GB
- Memory channels
- Dual-channel
Storage
- Storage drives installed
- No
- Supported storage drive types
- SSD
- Storage drive sizes supported
- M.2
- SSD form factor
- M.2
- Storage drive interface
- PCI Express
- Number of storage drives supported
- 2
- Maximum storage capacity
- 8 TB
Graphics
- On-board graphics card
- Yes
- Graphics card family
- Intel
- On-board graphics card model
- Intel® Graphics
Performance
- Trusted Platform Module (TPM)
- Yes
- Trusted Platform Module (TPM) version
- 2.0
Audio
- Built-in speaker(s)
- No
Network
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- WLAN controller model
- Intel Wi-Fi 7 BE211
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
- LAN controller
- Intel I226-V
- Bluetooth
- Yes
- Bluetooth version
- 6.0
Ports & interfaces
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- HDMI ports quantity
- 2
- HDMI version
- 2.1
- Ethernet LAN (RJ-45) ports
- 2
- Thunderbolt 4 ports quantity
- 2
- DC-in jack
- Yes
Design
- Product colour
- Black
- Cooling type
- Active
- On/off switch
- Yes
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- VESA mounting
- Yes
- Product type
- Mini PC barebone
Power
- Power supply type
- External AC adapter
- Power supply
- 150 W
- AC adapter output voltage
- 7.7 V
- AC adapter output current
- 19.5 A
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 0 - 92%
Weight & dimensions
- Width
- 144 mm
- Depth
- 117 mm
- Height
- 42 mm
- Weight
- 730 g
