ASUSMotherboards

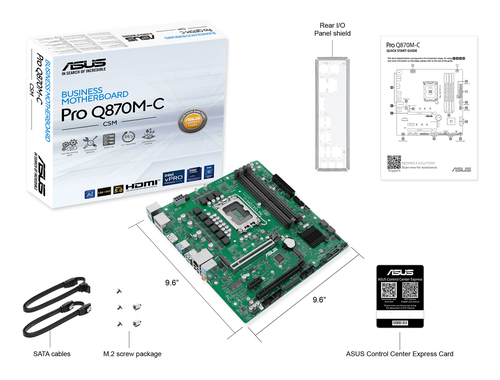

Pro Q870MCCSM MicroATX mATX Q870 business motherboard with Intel Core Ultra Processors Series 2
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: A self-recovering BIOS, TPM to safeguard PCs and NIST SP 800-193 compliance
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Micro-ATX Q870 business motherboard with Intel® vPro support and enhanced security, reliability and manageability
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speed (max)
- 6400 MHz
- Maximum internal memory
- 256 GB
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2, SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
- 1
- Number of SATA III connectors
- 4
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 2
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 2
- 12V power connector
- Yes
Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- PS/2 ports quantity
- 2
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 2
- Microphone in
- Yes
- USB connector type
- USB Type-A, USB Type-C
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- LAN controller
- Intel® I219-LM
- Wi-Fi
- No
- Top Wi-Fi standard
- Not available
Features
- Motherboard chipset
- Intel® Q870
- Audio output channels
- 7.1 channels
- Product colour
- Multicolour
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 10 x64, Windows 11
Expansion slots
- PCI Express x1 (Gen 4.x) slots
- 1
- PCI Express x16 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 2
BIOS
- BIOS memory size
- 256 Mbit
Packaging data
- Package width
- 270 mm
- Package depth
- 263 mm
- Package height
- 51.5 mm
- Package weight
- 889.03 g
Weight & dimensions
- Width
- 244 mm
- Depth
- 244 mm
- Height
- 50 mm
Other features
- Weight
- 550.6 g
