Home/Catalogue/ASUS/PRIME Z890M-PLUS WIFI
Drag to turn · 12 views
ASUSMotherboards
Prime Z890MPLUS WIFI
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC micro ATX Intel Z890 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 9
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Z890M-PLUS WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1851 (Socket V1)
- Compatible processor series
- Intel Core Ultra (Series 2)
- Supported processor sockets
- LGA 1851
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Maximum internal memory
- 192 GB
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2, SATA III
- Number of HDDs supported
- 6
- Number of storage drives supported
- 9
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Graphics
- Parallel processing technology support
- Not supported
- On-board graphics card
- No
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of SATA III connectors
- 6
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of chassis fan connectors
- 4
- Chassis intrusion connector
- Yes
- Number of COM connectors
- 1
- TPM connector
- Yes
- Thunderbolt headers
- 1
- 12V power connector
- Yes

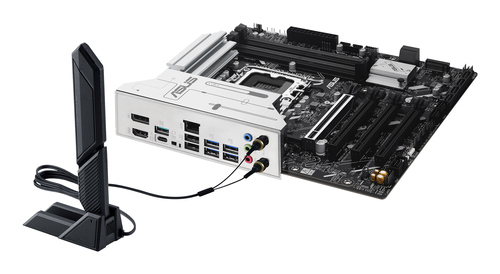

Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Microphone in
- Yes
- WiFi-AP antenna jack
- 1
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Features
- Motherboard chipset
- Intel Z890
- Audio output channels
- 7.1 channels
- Product colour
- Aluminium, Black
- Component for
- PC
- Motherboard form factor
- micro ATX
- Motherboard chipset family
- Intel
- Windows operating systems supported
- Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots
- 3
- PCI Express x16 (Gen 5.x) slots
- 1
- Number of M.2 (M) slots
- 3
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
Packaging data
- Package width
- 275 mm
- Package depth
- 275 mm
- Package height
- 67.5 mm
- Package weight
- 1.64 kg
Weight & dimensions
- Width
- 244 mm
- Depth
- 244 mm

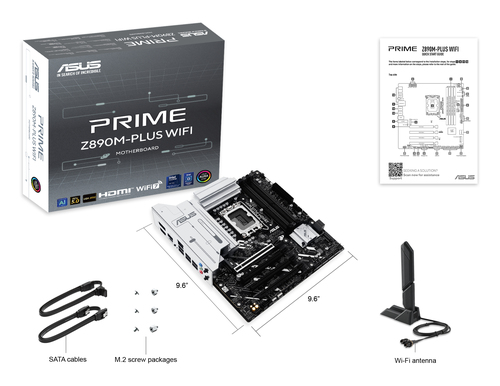

Packaging content
- Cables included
- SATA
- Screws included
- Yes
