ASUSMotherboards
Prime B550Plus Aches
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Ultrafast connectivity: Dual M.2, PCIe 4.0, WIFI 5, 1 Gb Ethernet, rear USB 3.2 Gen 2 Type-A and Type-C®, front USB 3.2 Gen 1 Type-A and Type-C®
- Comprehensive cooling: VRM heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
- Aura Sync RGB: Onboard addressable Gen 2 headers for ARGB LED strips, easily synced with Aura Sync-capable hardware
- CEC Tier II ready
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

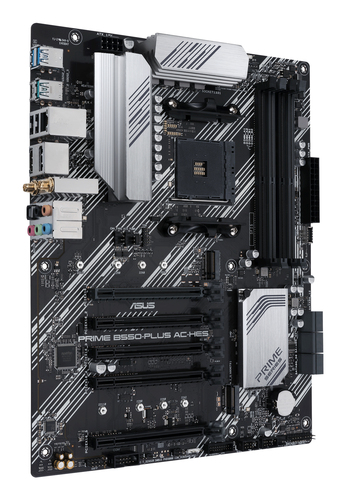

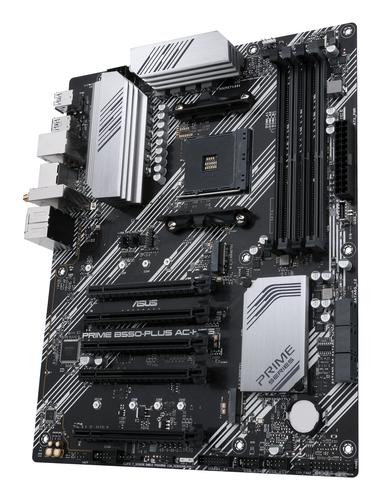

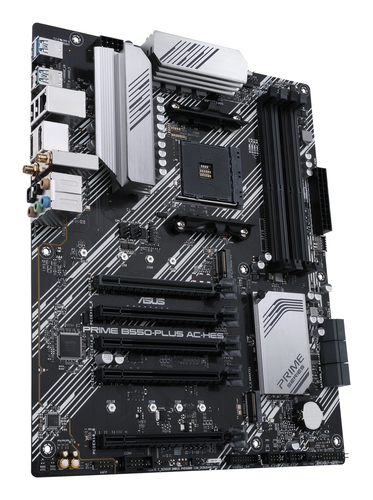

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, WIFI 5, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-C®, front USB 3.2 Gen 1 Type-C® and Aura Sync ARGB headers support
01
Prime
ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
Specifications
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM4
- Compatible processor series
- AMD Ryzen 5000 Series, AMD Ryzen 3000 Series
Memory
- Supported memory types
- DDR4-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC
- Supported memory clock speeds
- 4866,4800,4600,4466,4400,4333,4266,4200,4133,4000,3866,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz
- Maximum internal memory
- 128 GB
- Unbuffered memory
- Yes
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2, SATA III
- Number of HDDs supported
- 6
- Number of storage drives supported
- 8
- RAID support
- Yes
- RAID levels
- 0, 1, 10
Graphics
- Parallel processing technology support
- Not supported
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of SATA III connectors
- 6
- Front panel audio connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 2
- EPS power connector (8-pin)
- Yes
- Number of COM connectors
- 1
- TPM connector
- Yes
- 12V power connector
- Yes
Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Headphone outputs
- 1
- Microphone in
- Yes
- S/PDIF out port
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 5 (802.11ac)
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
Features
- Motherboard chipset
- AMD B550
- Audio chip
- Realtek ALC887 / Realtek ALC897
- Audio output channels
- 7.1 channels
- Product colour
- Multicolour
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- AMD
- Windows operating systems supported
- Windows 10 x64
Expansion slots
- PCI Express x16 (Gen 3.x) slots
- 4
- Number of M.2 (M) slots
- 2
- 1st M.2 largest key size
- 2242
- 2nd M.2 largest key size
- 2260
- 3rd M.2 largest key size
- 2280
- 4th M.2 largest key size
- 22110
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
Weight & dimensions
- Width
- 305 mm
- Depth
- 244 mm
