ASUSMotherboards

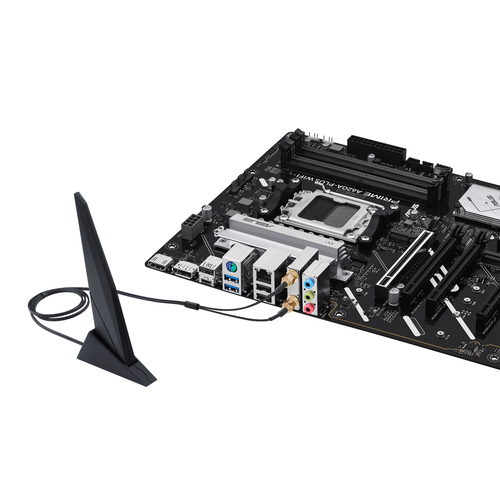

PRIME A620APLUS WIFI AMD ATX motherboard, 8+2+1 power stages, DDR5, PCIe 4.0 ready, PCIe 4.0 x16
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD A620A 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
- BIOS type: UEFI AMI 256 Mbit
- Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620A-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
- Processor manufacturer
- AMD
- Processor socket
- Socket AM5
- Compatible processor series
- AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets
- Socket AM5
Memory
- Supported memory types
- DDR5-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- ECC & Non-ECC
- Supported memory clock speed (max)
- 7600 MHz
- Maximum internal memory
- 256 GB
- Unbuffered memory
- Yes
- Maximum internal memory per slot
- 64 GB
Storage controllers
- Supported storage drive types
- HDD & SSD
- Supported storage drive interfaces
- M.2, SATA III
- Number of HDDs supported
- 4
- Number of storage drives supported
- 6
- RAID support
- Yes
- RAID levels
- 0, 1, 5, 10
Graphics
- Parallel processing technology support
- Not supported
- Maximum resolution
- 7680 x 4320 pixels
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of SATA III connectors
- 4
- S/PDIF out connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- ATX Power connector (24-pin)
- Yes
- CPU fan connector
- Yes
- Number of CPU fan connectors
- 1
- Number of chassis fan connectors
- 3
- Chassis intrusion connector
- Yes
- EPS power connector (8-pin)
- Yes
- Number of EPS power connectors (8-pin)
- 1
- Number of COM connectors
- 1
- TPM connector
- Yes
- 12V power connector
- Yes
- Number of water pump connectors
- 1
- RGB LED pin header
- Yes
- Number of RGB LED pin headers
- 3
Rear panel I/O ports
- USB 2.0 ports quantity
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- PS/2 ports quantity
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- DisplayPorts quantity
- 1
- DisplayPort version
- 1.4
- Headphone outputs
- 1
- Microphone in
- Yes
- WiFi-AP antenna jack
- 2
Network
- Ethernet LAN
- Yes
- Ethernet interface type
- Gigabit Ethernet
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- Bluetooth
- Yes
- Bluetooth version
- 5.3
Features
- Motherboard chipset
- AMD A620A
- Audio output channels
- 7.1 channels
- Product colour
- Black
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- AMD
- Cooling type
- Passive
- Power source type
- ATX
- Windows operating systems supported
- Windows 10 x64, Windows 11
Expansion slots
- PCI Express x16 (Gen 3.x) slots
- 4
- PCI Express x16 (Gen 4.x) slots
- 1
- Number of M.2 (M) slots
- 2
- 1st M.2 largest key size
- 2280
- 1st M.2 highest PCI Express generation
- 4.0
- 2nd M.2 largest key size
- 22110
- 2nd M.2 highest PCI Express generation
- 3.0
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 256 Mbit
Packaging data
- Package width
- 338 mm
- Package depth
- 273 mm
- Package height
- 68 mm
- Package weight
- 1.25 kg
Weight & dimensions
- Width
- 305 mm
- Depth
- 244 mm
- Height
- 40 mm
Packaging content
- Cables included
- SATA
- Antenna included
- Yes
- Screws included
- Yes
Other features
- Weight
- 830 g
