Home/Catalogue/ASUS/PN54-S1-SYS515PETL0
Drag to turn · 14 views
ASUSPCs/Workstations

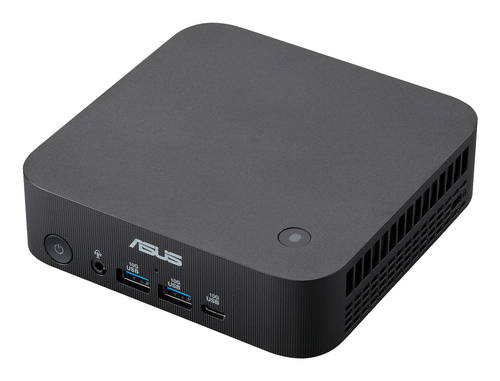

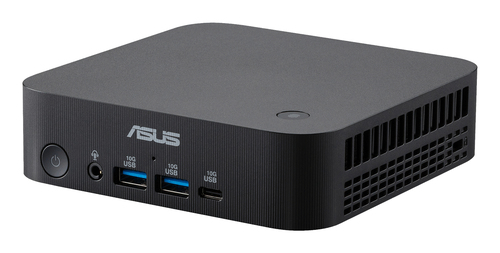

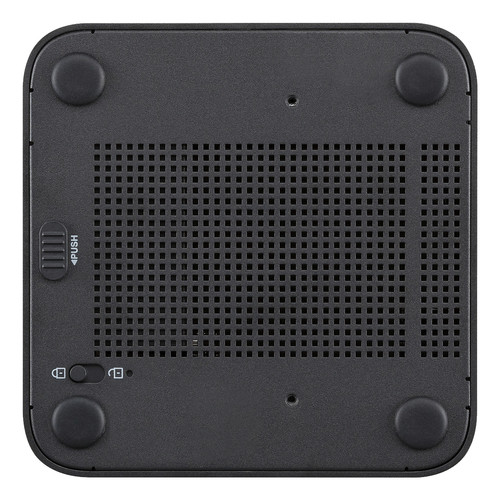

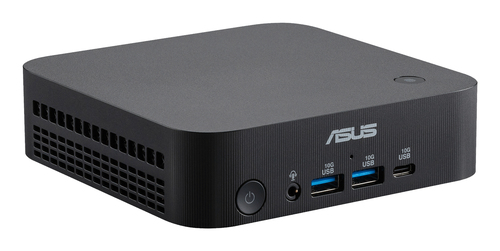

ExpertCenter PN54S1 Full System Mini PC with AMD RyzenTM 5 220 Processor, AMD RadeonTM 740M
- Windows 11 Pro 64-bit
- AMD Ryzen 5 220 (3.2GHz)
- 16GB (5600MHz) DDR5-SDRAM & 512GB SSD
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
ASUS ExpertCenter PN54-S1 Mini PC
01
Trusted Performance, Energy Efficient
ASUS ExpertCenter PN54-S1 Mini PC strikes the perfect balance of performance and energy efficiency. Featuring AMD Ryzen™ 200 Series processors , it delivers robust performance with quad 4K display support, 6 USB ports, and Wi-Fi 7 for seamless everyday computing
Specifications
Processor
- Processor manufacturer
- AMD
- Processor family
- AMD Ryzen™ 5
- Processor generation
- AMD Ryzen 200 Series
- Processor model
- 220
- Processor cores
- 6
- Processor threads
- 12
- Processor boost frequency
- 4.9 GHz
- Processor frequency
- 3.2 GHz
- L2 cache
- 6 MB
- L3 cache
- 16 MB
- Processor cache type
- L2 & L3
Memory
- Internal memory
- 16 GB
- Maximum internal memory
- 64 GB
- Internal memory type
- DDR5-SDRAM
- Memory layout (slots x size)
- 1 x 16 GB
- Memory clock speed
- 5600 MHz
Storage
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Optical drive type
- No
- Total SSDs capacity
- 512 GB
- Number of SSDs installed
- 1
- SSD capacity
- 512 GB
- SSD interface
- PCI Express 4.0
- NVMe
- Yes
- SSD form factor
- M.2
Graphics
- Discrete graphics card
- No
- On-board graphics card
- Yes
- Discrete graphics card model
- Not available
- On-board GPU manufacturer
- AMD
- On-board graphics card family
- AMD Radeon
- On-board graphics card model
- AMD Radeon 740M
Performance
- Product type
- Mini PC
Network
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000,2500 Mbit/s
- Wi-Fi
- Yes
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- Bluetooth
- Yes
- Bluetooth version
- 5.4
Ports & interfaces
- USB 2.0 ports quantity
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- USB4 Gen 3x2 ports quantity
- 1
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Ethernet LAN (RJ-45) ports
- 2
- Combo headphone/mic port
- Yes
- DC-in jack
- Yes
Power
- Power supply
- 120 W
Design
- Chassis type
- Mini PC
- Colour name
- Black
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- Product colour
- Black
Software
- Operating system architecture
- 64-bit
- Operating system installed
- Windows 11 Pro
Display
- Display included
- No
Weight & dimensions
- Width
- 130 mm
- Depth
- 130 mm
- Height
- 34 mm
- Weight
- 550 g
